Description

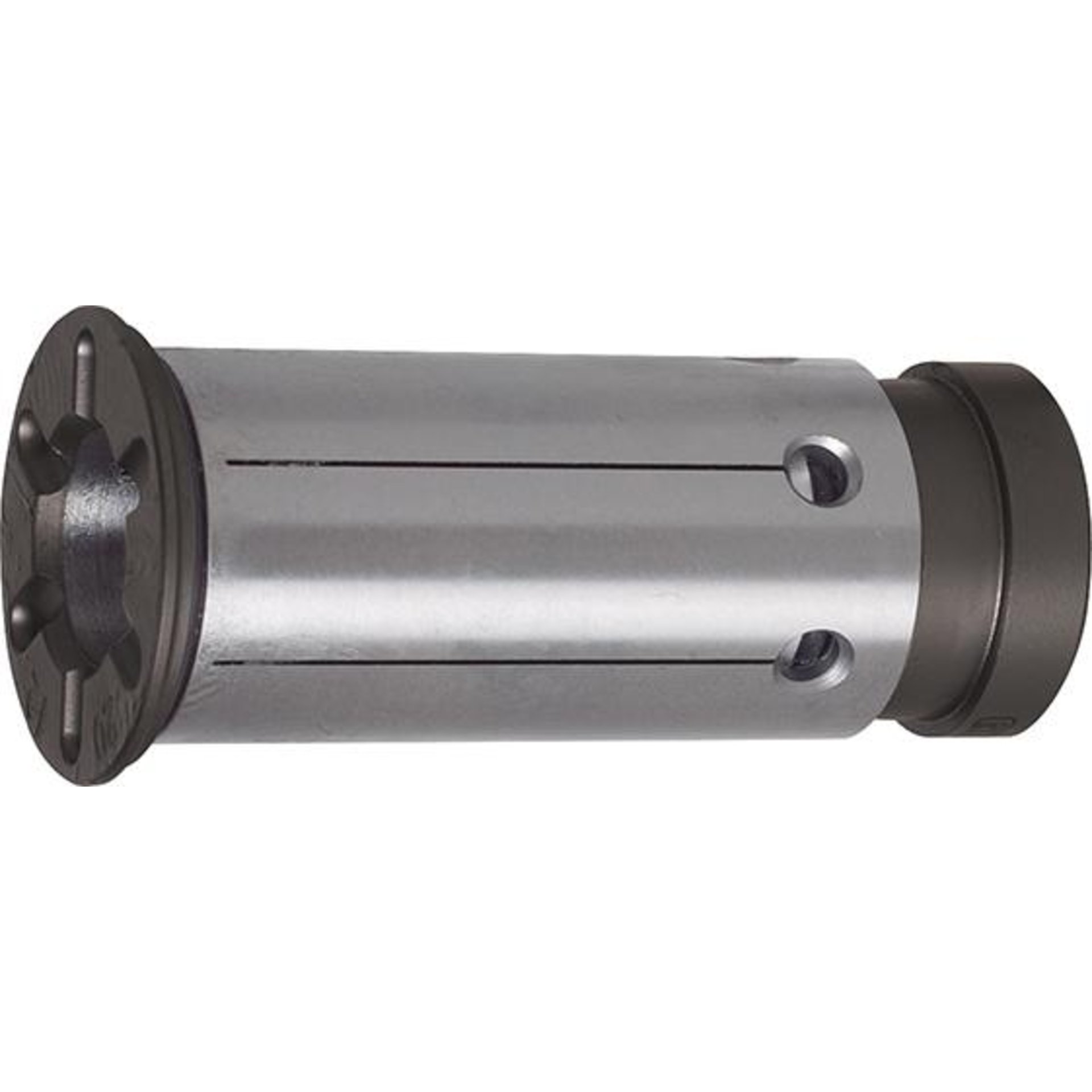

Ausführung: Spann-Ø für Werkzeugschafttoleranz h6, Stirnseite geschlossen, dadurch kühlmitteldicht bis 80 bar, Rundlaufgenauigkeit ≤ 2 μm mit verstellbarem Anschlag.
Anwendung: Zur Spannung kleinerer Schaft-Ø im Hydraulik - Dehnspannfutter, bei Verwendung von Reduzierbuchsen kann das zulässig übertragbare Drehmoment um ca. 25 % gesteigert werden gegenüber der Direktspannung.
Hersteller: Gühring KG, Herderstr. 50-54, 72458 Albstadt, DE, +497431170, info@guehring.de
Features
| Breite | 2.000 mm |
|---|---|
| Code-Nr. | 10.020 |

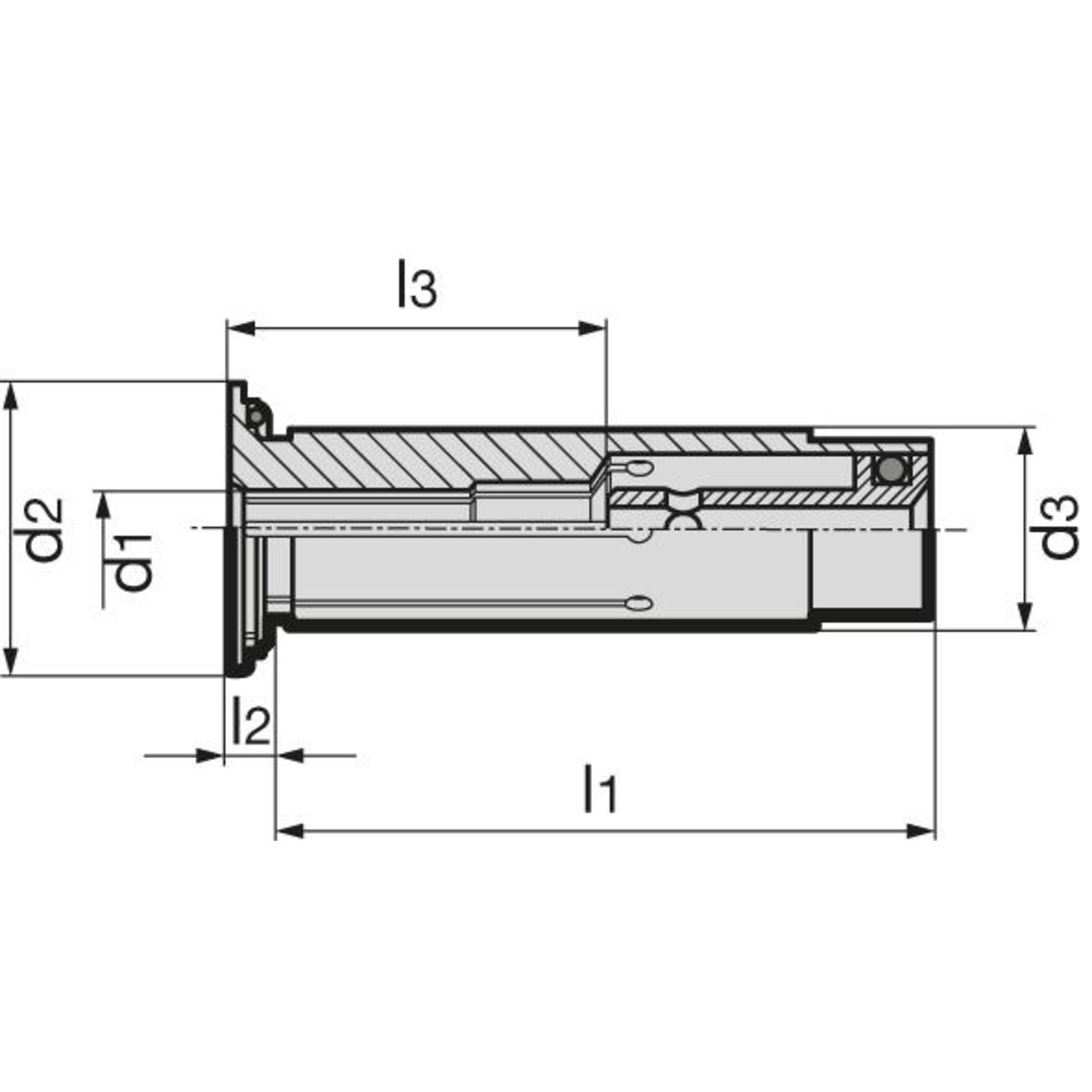

| d1 | 10 mm |
| D1 |
|
| d3 | 20 mm |
| D3 |
|
| Herstellername | Gühring KG |
| l | 52,5 mm |
| l1 | 50,5 mm |
| L1 |
|
| l2 | 2 mm |
| L2 |
|
| l3 | 42,5 mm |
| L3 |
|
| Länge Auskrag | 2.000 mm |
| Marke | GÜHRING |
| Markenname | GÜHRING |
| Ø- Innen | 10.000 mm |
| Ø-Aussen | 24.100 mm |
| WGNr. | W322 |
| DIN/ EN/ ISO/ Art | Werksnorm |
| Ø-Schaft | 20.000 mm |
