Description

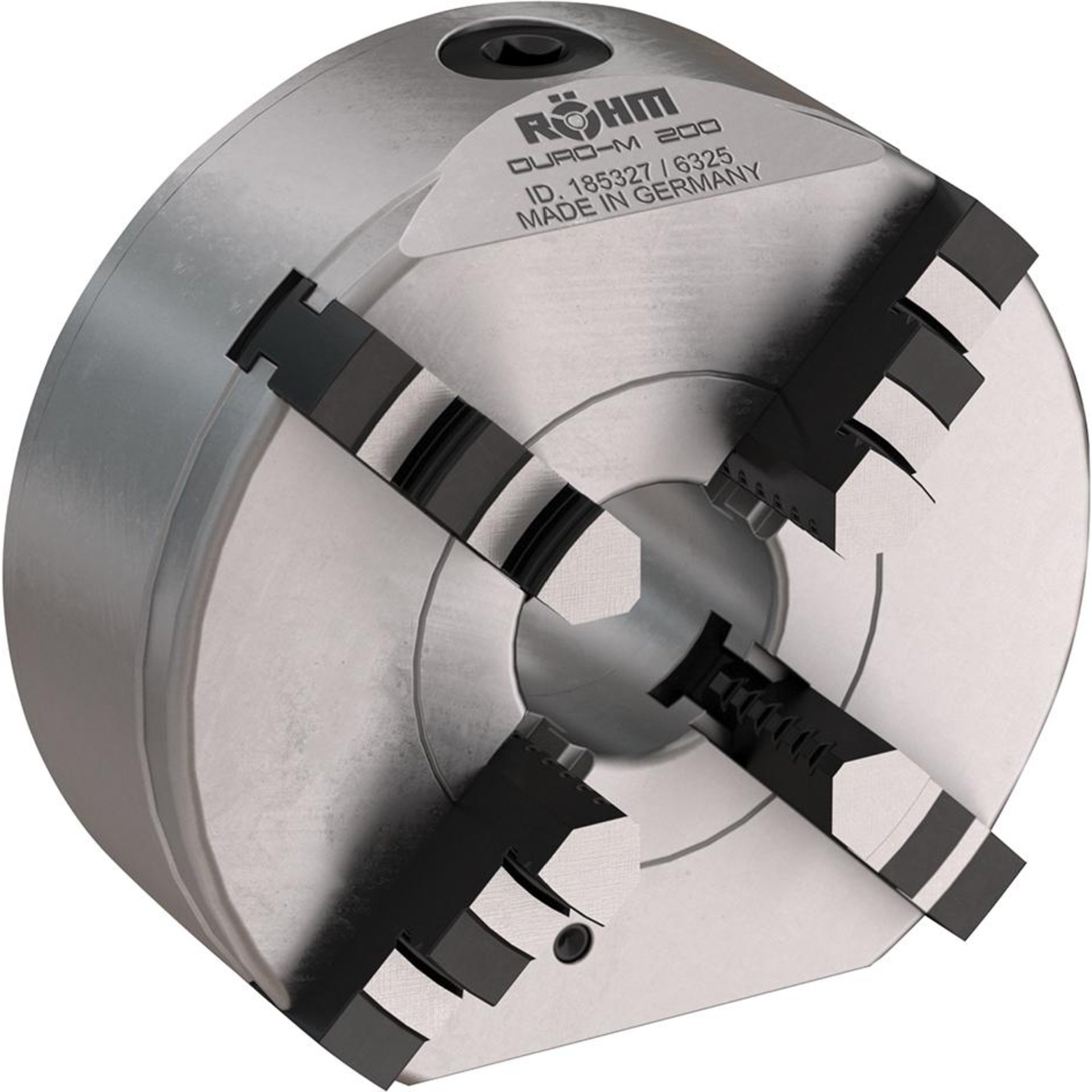

Ausführung: Bewährtes Drehfutter für den Einsatz in Bereichen, welche hohe Spannkräfte,hohe Rundlaufgenauigkeiten sowie verlässliche Dauer-Wiederholgenauigkeitenerfordern. Hohe Spannkraft. Besonders niedrige Bauweise für minimale Störkontur. Backen lassen sich durch Drehen am Schlüssel über den gesamten Spannbereich verstellen. Dies ermöglicht ein schnelles Spannen von Werkstücken mit unterschiedlichen Spanndurchmessern Backen im Futter auf Rundlauf ausgeschliffen.
Anwendung: Zum universellen Einsatz auf Drehmaschinen, Rundtischen, Teilapparaten usw.
Hersteller: Röhm GmbH, Heinrich-Röhm-Straße 50, 89567 Sontheim, DE, +497325160, info@roehm.com
Features

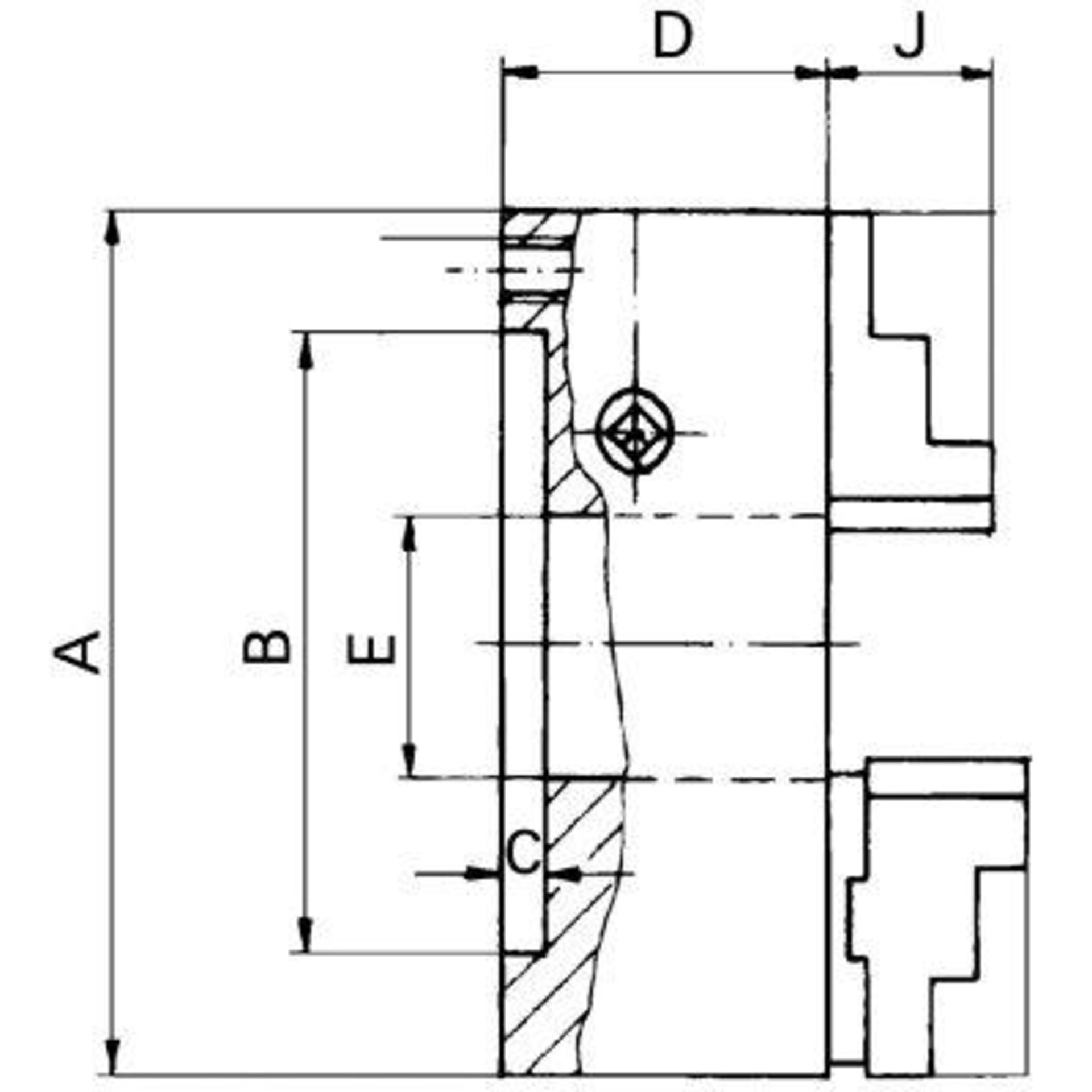

| Backenhöhe J | 43 mm |
|---|---|
| Durchgangbohrungs-Ø E | 136 mm |
| Größe A | 400 mm |
| Herstellername | Röhm GmbH |
| Höhe ohne Backen D | 105 mm |
| Markenname | Röhm |
| max. Drehzahl | 1800 min-1 |
| Rundlaufgenauigkeit | 0,06 mm |
| WGNr. | W308 |
| Zentrierbohrung B | 330 mm |
| Zentriertiefe C | 5 mm |
| Größe | 15.3/4 Zoll |
Manufacturer
Röhm GmbH Sontheim
Hausanschrift:
Heinrich-Röhm-Str. 50
89567 Sontheim
Tel.: +49 7325 16-0
Fax: +49 7325 16492
Email: info@roehm.biz
Safety regulations
General safety instructions
• All electrical connections must be made by an authorized electrician
• Machines may only be operated with functioning safety devices
• Only allow trained personnel to operate the machine
• Maintenance and repair work may only be carried out by trained personnel
• Never work under the influence of illnesses that impair concentration, medication, drugs or alcohol
• Machines must always be disconnected from the power supply before maintenance or repair work
• Wear tight-fitting clothing and remove all objects that could cause you to get caught in machines.
• Use original spare parts and accessories
• Keep body parts away from moving parts of the machines.
• In the event of a malfunction or unusual behavior, operation must be stopped immediately until the cause has been clarified and the error has been rectified.
• Avoid overloading machines. Always work within the permitted performance range (technical data)
• Always ensure that no one is in the danger areas of the machines.
• Before using the machines, make sure that the safety devices are working properly
• Read the operating instructions and familiarize yourself with the safety devices.
• Keep the work area clean and tidy to minimize sources of danger
• Do not make any changes to machines
• Wear hearing protection to protect your hearing
• Wear appropriate safety gloves when handling chemicals or sharp objects
• Wear appropriate safety shoes to protect your feet
• Wear appropriate safety clothing
• Always observe and follow all safety instructions that are attached to the product or included with the product.
