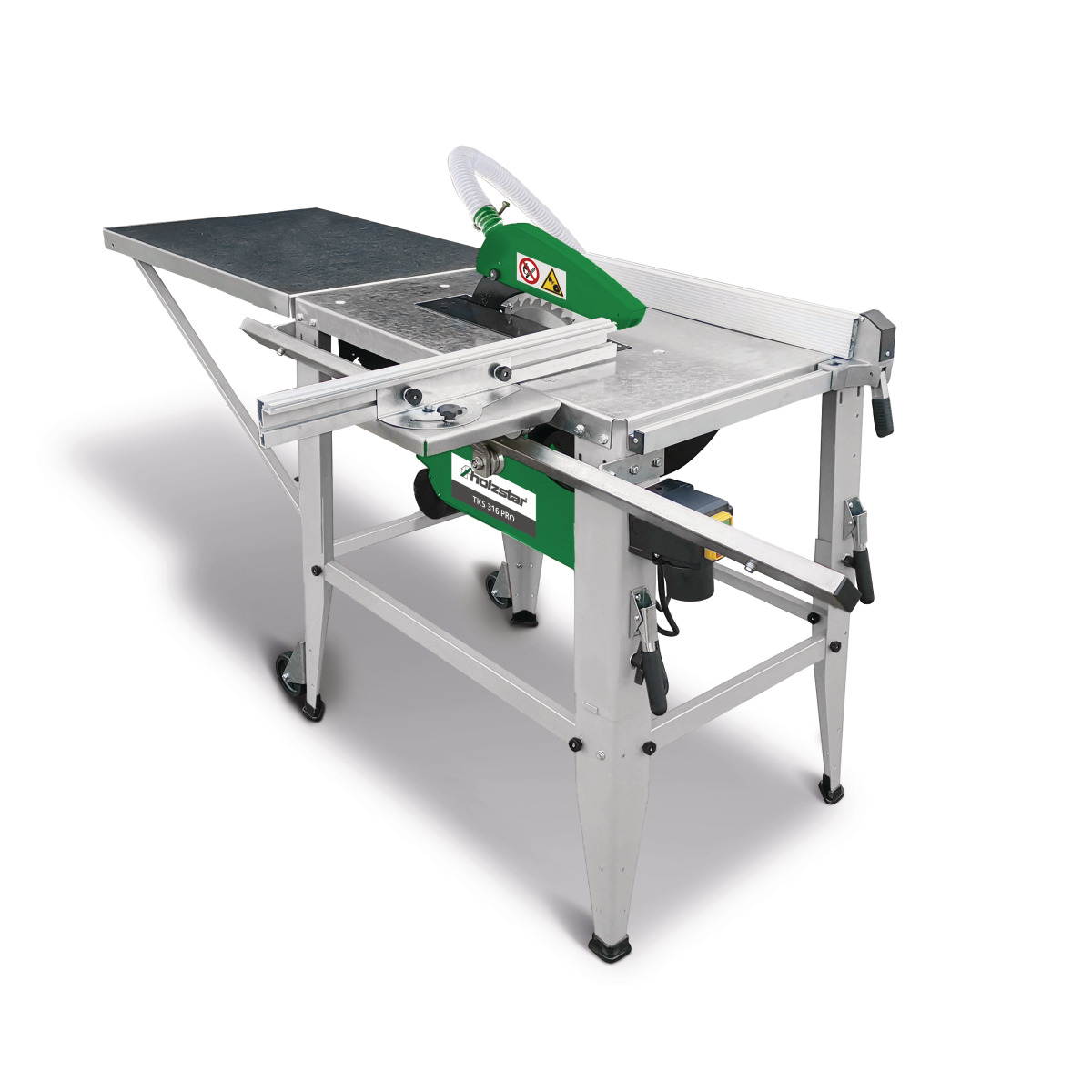

Description

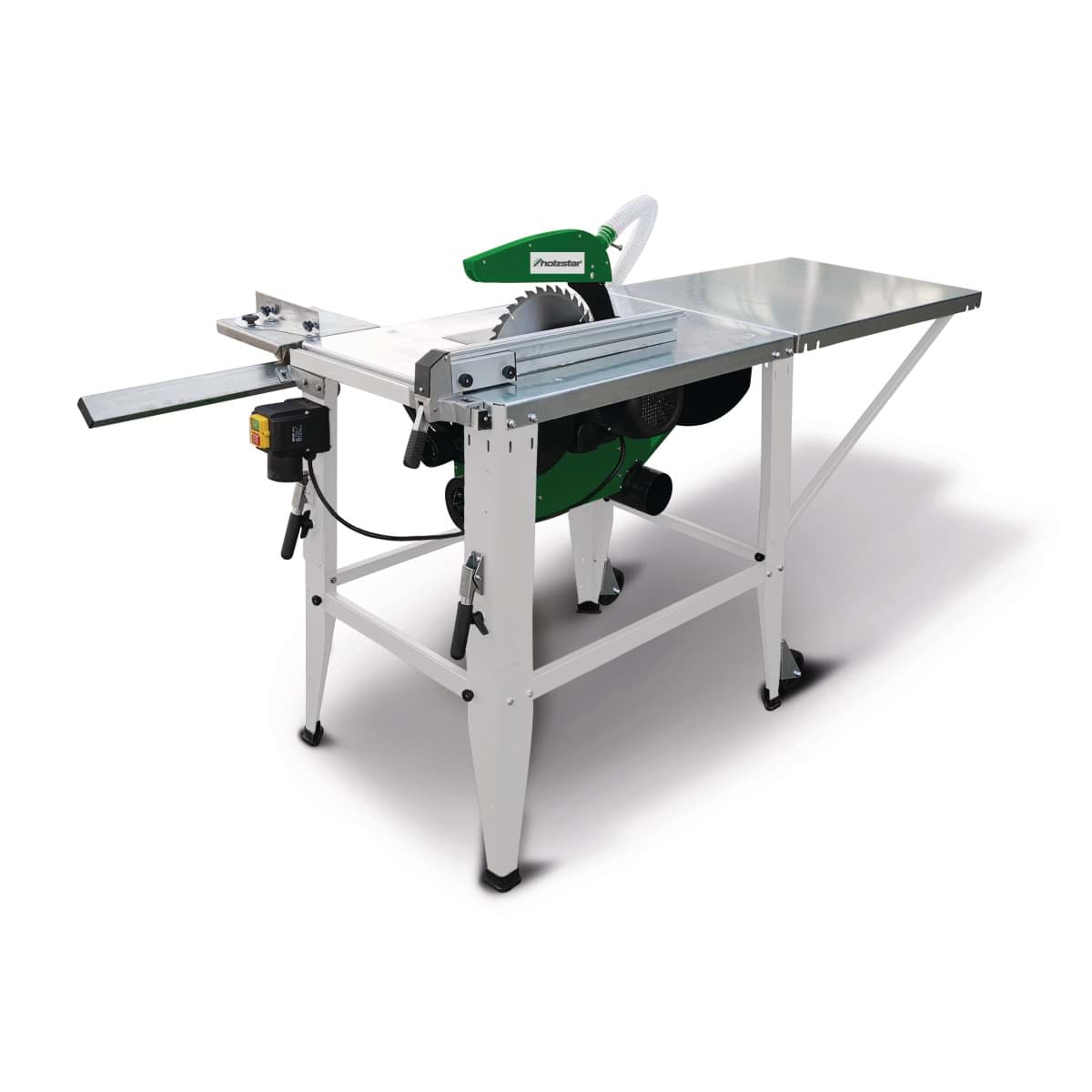

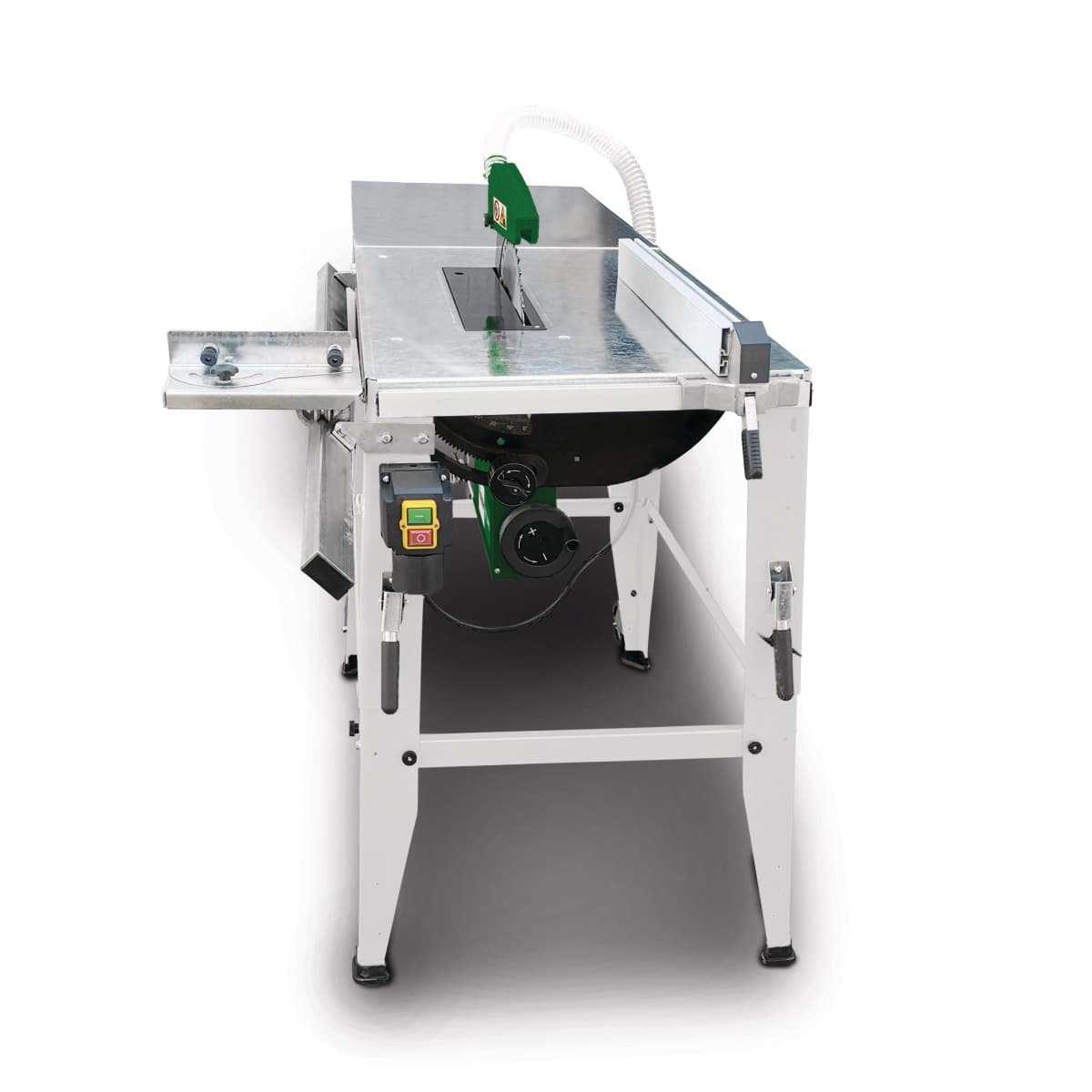

- Großer Maschinentisch aus verzinktem Stahl

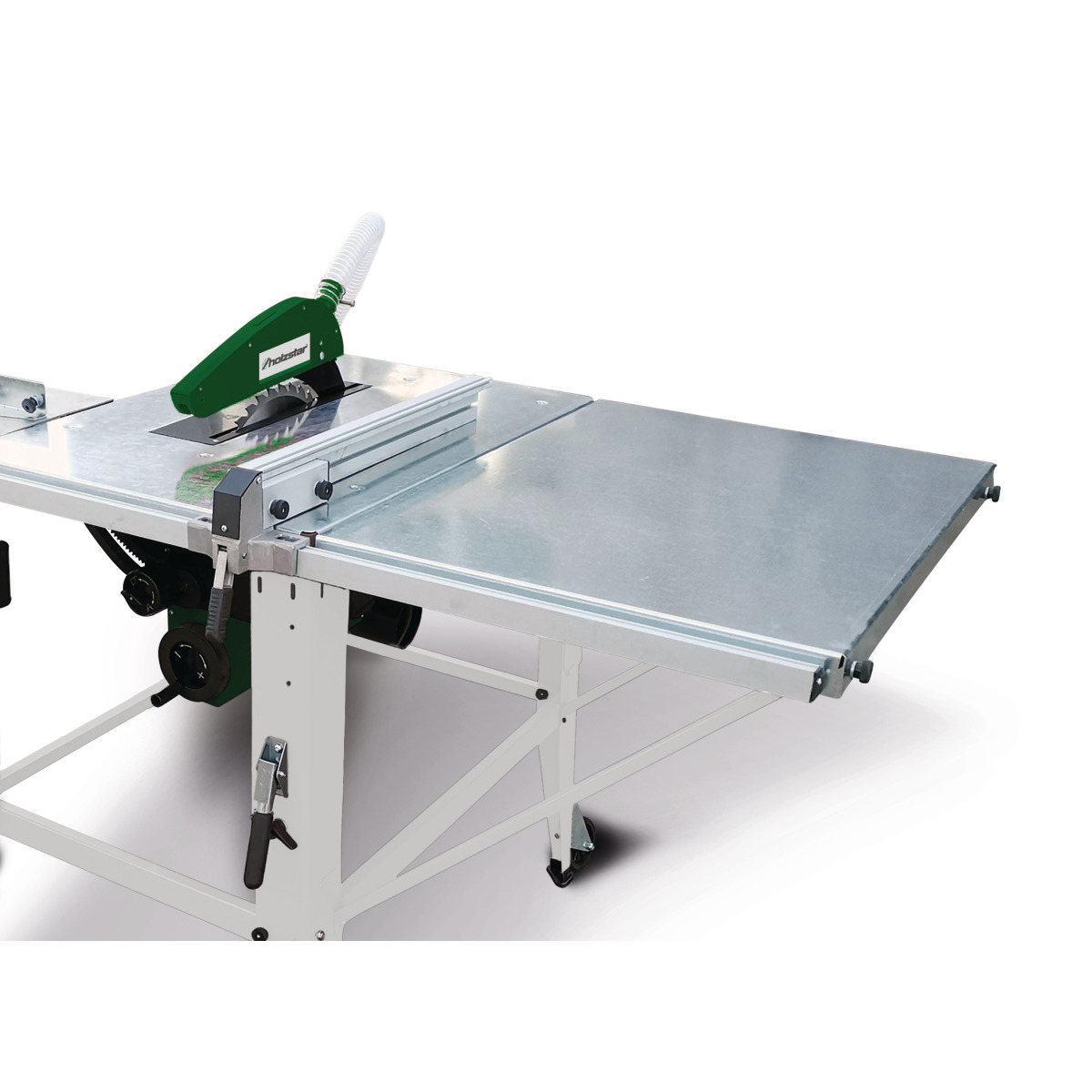

- Serienmäßige Tischverlängerung kann auch als Tischverbreiterung rechts montiert werden

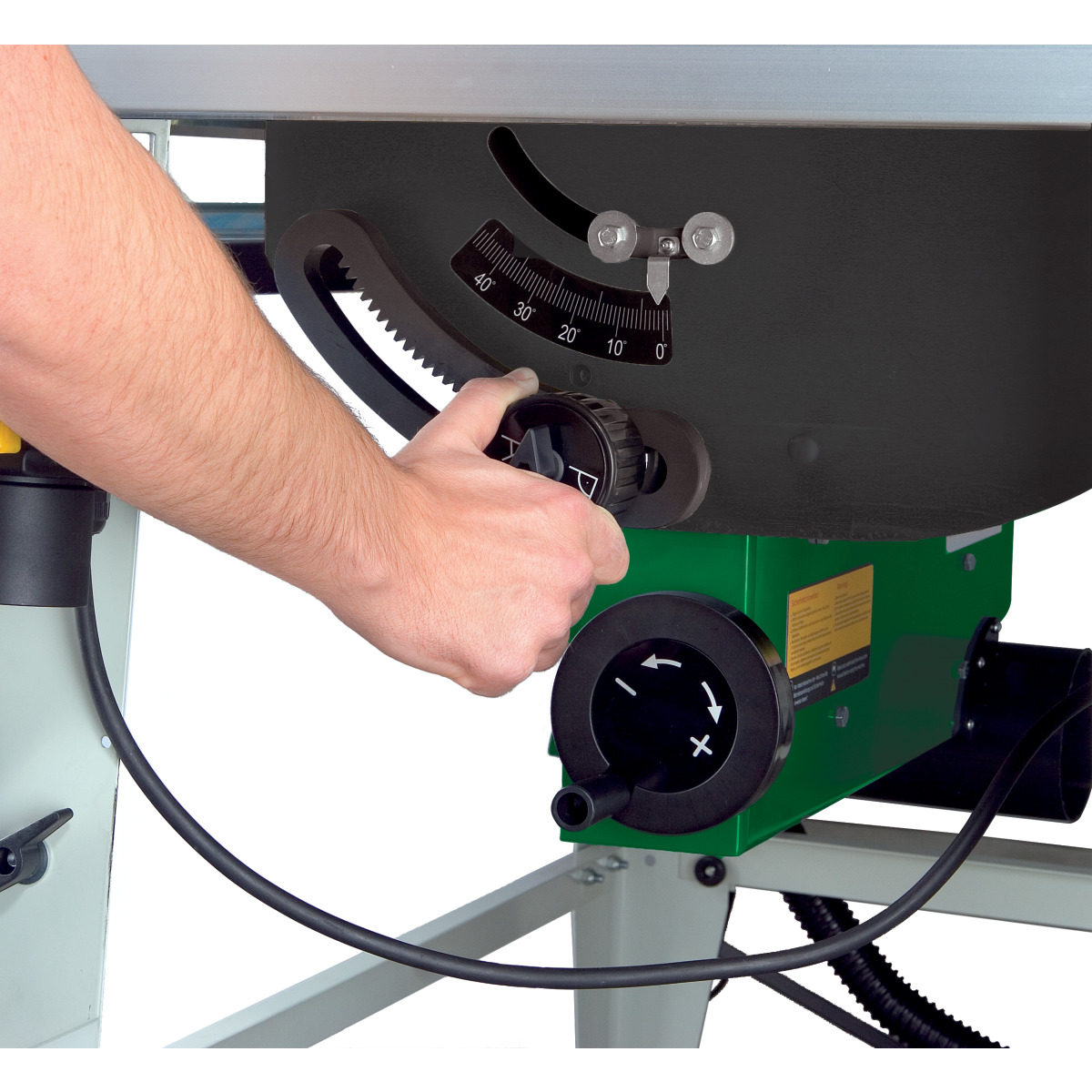

- Präzise Sägeblattschwenkung über Handrad mit Skala
- Sägeblatthöhe über gut erreichbares Handrad verstellbar
- Präzise Schnitte durch stabile, zweifache Aufhängung des Sägeaggregats

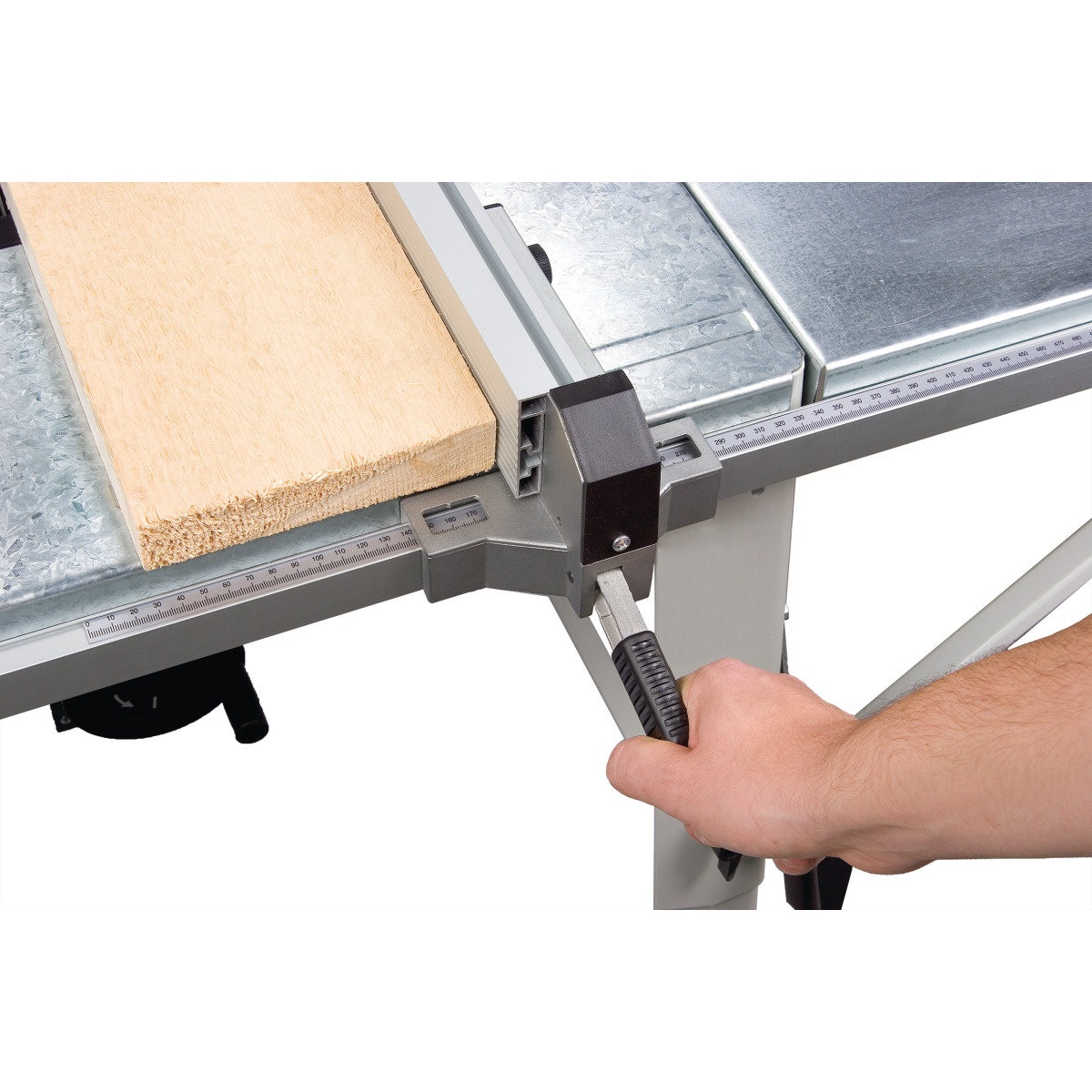

- Parallelanschlag ermöglicht das Besäumen von Brettern, Auftrennschnitte, Fasen- und Winkelschnitte
- Leicht verfahrbar durch integriertes Fahrwerk und klappbare Transportgriffe
- Für den einfachen Transport oder die platzsparende Lagerung Tischfüße werkzeuglos einklappbar
- Fahrwerk
- Schiebeschlitten

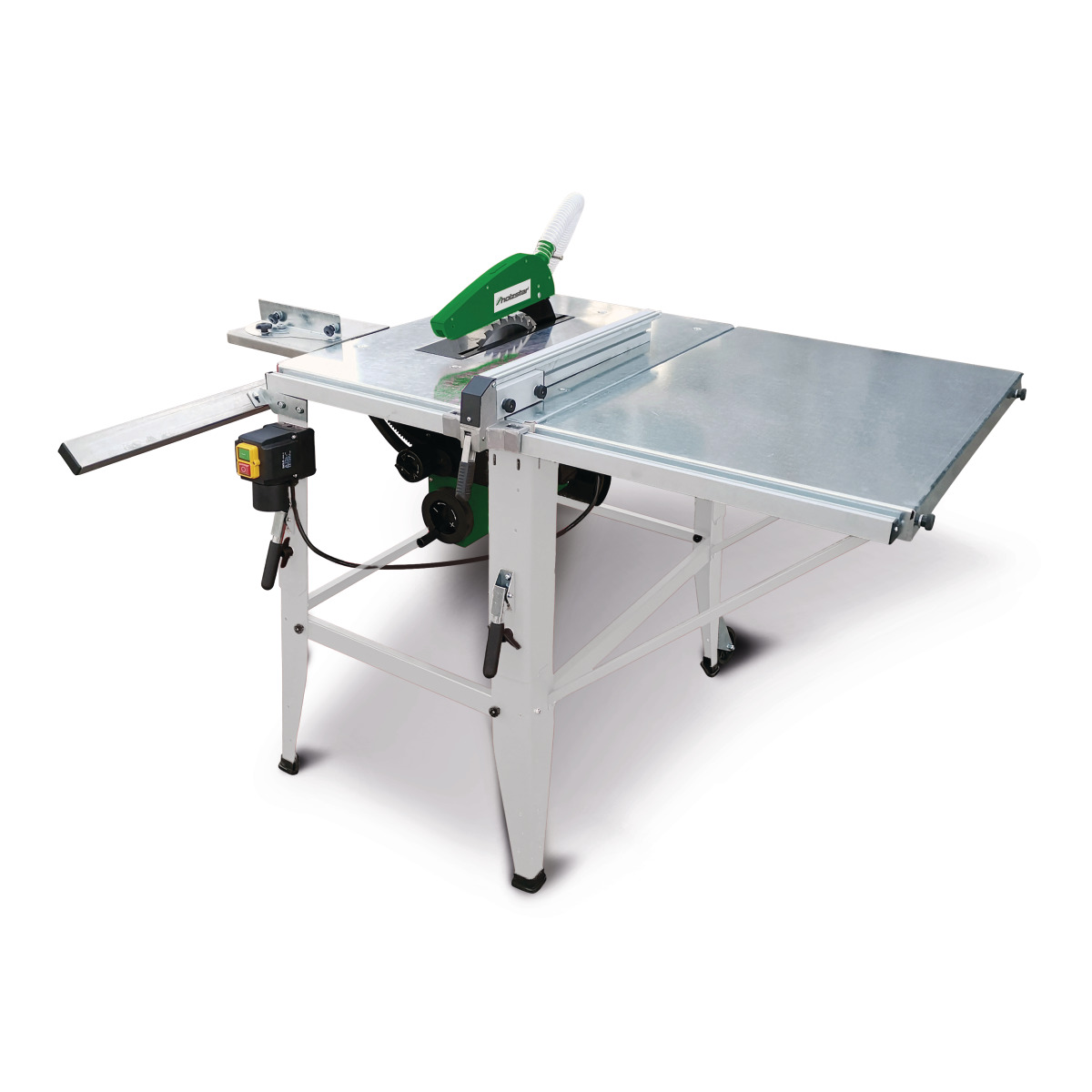

- Tischverlängerung/-breiterung, 800 x 550 mm
- Parallelanschlag
- HM-Sägeblatt Ø 315 mm / 36 Z
- Sägeblattschutzhaube mit Absaugschlauch

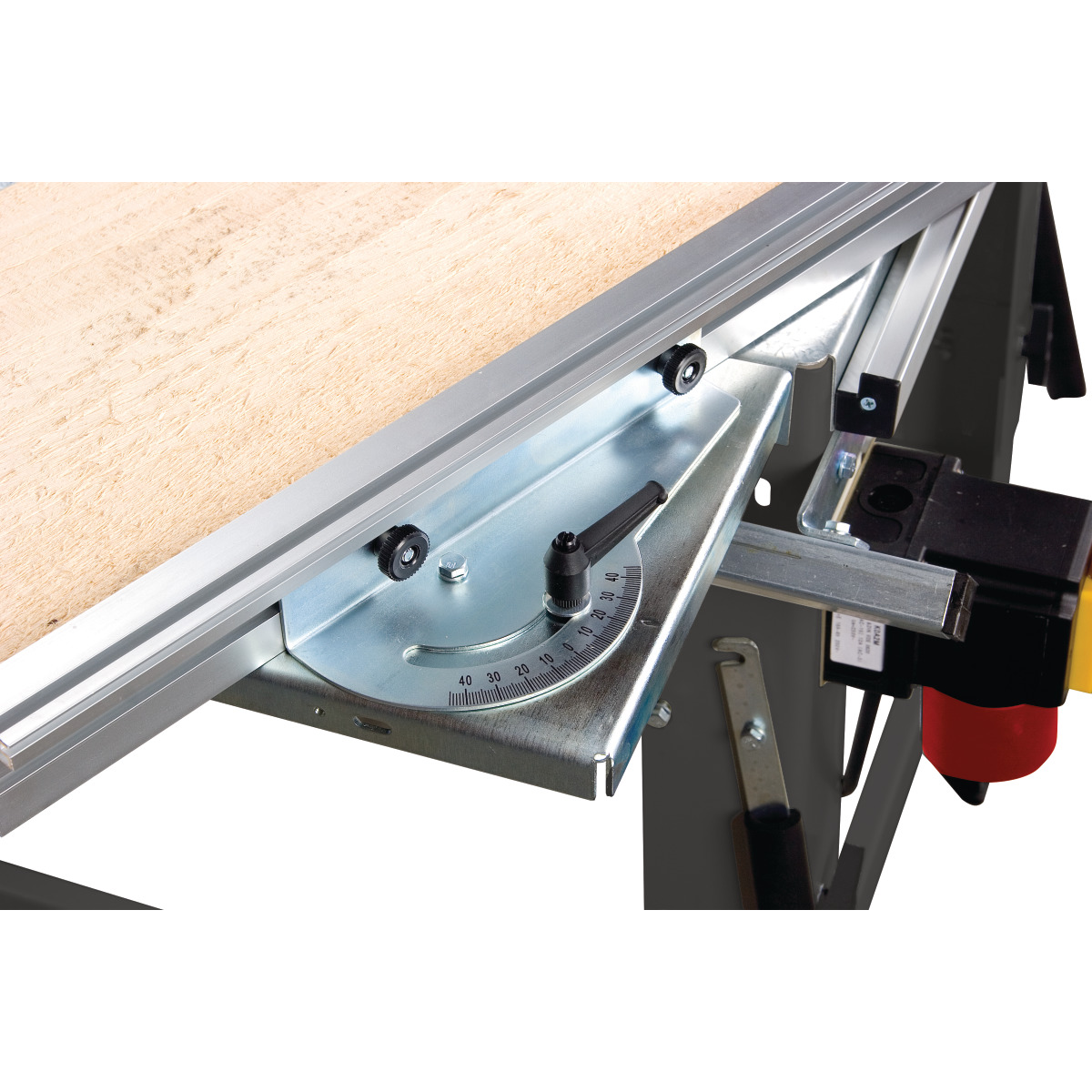

- Gehrungsanschlag ohne Aluprofil (Profil als Zubehör erhältlich)
Features
| Abgabeleistung | 2,1 kW |
|---|---|
| Absaugstutzendurchmesser | 100 mm |
| Absaugstutzendurchmesser Sägeblattschutz | 30 mm |
| Anschlussspannung | 400 V |
| Aufnahmeleistung | 2,8 kW |
| Breite/Tiefe (Produkt) ca. | 1250 mm |
| Drehzahl (Haupt-)Sägeblatt | 2800 min-1 |
| Drehzahl Sägeblatt | 2800 min¯¹ |
| Durchmesser (Haupt-)Sägeblatt | 315 mm |
| Durchmesser Sägeblatt | 315 mm |
| Gesamt Anschlußwert |
|
| Gewicht | 60 kg |
| Gewicht (netto) ca. | 60 kg |
| Höhe (Produkt) ca. | 1000 mm |
| Länge (Produkt) ca. | 1350 mm |
| Länge/Breite/Höhe | 1350/1250/1000 mm |
| max. Ablängbreite links vom Sägeblatt |
|
| Max. Schnitthöhe -45° | 50 mm |
| Max. Schnitthöhe 90° | 90 mm |
| Motor Drehzahl | 2800 min-1 |
| Netzfrequenz | 50 Hz |
| Phase(n) | 3 Ph |
| Sägeblattneigung | 90 - 45° |
| Schnittbreite mit Parallelanschlag | 200 mm |
| Stromart | AC |
| Tischbreite | 550 mm |
| Tischhöhe | 850 mm |
| Tischlänge | 800 mm |
Ersatzteile
Zubehör
bestehend aus
Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26
96103 Hallstadt
0951/96555-0
www.stuermer-maschinen.de
info@stuermer-maschinen.de
Safety regulations
General safety instructions
• All electrical connections must be made by an authorized electrician
• Machines may only be operated with functioning safety devices
• Only allow trained personnel to operate the machine
• Maintenance and repair work may only be carried out by trained personnel
• Never work under the influence of illnesses that impair concentration, medication, drugs or alcohol
• Machines must always be disconnected from the power supply before maintenance or repair work
• Wear tight-fitting clothing and remove all objects that could cause you to get caught in machines.
• Use original spare parts and accessories
• Keep body parts away from moving parts of the machines.
• In the event of a malfunction or unusual behavior, operation must be stopped immediately until the cause has been clarified and the error has been rectified.
• Avoid overloading machines. Always work within the permitted performance range (technical data)
• Always ensure that no one is in the danger areas of the machines.
• Before using the machines, make sure that the safety devices are working properly
• Read the operating instructions and familiarize yourself with the safety devices.
• Keep the work area clean and tidy to minimize sources of danger
• Do not make any changes to machines
• Wear hearing protection to protect your hearing
• Wear appropriate safety gloves when handling chemicals or sharp objects
• Wear appropriate safety shoes to protect your feet
• Wear appropriate safety clothing
• Always observe and follow all safety instructions that are attached to the product or included with the product.
