Spiralbohrer SL WN VHM FIRE Innenkühlung Schaft HE 7xD 16,50mm GÜHRING

Gühring KG

Spiralbohrer SL WN VHM FIRE Innenkühlung Schaft HE 7xD 16,50mm GÜHRING

SKU	12271650
GTIN	4031093605144
MPN	4031093605144
Weight	0.47 kg
Width	0.03 m
Length	0.23 m
Height	0.03 m

544,58 €

Ø d1 = m7 16,5

Das Kühlmittel kommt direkt an die Schneiden und spült die Späne aus der Bohrung
Stahl kleiner 700 N/mm²: 130
Stahl kleiner 1000 N/mm²: 120
Stahl kleiner 1400 N/mm²: 105
Gehärteter Stahl kleiner 55 HRC: 55

incl. VAT plus shipping

Delivery time: 1-3 Werktage

Stück

Description

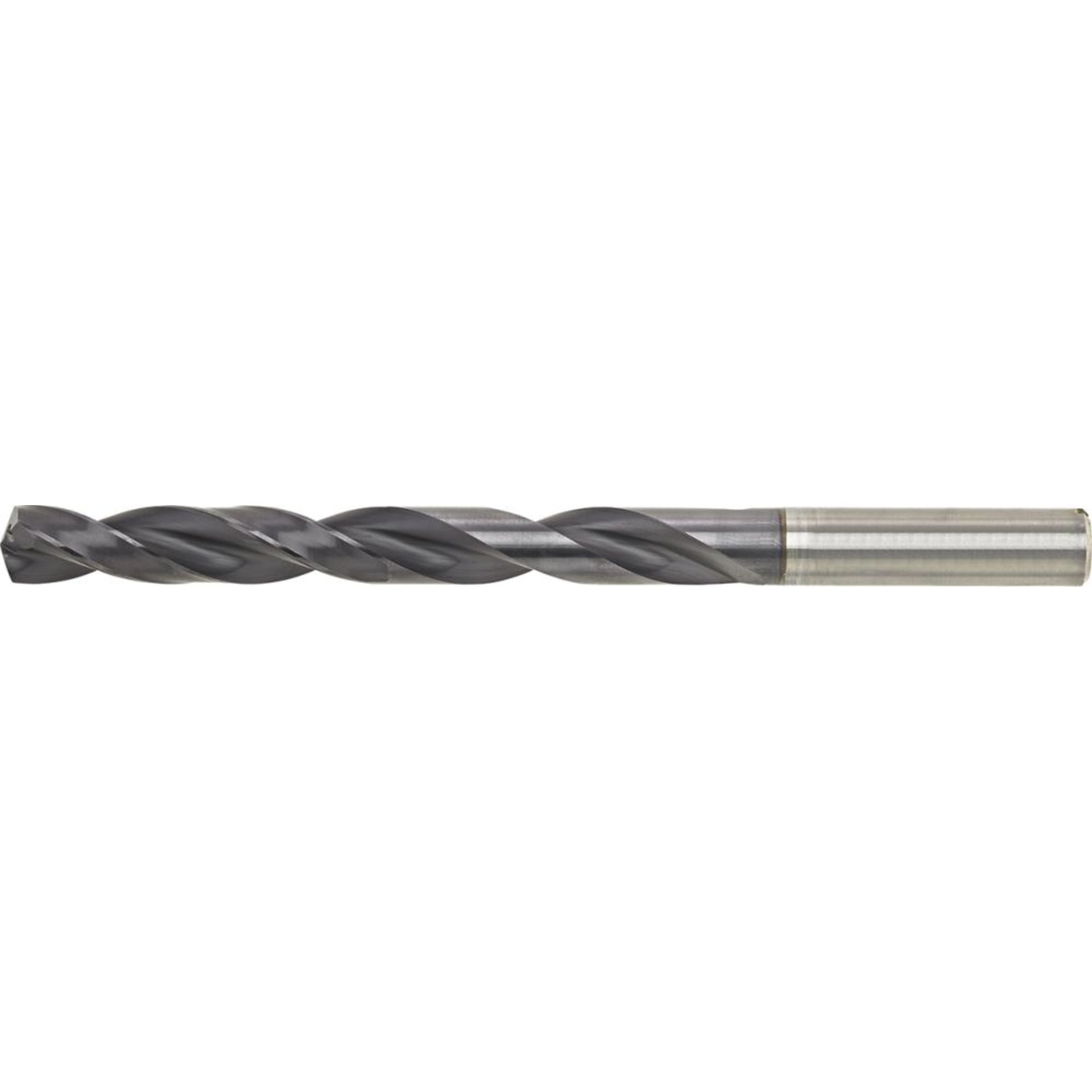

VHM-Spiralbohrer mit zyl. Schaft

Mit verdrallter Innenkühlung durch die Stege. Das Kühlmittel kommt direkt an die Schneiden und spült die Späne aus der Bohrung.
Hersteller: Gühring KG, Herderstr. 50-54, 72458 Albstadt, DE, +497431170, info@guehring.de

Features

Features

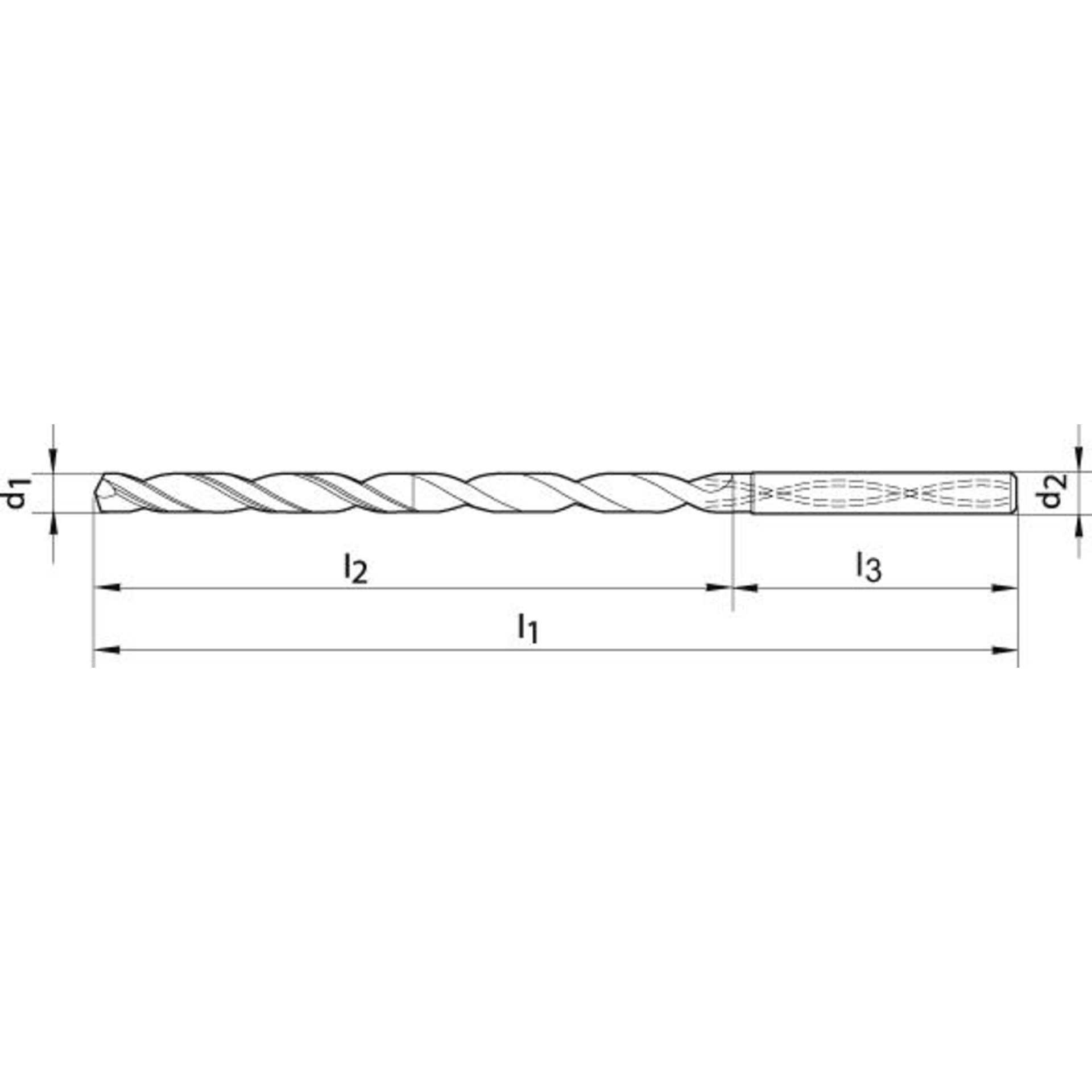

Ø d1 = m7	16,5 mm
Spirallänge l2	171 mm
Schaftlänge l3	48 mm
Gesamtlänge l1	223 mm
Schaft-Ø d2 = h6	18 mm
Stahl kleiner 1000 N/mm² f	0,4 mm/U
Stahl kleiner 700 N/mm²	130
Stahl kleiner 1000 N/mm²	120
Stahl kleiner 1400 N/mm²	105
INOX ferrit./martens.	60
INOX austenitisch	55
INOX duplex	45
Guss GG/GTS	180
Guss GGG	144
Titan größer 850 N/mm²	40
Alu kleiner 8% Si	260
Alu größer 8% Si	220
Kupfer Cu-Leg.	325
Gehärteter Stahl kleiner 55 HRC	55
Beschichtung	Fire

Manufacturer

Gühring KG
Herderstr. 50-54
72458 Albstadt
07431/17-647
www.guehring.de
info@guehring.de
