Description

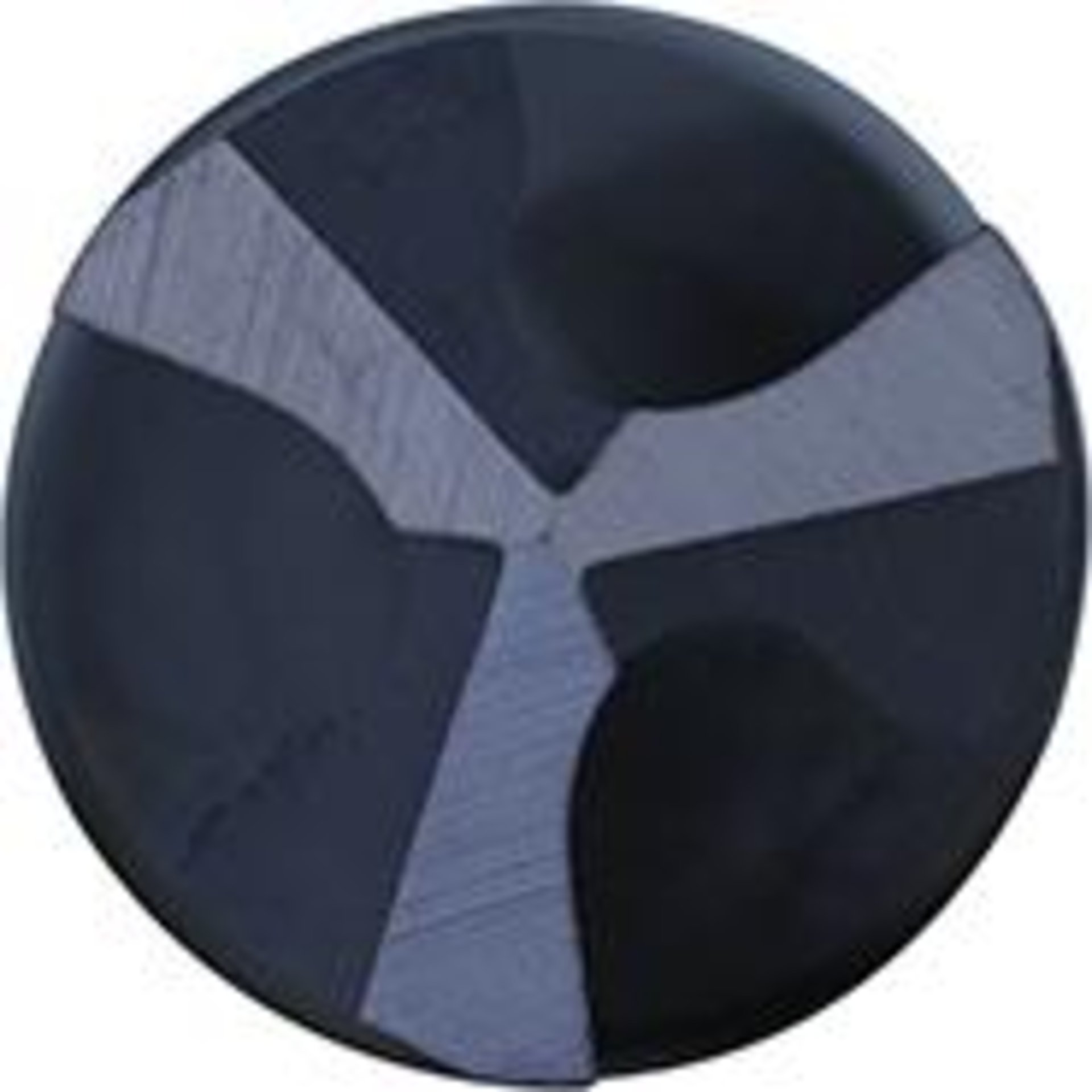

Ausführung: Spezielle Bohrspitze für optimale Stabilität beim Anbohren, verhindert Wegrutschen des Bohrers. Pilotieren oder Ankörnen entfällt durch die spezielle Spitzengeometrie. Kein Einhaken des Bohrers beim Aufbohren von vorhandenen Bohrungslöchern.
Anwendung: Es können Bohrungsqualitäten von IT9 realisiert werden. Höhere Vorschübe im Vergleich zu zweischneidigen Werkzeugen.
Hersteller: Gühring KG, Herderstr. 50-54, 72458 Albstadt, DE, +497431170, info@guehring.de
Features
| Ø h8 | 7,2 mm |
|---|---|
| Spirallänge | 69 mm |
| Gesamtlänge | 109 mm |
| Stahl kleiner 700 N/mm² f | 0,1 mm/U |
| Stahl kleiner 700 N/mm² | 40 |
| Stahl kleiner 1000 N/mm² | 35 |
| Stahl kleiner 1400 N/mm² | 10 |
| INOX ferrit./martens. | 16 |
| INOX austenitisch | 12 |
| Guss GG/GTS | 44 |
| Guss GGG | 32 |
| Alu kleiner 8% Si | 66 |
| Alu größer 8% Si | 66 |
| Kupfer Cu-Leg. | 76 |
| Beschichtung | Fire |
Manufacturer
Gühring KG
Herderstr. 50-54
72458 Albstadt
07431/17-647
www.guehring.de
info@guehring.de
