Description

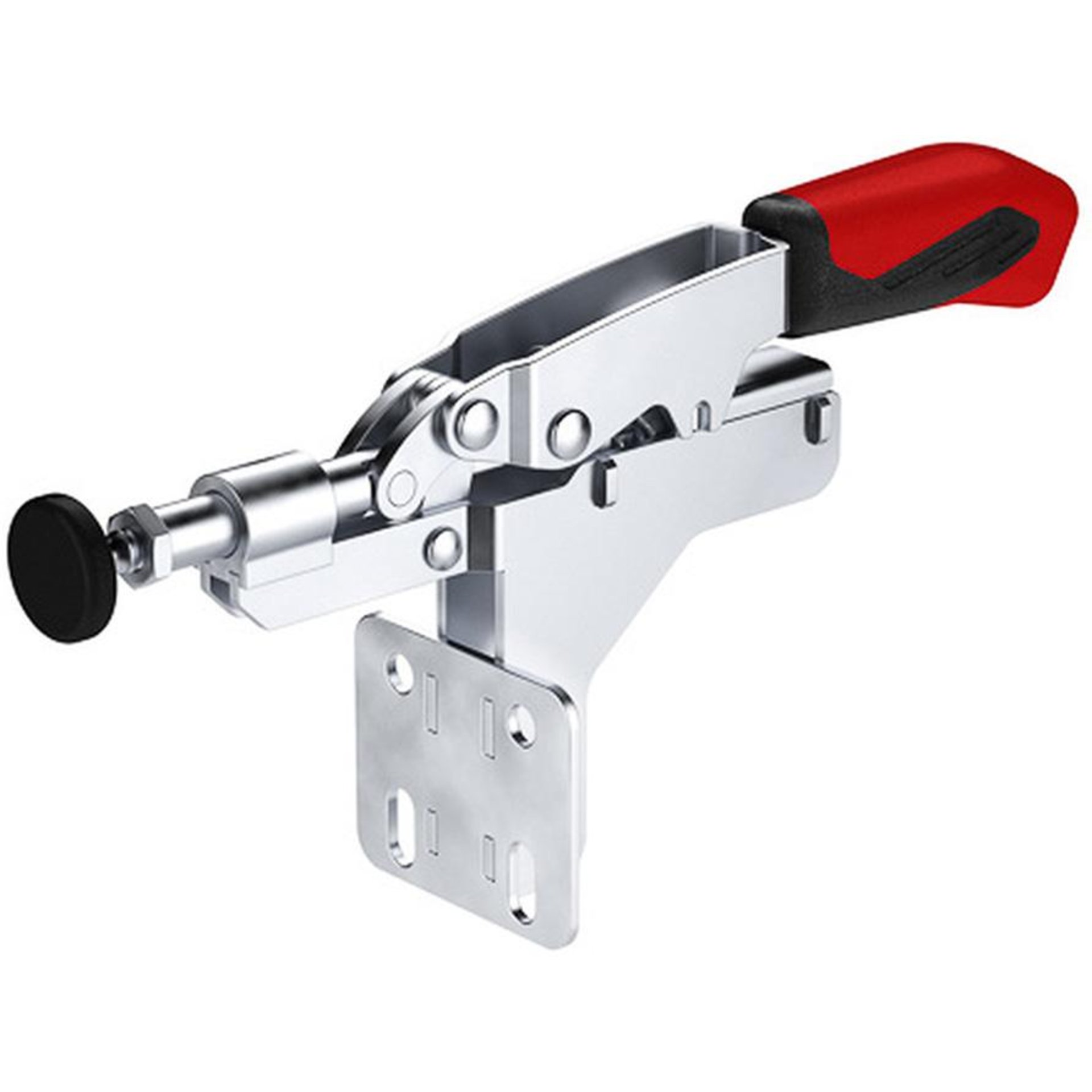

Ausführung: Schubstangenspanner mit offenem Haltearm und waagrechtem Fuß. Verzinkt und passiviert. Niete aus rostfreiem Stahl. Lagerstellen gefettet. Ergonomischer, ölbeständiger Handgriff mit großer Handauflage und weicher Komponente. Sicherheits-Spannstück mit Fingerschutz. Verliersicherung für die Andrückschraube am Spannarmende.
Anwendung: Zur seitlichen Montage.
Lieferumfang: Komplett mit vergüteter, verzinkter Andrückschraube.
Hersteller: Andreas Maier GmbH & Co KG, Waiblinger Str. 116, 70734 Fellbach, DE, +4971157660, amf@amf.de
Features

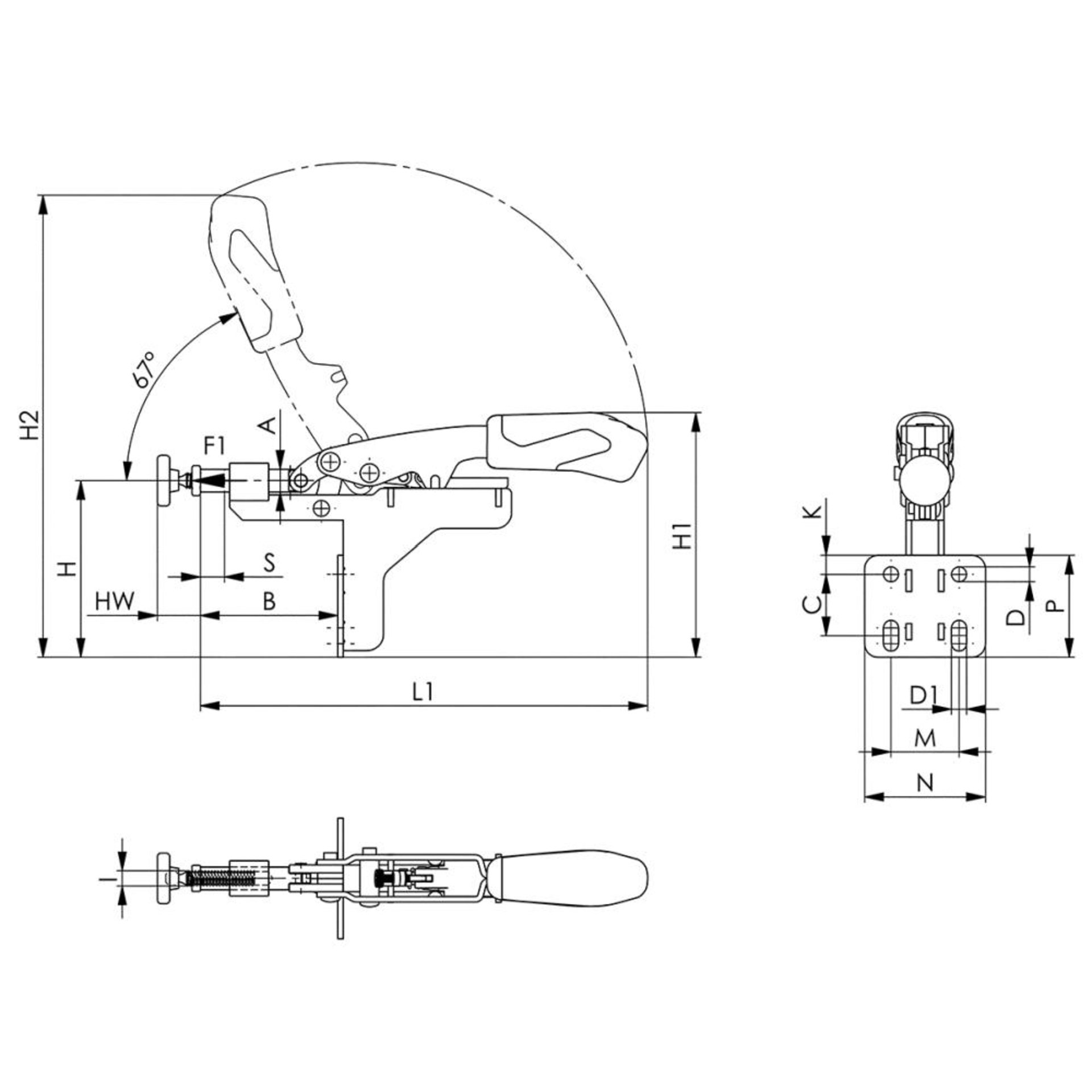

| a | 11,8 mm |
|---|---|
| A | 11,8 mm |
| Andrückschraube | M8 x 50 |
| Automatischer Höhenausgleich S | 13 mm |
| B max. | 83 mm |
| B min. | 58 mm |
| C max. | 30 mm |
| C min. | 20,5 mm |
| D | 6,5 mm |
| F1 | 3 kN |
| Gewicht | 544 g |
| h | 84 mm |
| H | 84 mm |
| H1 | 119 mm |
| H2 | 238 mm |
| Herstellerartikelnummer | 554886 |
| Herstellername | Andreas Maier GmbH & Co KG |
| HW max. | 39 mm |
| HW min. | 19 mm |
| I | M8 mm |
| K | 10,6 mm |
| L1 | 236 mm |
| M | 38,1 mm |
| Markenname | AMF |
| max. Höhenausgleich | 35 mm |
| N | 57 mm |
| P | 51 mm |
| WGNr. | W341 |
| Größe | 25 |
