Description

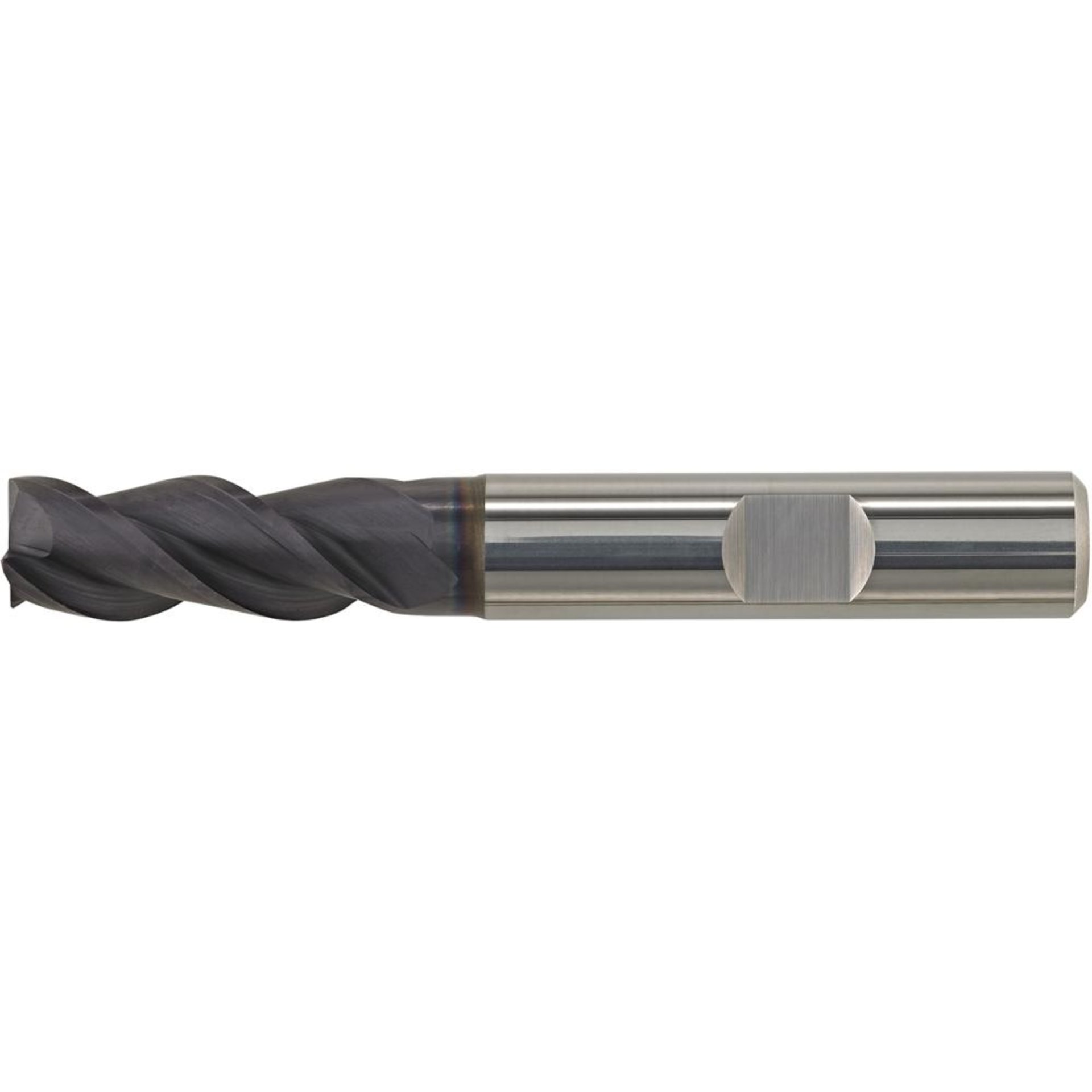

Ausführung: Besonders leistungsfähiges Werkzeug mit Zentrumschnitt, zum Bohren geeignet.
Anwendung: Zum Schrupp-, Nuten- und Schlichtfräsen verwendbar. Durch die ungleiche Drallsteigung können höhere Schnittgeschwindigkeiten erreicht werden. Weiterhin können beim Nuten- und Schruppfräsen bis zu 60 % höhere Vorschübe erzielt werden.
Hersteller: Gühring KG, Herderstr. 50-54, 72458 Albstadt, DE, +497431170, info@guehring.de
Features
| Alu < 8% Si | 250 |
|---|---|
| Alu > 8% Si | 250 |
| Beschichtung | Fire |
| Code-Nr. | 3.000 |

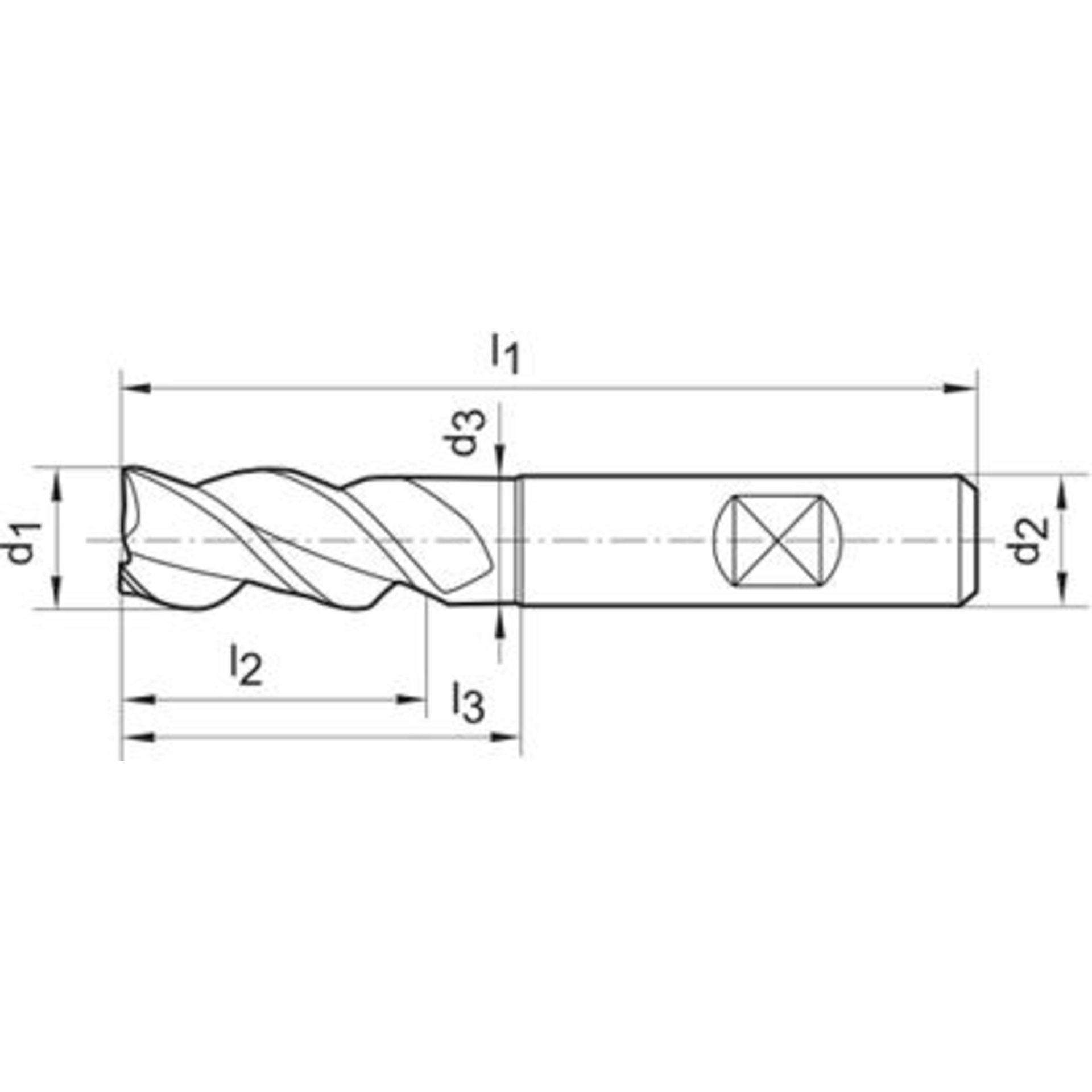

| Freizone l3 | 21 mm |
| Gehärteter Stahl < 55 HRC | 100 |
| Gesamtlänge l1 | 57 mm |
| Guss GG/GTS | 200 |
| Guss GGG | 160 |
| Halsfreischliff l3 | 21 mm |
| Hals-Ø d3 | 2,7 mm |
| Herstellername | Gühring KG |
| INOX austenitisch | 64 |
| INOX duplex | 51 |
| INOX ferrit./martens. | 80 |
| Länge Auskrag | 21.000 mm |
| Länge Nut | 11.000 mm |
| Marke | GÜHRING |
| Markenname | GÜHRING |
| Ø d1 = e8 |
|
| Ø-Nenn Toleranzfeld | e8 |
| Schaft-Ø d2 = h6 | 6 mm |
| Schneidenlänge l2 | 8 mm |
| Schneidenlänge L2 |
|
| Stahl < 1000 N/mm² | 152 |
| Stahl < 1000 N/mm² fz |
|
| Stahl < 1400 N/mm² | 122 |
| Stahl < 700 N/mm² | 190 |
| Titan > 850 N/mm² | 70 |
| WGNr. | W221 |
| DIN/ EN/ ISO/ Art | Werksnorm |
| Ø-Nenn mm | 3.000 mm |
| Oberfläche | FIRE |
| Ø-Schaft | 6.000 mm |
| Länge Nutzung | 15.000 mm |
| Gesamtlänge |
|

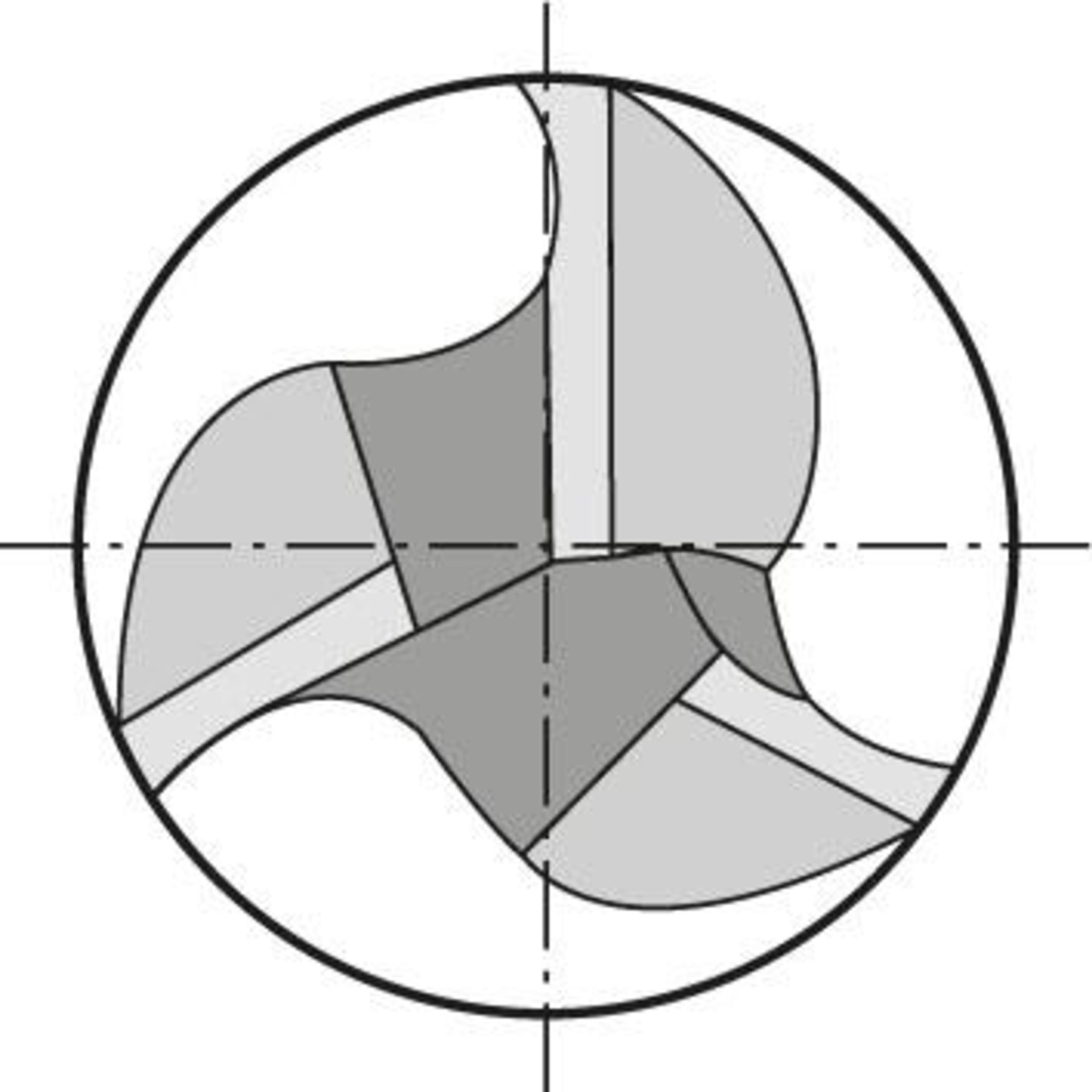

| Anzahl Schneiden | 3 |
Manufacturer
Gühring KG
Herderstr. 50-54
72458 Albstadt
07431/17-647
www.guehring.de
info@guehring.de
