Ausführung: Aus vergütetem Sphäroguss und Stahl, im Brünierton angelassen. Mit Zentrierloch Ø 12 mm. Der Richtkeil lässt sich mit üblicher Handkraft bei einer Belastung von 1/3 der Tragkraft (F max.) leicht verstellen. Die feinbearbeiteten Keilflächen erlauben ein ruhiges, feinfühliges Verstellen, genauer als 1/10 mm, wahlweise durch Rändelschraube oder Sechskantschraubendreher. Durch die doppelte Keilwirkung sind präzise vertikale Bewegungen ohne ein seitliches Verschieben gewährleistet.
Anwendung: Zum Spannen von schwierigen Guss- oder Schmiedestücken auf großen Werkzeugmaschinen. Zudem besteht die Möglichkeit, den Richtkeil auf „schwere Schraubböcke“ aufzusetzen. Hierzu wird ein Zylinderstift DIN 6325 (12 x 30 mm) benötigt.
Lieferumfang: Richtkeil mit Kugelaufsatz.
* H mm/U = Höhenverstellung pro Umdrehung.
Hersteller: Andreas Maier GmbH & Co KG, Waiblinger Str. 116, 70734 Fellbach, DE, +4971157660, amf@amf.de
Features

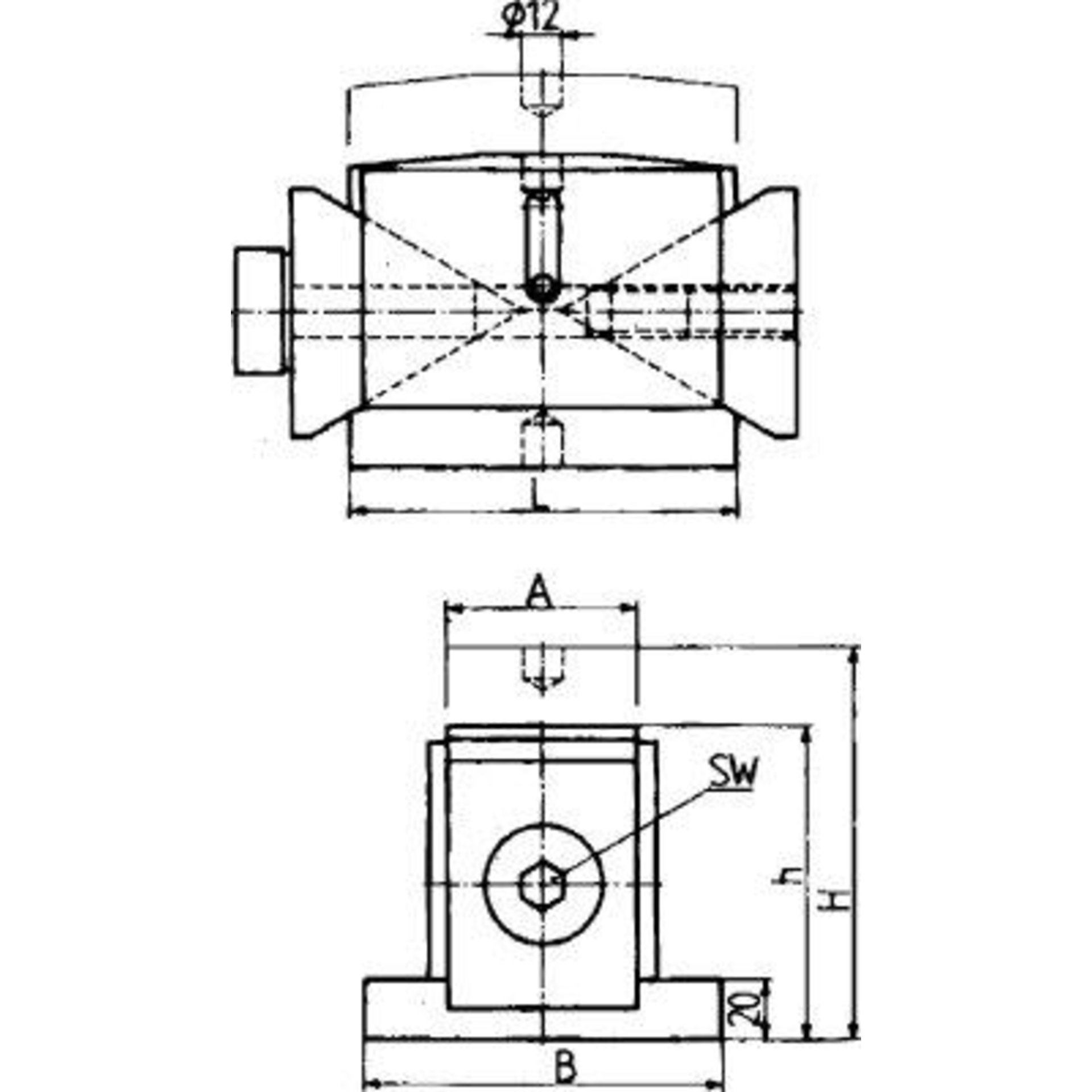

| a |
|
|---|---|
| l |
|
| Größe | 63 |
| Höhenverstellung h-H | 50-68 mm |
| B | 63 mm |
| SW | 13 mm |
| H* mm/U | 0,86 |
| Tragkraft | 40 kN |
Manufacturer
ANDREAS MAIER GmbH & Co. KG (AMF)
Waiblinger Str. 116
70734 Fellbach
Phone: +49 711 5766-0
Fax: +49 711 575725
E-mail: amf@amf.de
