Description
Ausführung: Präzisions-Spannzangen GERC-HPD ähnlich DIN ISO 15488-A (alt DIN 6499).
Die Spannzangen haben eine gemittelte Systemgenauigkeit von ≤0,003 mm (bei Abstand 3 x D max. 50 mm) in Präzisions-Spannzangenfuttern (bei der GERC8-HP sind es 6 µm). Sie sind alle mit der neuen FAHRION Protect Beschichtung gegen Korrosion geschützt.
GERC-HPD-Spannzangen haben eine Abdichtung für Innenkühlung und sind einsetzbar bis 60 bar. Sie eignen sich besonders für den Einsatz im HSC-Bereich und für hochgenaue Bearbeitungsergebnisse.
Die GERC-HPD haben keine Spanndurchmesserüberbrückung (Toleranz h8). Beim Einsatz in einem Standard-Spannzangenfutter muss der blaue Erkennungsring entfernt werden.
Features

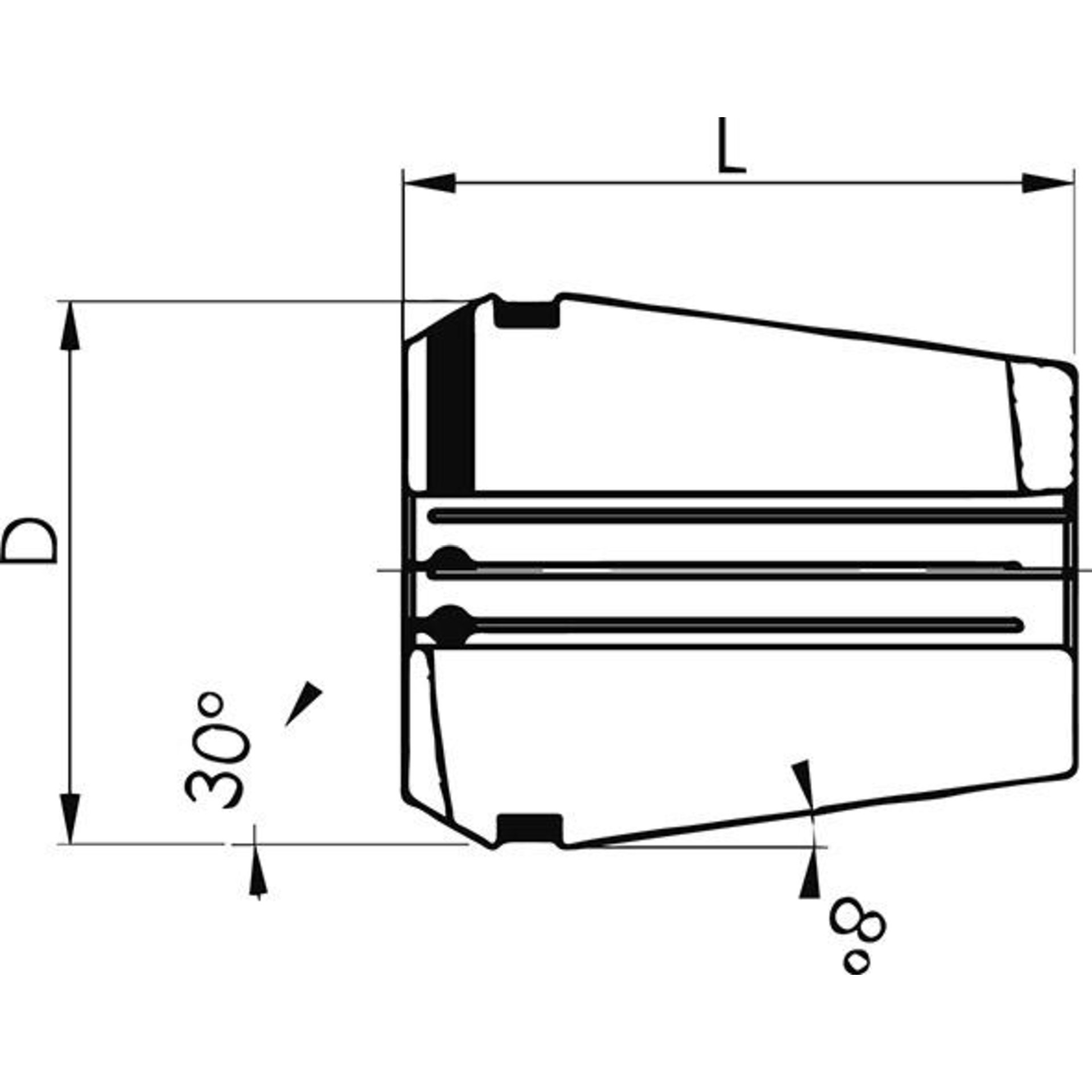

| D | 16,7 mm |
|---|---|
| l | 27,5 mm |
Manufacturer
Eugen Fahrion GmbH & Co. KG
Forststraße 54
73667 Kaisersbach
Deutschland
Telefon: +49 (0)7184 92 82-0
E.Mail: verkauf[at]fahrion.de
