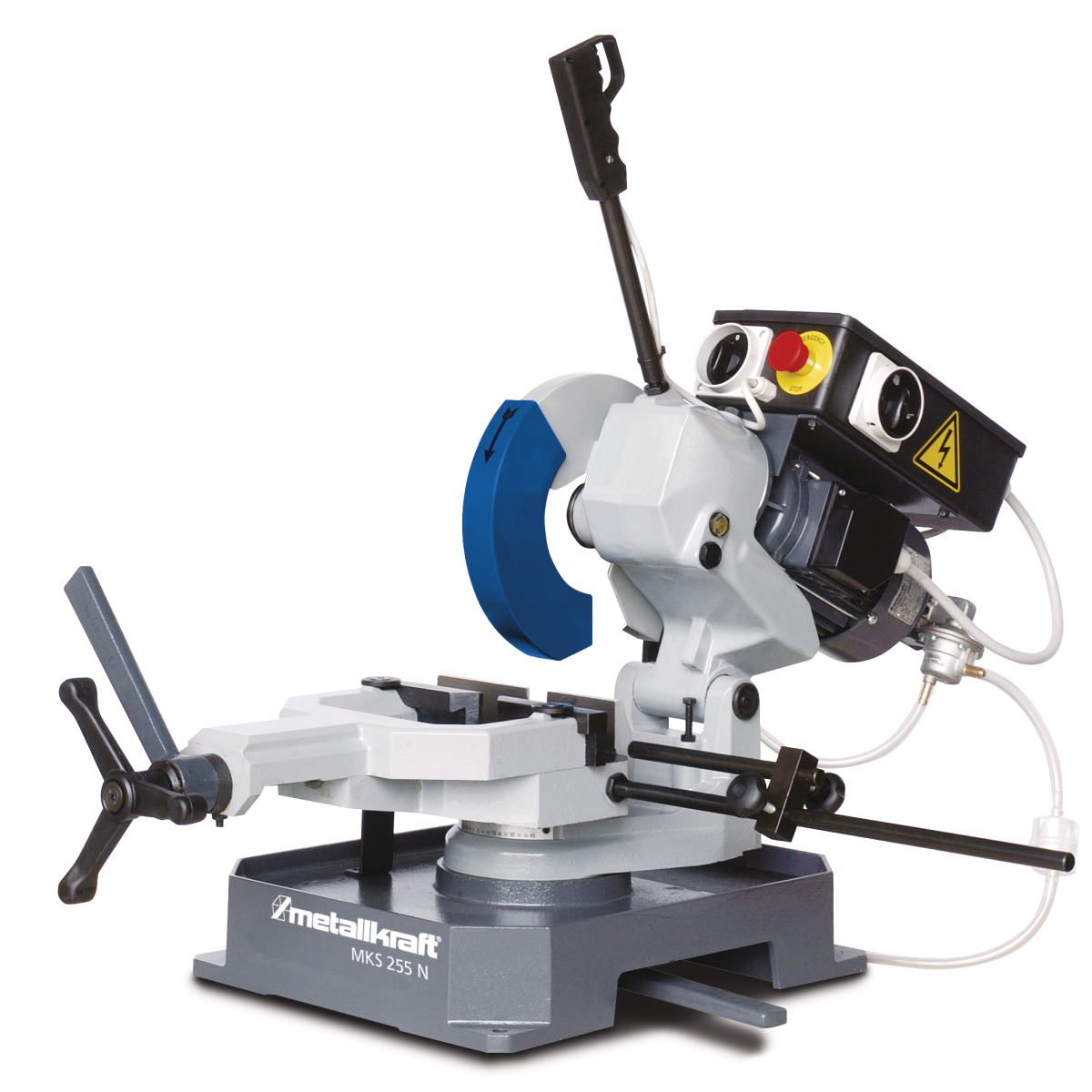

Description
- Für Stahl
- zwei Schnittgeschwindigkeiten
- Untersetzungsgetriebe, geräuscharm im Ölbad laufend
- automatische Membrankühlmittelpumpe mit serienmäßigem Kühlmittelfilter
- bewegliche Schutzvorrichtung sorgt für optimale Sicherheit beim Schneiden
- Steuerhandgriff mit Sicherheitsschalter
- elektrische Anlage in Niederspannung 24 Volt, mit Not-Aus-Schalter, Hauptschalter, Drehzahlwahlschalter und Überlastschutz
- beidseitig um 45° drehbarer Maschinenkopf
- beidseitig um 45° schwenkbarer Schnellspann-Schraubstock
- Schnellspann-Schraubstock mit Doppelspann-Vorrichtung garantiert einen präzisen und gratarmen Schnitt
- Qualität Made in Europe
Ausstattungsdetails:
- beidseitig um 45° schwenkbarer Schnellspann-Schraubstock
- Kühlmitteleinrichtung
- Längenanschlag 500 mm
- Bedienwerkzeug
- Ohne Sägeblatt
- Ohne Unterbau
Features
| Anschlussspannung | 400 V |
|---|---|
| Breite/Tiefe (Produkt) ca. | 830 mm |
| Drehzahlen | 40/80 U/min |
| Einlaufhöhe inkl. Unterbau | 970 mm |
| Gehrungswinkel | -45 – +45 ° |
| Gewicht (netto) ca. | 83 kg |
| Gewicht ca. | 83 kg |
| Höhe (Produkt) ca. | 755 mm |
| Länge (Produkt) ca. | 800 mm |
| Leistung Antriebsmotor | 0,95 / 1,32 kW |
| Motorleistung 50 Hz | 0,95 / 1,32 kW |
| Netzfrequenz | 50 Hz |
| Sägeblattdrehzahl(en) | 40/80 min¯¹ |
| Sägeblattdurchmesser | 250 mm |
| Schnittkapazität -45° (quadrat) Rohr | 55 x 55 mm |
| Schnittkapazität -45° (rechteck) Rohr | 55 x 60 mm |
| Schnittkapazität -45° (rund) Rohr | 65 mm |
| Schnittkapazität -45° (rund) Vollmaterial | 35 mm |
| Schnittkapazität +45° (quadrat) Rohr | 55 x 55 mm |
| Schnittkapazität +45° (rechteck) Rohr | 55 x 60 mm |
| Schnittkapazität +45° (rund) Rohr | 65 mm |
| Schnittkapazität +45° (rund) Vollmaterial | 35 mm |
| Schnittkapazität 0° (quadrat) Rohr | 70 x 70 mm |
| Schnittkapazität 0° (rechteck) Rohr | 55 x 95 mm |
| Schnittkapazität 0° (rund) Rohr | 70 mm |
| Schnittkapazität 0° (rund) Vollmaterial | 40 mm |
| Spannweite Maschinenschraubstock | 100 mm |
| Stellfläche | 800 x 830 x 755 mm |
Ersatzteile
Zubehör
Sonstiges
Ausgewählt
Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26
96103 Hallstadt
0951/96555-0
www.stuermer-maschinen.de
info@stuermer-maschinen.de
Safety regulations
General safety instructions
• All electrical connections must be made by an authorized electrician
• Machines may only be operated with functioning safety devices
• Only allow trained personnel to operate the machine
• Maintenance and repair work may only be carried out by trained personnel
• Never work under the influence of illnesses that impair concentration, medication, drugs or alcohol
• Machines must always be disconnected from the power supply before maintenance or repair work
• Wear tight-fitting clothing and remove all objects that could cause you to get caught in machines.
• Use original spare parts and accessories
• Keep body parts away from moving parts of the machines.
• In the event of a malfunction or unusual behavior, operation must be stopped immediately until the cause has been clarified and the error has been rectified.
• Avoid overloading machines. Always work within the permitted performance range (technical data)
• Always ensure that no one is in the danger areas of the machines.
• Before using the machines, make sure that the safety devices are working properly
• Read the operating instructions and familiarize yourself with the safety devices.
• Keep the work area clean and tidy to minimize sources of danger
• Do not make any changes to machines
• Wear hearing protection to protect your hearing
• Wear appropriate safety gloves when handling chemicals or sharp objects
• Wear appropriate safety shoes to protect your feet
• Wear appropriate safety clothing
• Always observe and follow all safety instructions that are attached to the product or included with the product.
