Description

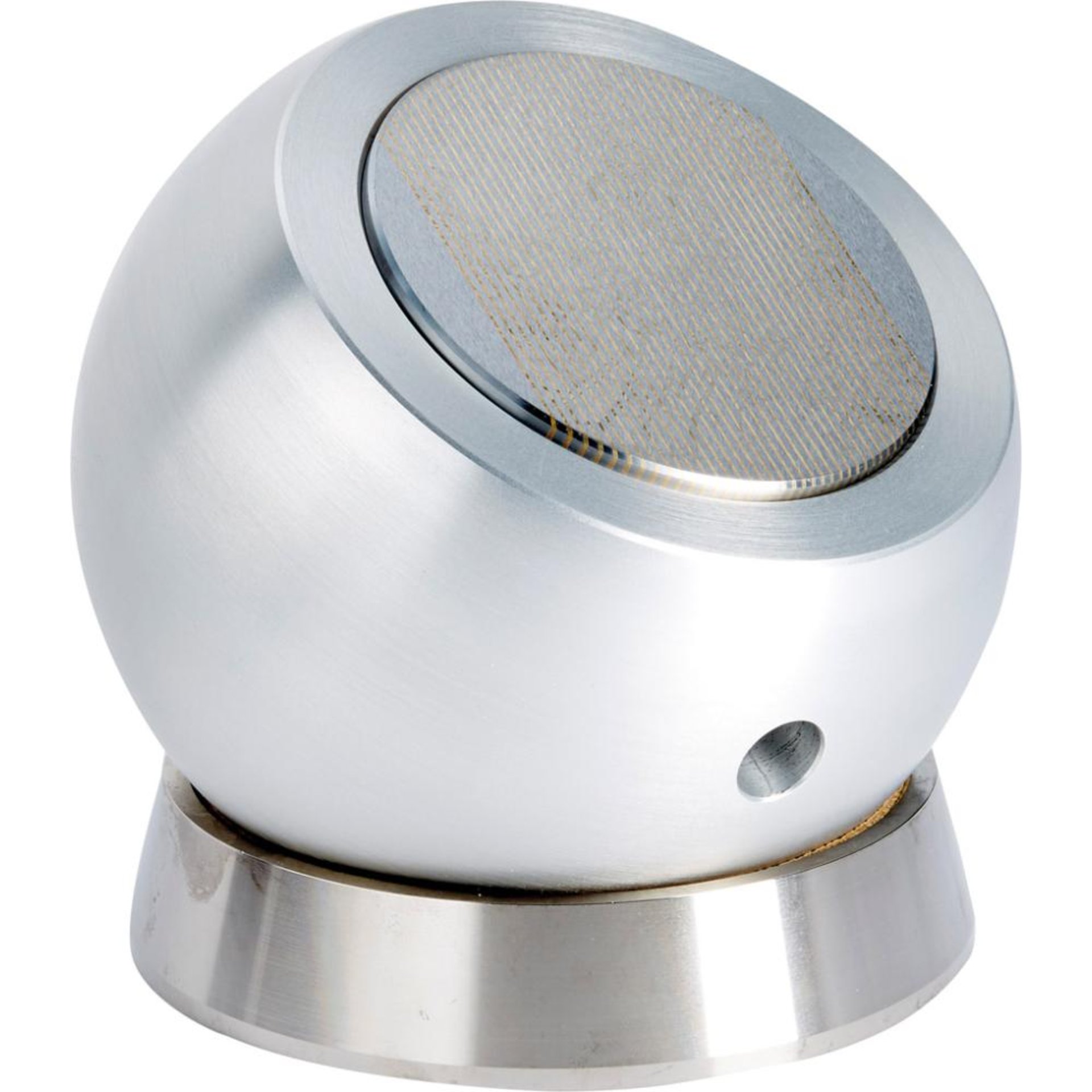

Ausführung: Eloxierte Aluminiumkugel mit feinpoligem Magnetspannfutter. Die Kugel lagert in einem mit Leder ausgeschlagenen, chemisch vernickelten Stahlring und lässt sich je nach Werkstückgeometrie und Gewicht um bis zu 90° schwenken. Das Magnetspannfutter wird über den Sechskant aktiviert.
Max. Polteilung: 1,5 + 0,5 mm
Anwendung: Zum Fixieren von Werkstücken beim Laserschweißen, Polieren und Montieren.
Lieferumfang: Spannkugel und Sechskant-T-Griff-Schlüssel.
Hersteller: Flaig Magnetsysteme GmbH & Co. KG, Feurenmoos 15, 78739 Hardt, DE, +497422940010, info@flaig-te.de
Features
| Aufnahmekugel Ø | 128 mm |
|---|---|
| Durchmesser | 80 mm |
| Gewicht | 5 kg |
| Haftkraft | 80 N/mm² |
| Herstellername | Flaig Magnetsysteme GmbH & Co. KG |

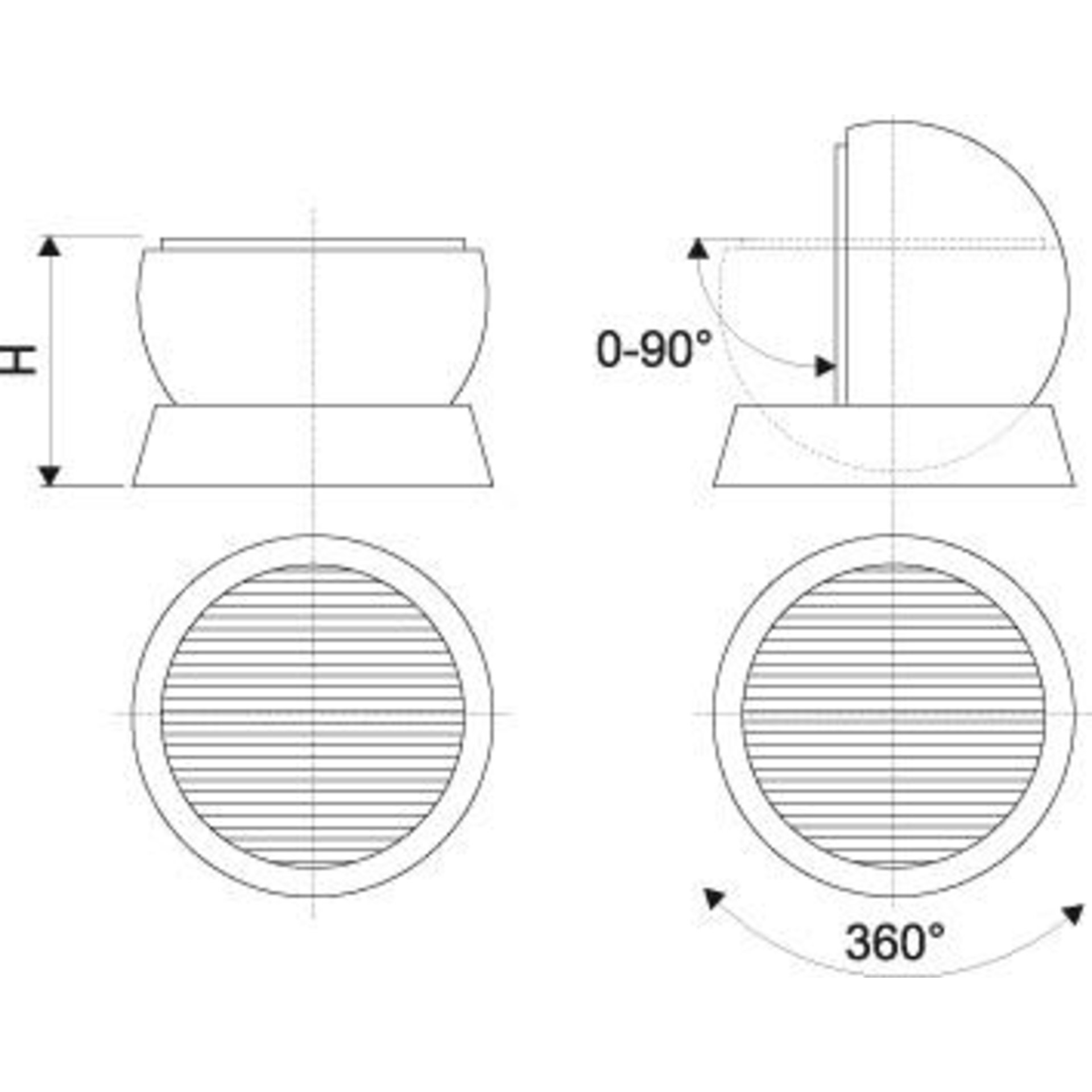

| Höhe H | 104 mm |
| Markenname | Flaig |
| Ø | 80 mm |
| WGNr. | W350 |
Manufacturer
FLAIG Magnetsysteme GmbH & Co. KG
Feurenmoos 15
78739 Hardt
07422/940010
www@flaig-te.de
info@flaig-te.de
