HAZET Torque wrench with reversible ratchet for screwdriver bits 5108B-3CT ∙ Torque range min-max: 2.5 – 25 Nm ∙ Accuracy: 3% ∙ 1/4 inch (6.3 mm) hexagon, hollow ∙ 234 mm

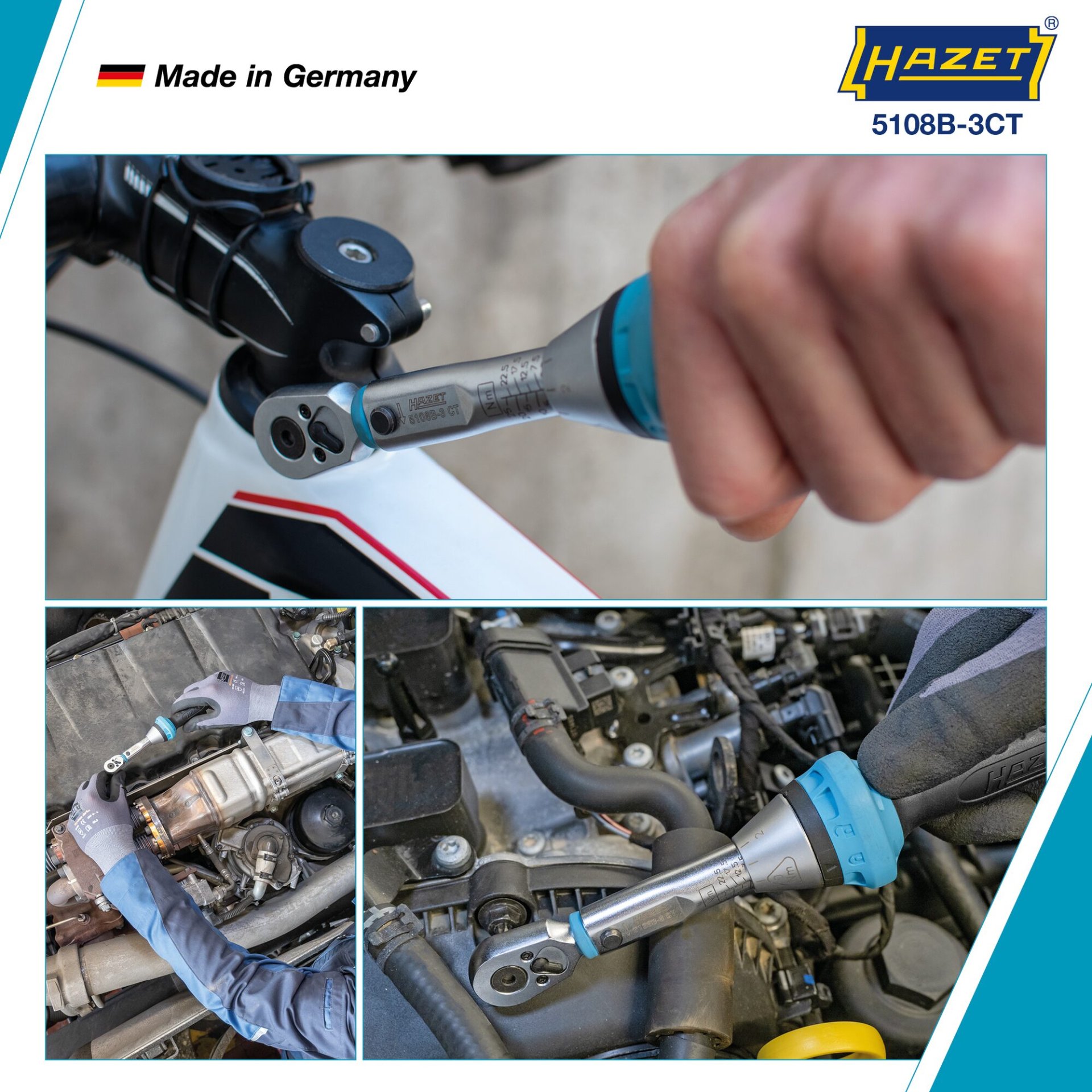

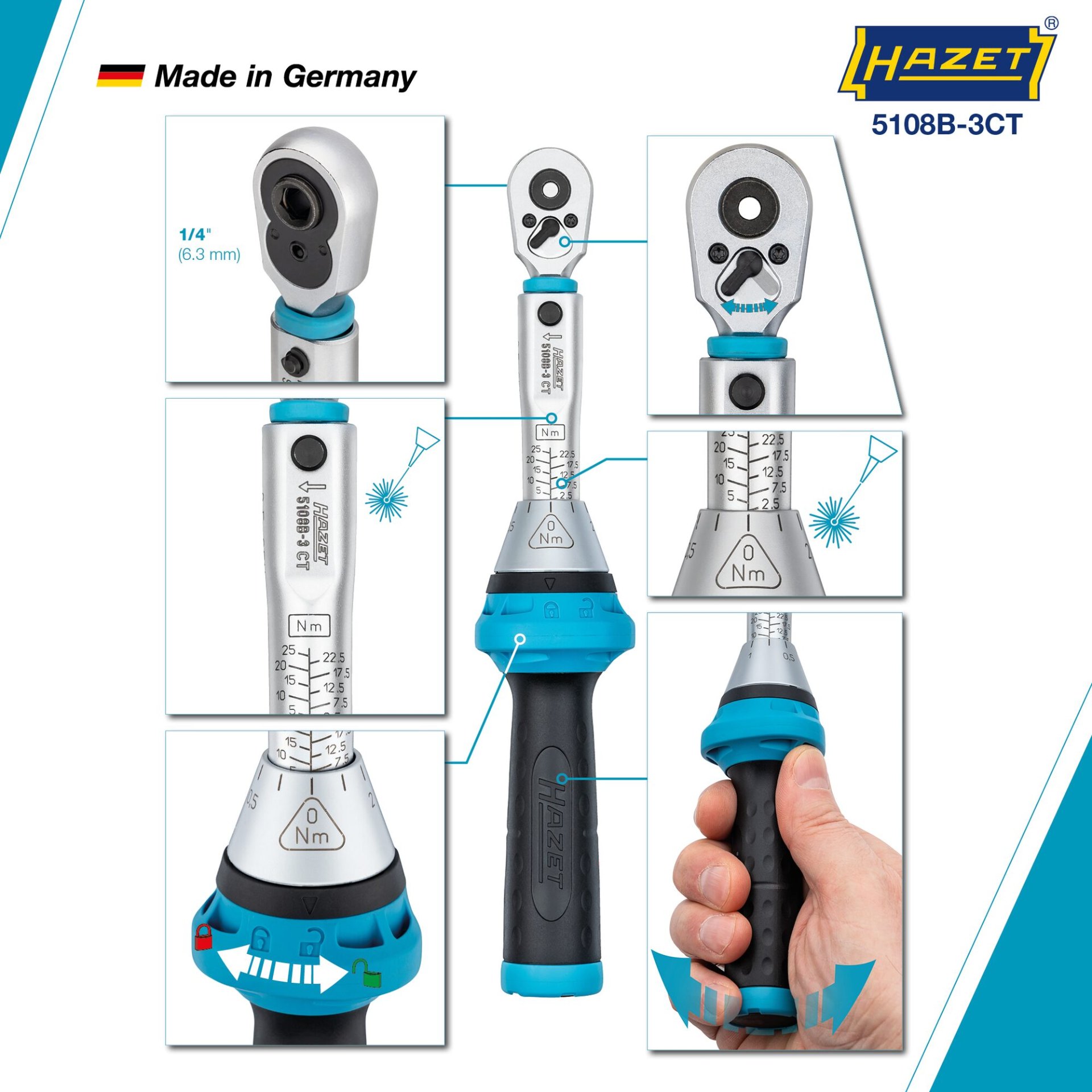

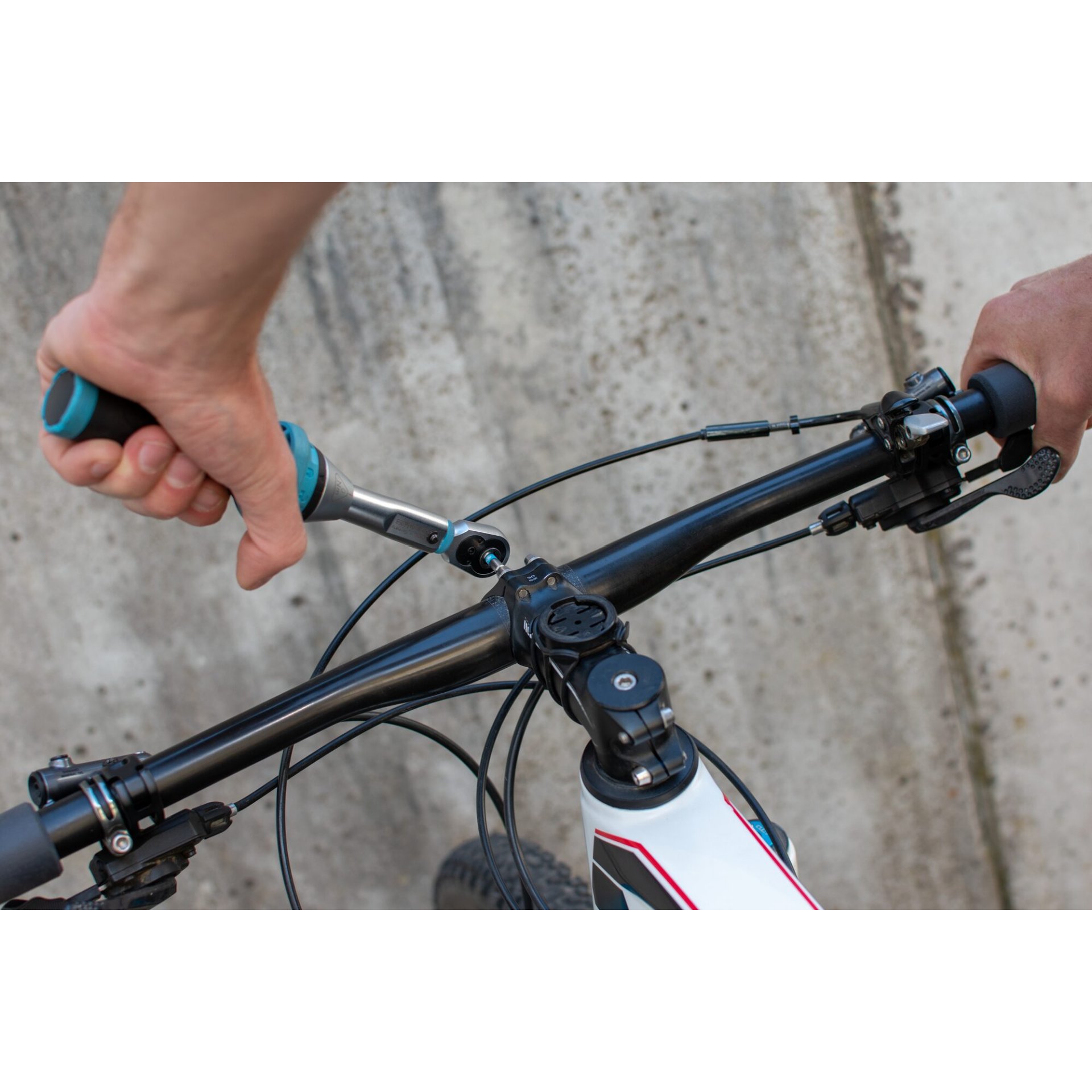

• User-friendly reversible ratchet for bits. • Accuracy ± 3% (5108B-3CT) or 4% (5107B-3CT) of the scale value (in direction of actuation for right-hand tightening). • Safety:• Haptic (close-gap release). • Audible (“click” sound). • Designed for rough workshop use. • Wide range of applications for controlled screw tightening for bicycle, passenger car and commercial vehicle applications as well as various applications in trade and industry. • Optimised sealing ring to protect against debris. • Handle with better grip for easier power transmission. • Adjustment aid with detent points for optimised operator guidance ensures safe and fast adjustment of the desired torque value by turning the handle. • Safe locking of the setting values by latching function on the rotary assembly. • Rotary assembly in triangular form prevents uncontrolled rolling. • Lock symbols indicate the respective locking status. • Can be attached to the cable loop through openings on the locking rotary assembly. • Easy-to-read, high-contrast scale. • Permanent readability due to laser marking on the scale bush. • Integrated shift lever. • With calibration certificate and serial number. • Delivery in sturdy Hexa plastic box. • For e.g. maintenance and service work on the burner flange or the electrodes on compact modules for condensing and combi gas boilers. • For aluminium and carbon parts ∙ plastic attached parts ∙ fairings of motorcycles ∙ scooters ∙ bicycles. • DIN EN ISO 6789-2:2017. • Made in Germany. • Output: 1/4 inch (6.3 mm) hexagon, hollow. • Dimensions / length: 234 mm. • Torque range min-max: 2.5 – 25 Nm. • Accuracy: 3 %. • Scale Graduation (Nm): 0.25 Nm. • Actuating force min.-max. kg: 1.4 – 15.3 kg. • Number of teeth: 20 (Opening angle 18°). • Head Thickness a: 10.2 mm. • Head Width b: 24 mm. • No more turning back: Continuous long-term tests on the 5000 series and 6000 series of HAZET torque wrenches have demonstrated that turning them back to the smallest scale value is not required. SYSTEM 5000 B-3 CT Workshop torque wrenches1 – 25 N·m ∙ with reversible ratchet for screwdriver bits ∙ accuracy ± 3 / 4 %.
