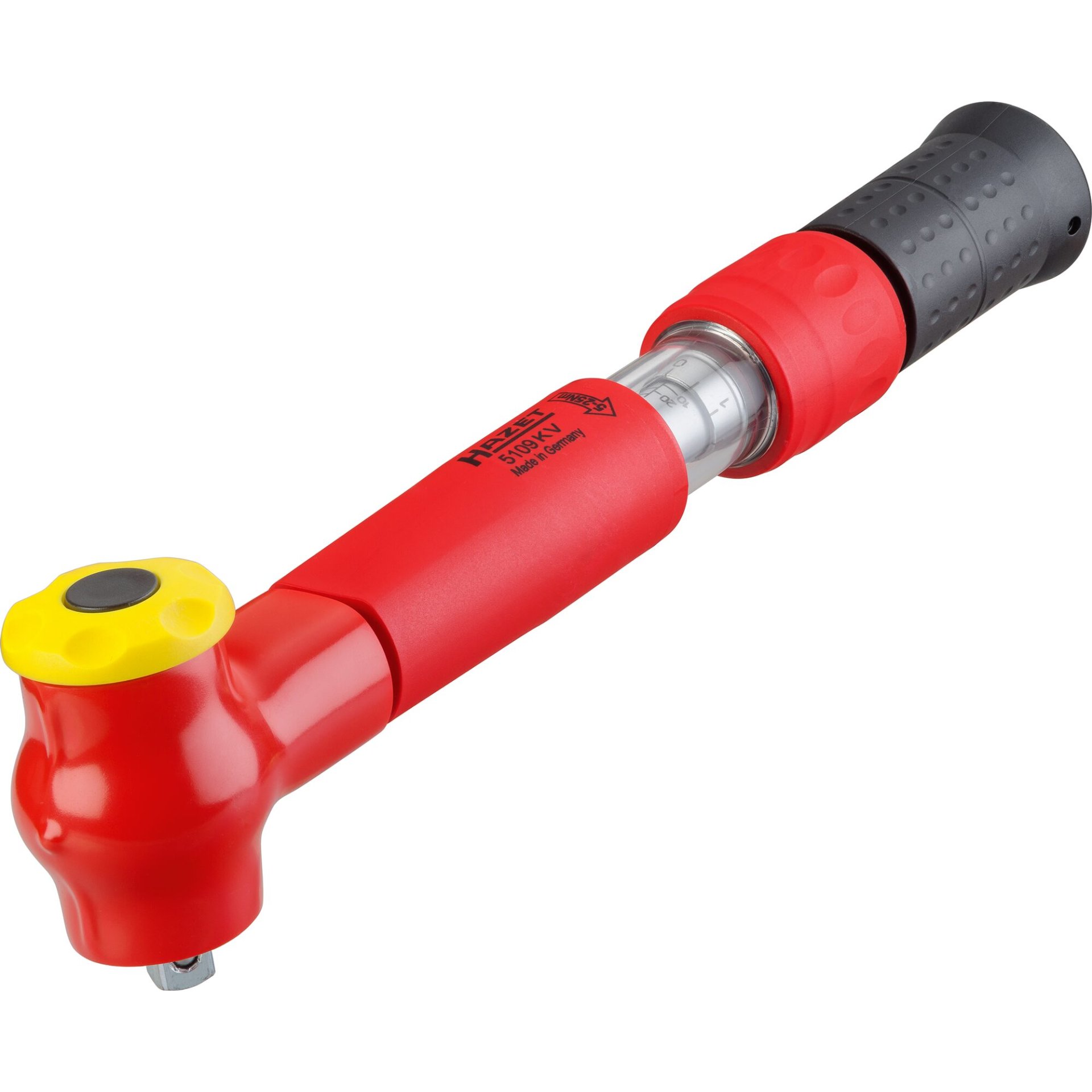

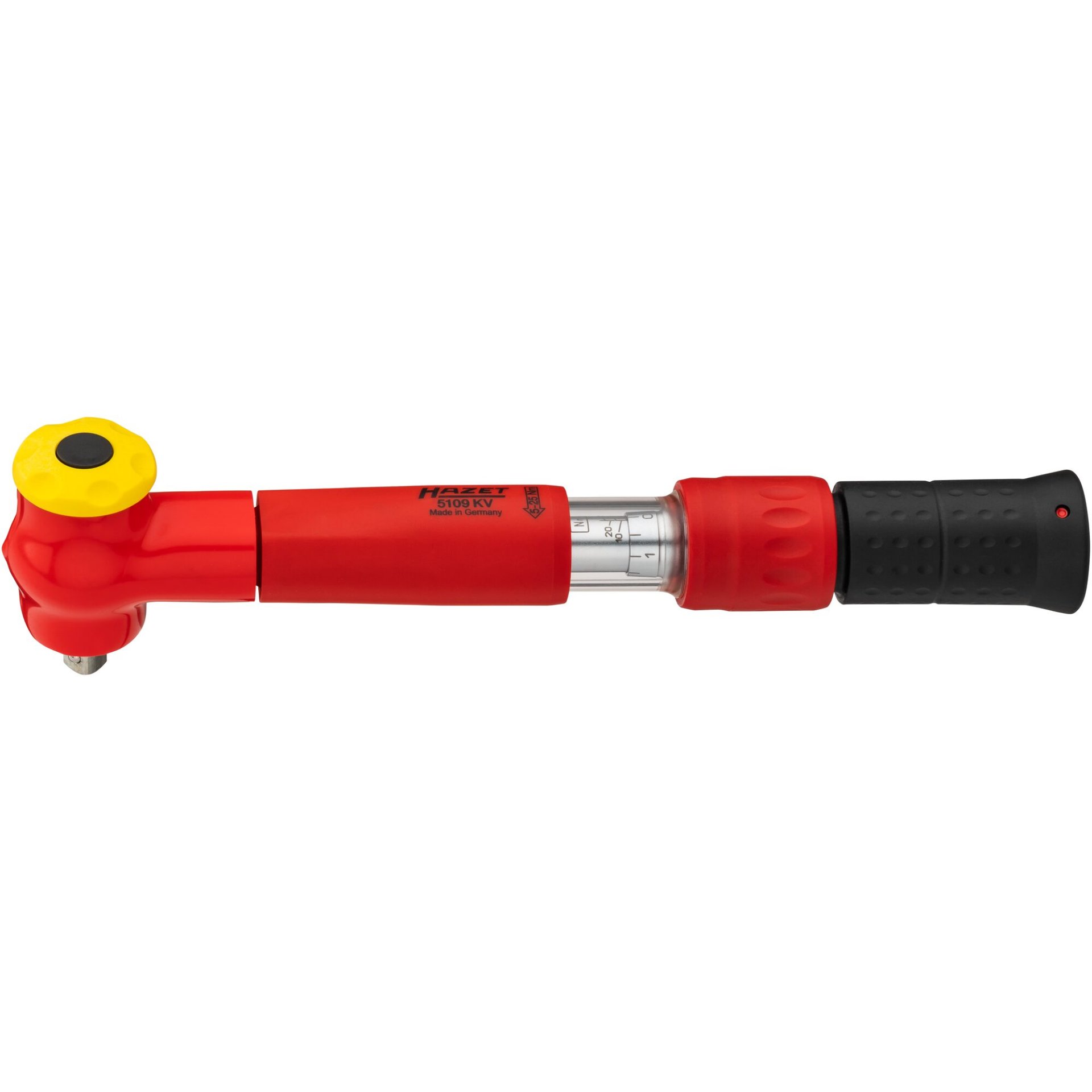

HAZET Torque wrench ∙ with protective insulation 5109KV ∙ Torque range min-max: 5 – 25 Nm ∙ Accuracy: 4% ∙ 3/8 inch (10 mm) square, solid ∙ 305 mm

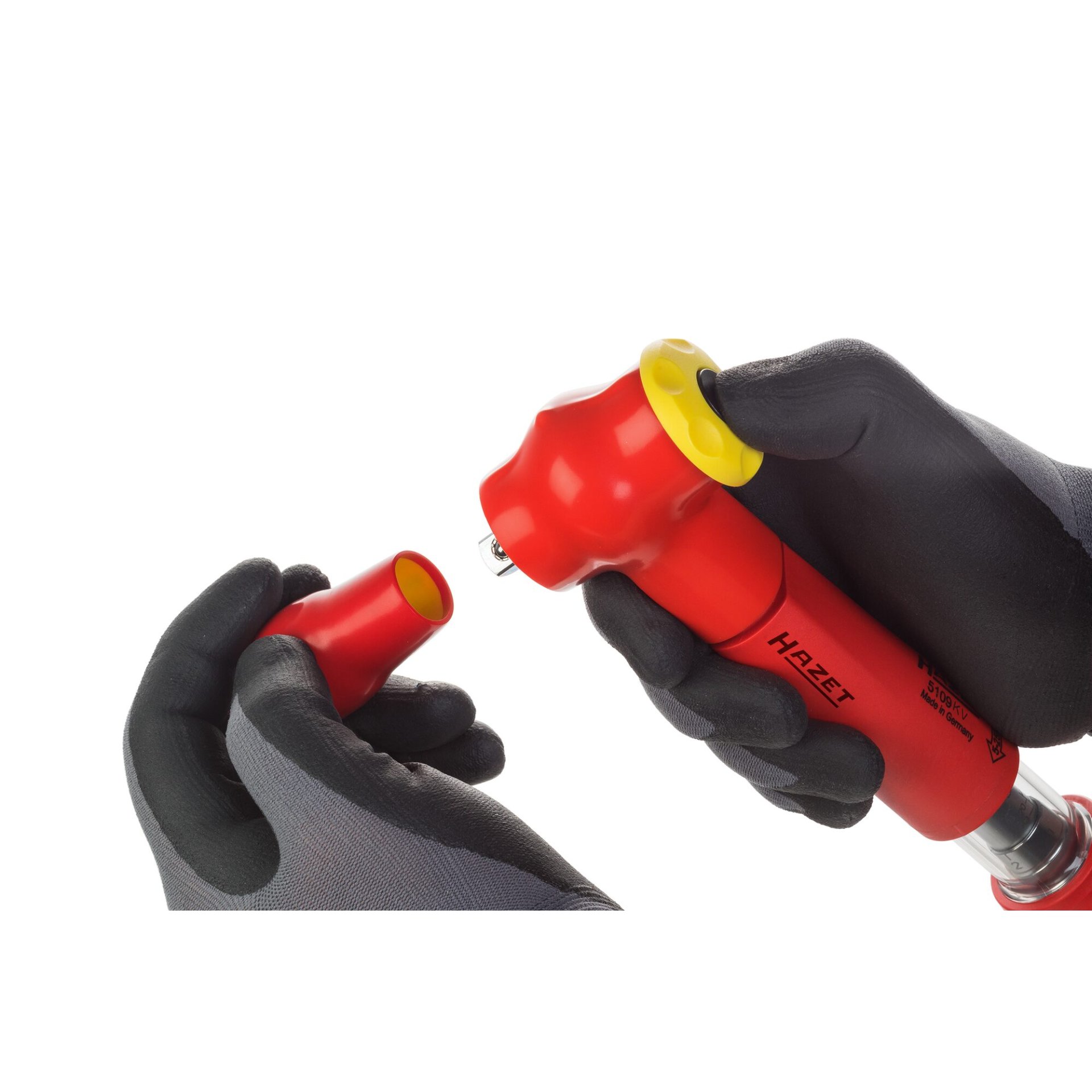

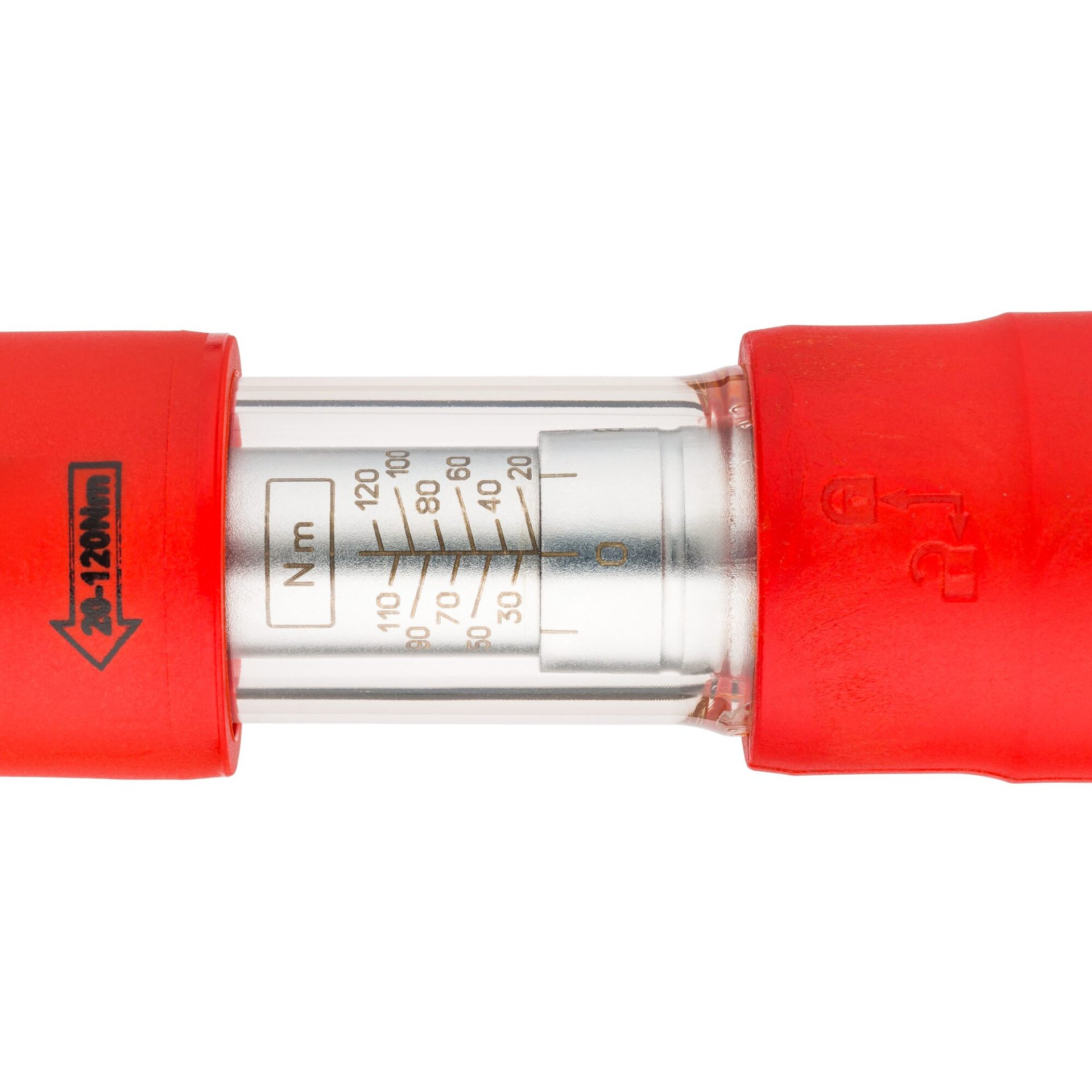

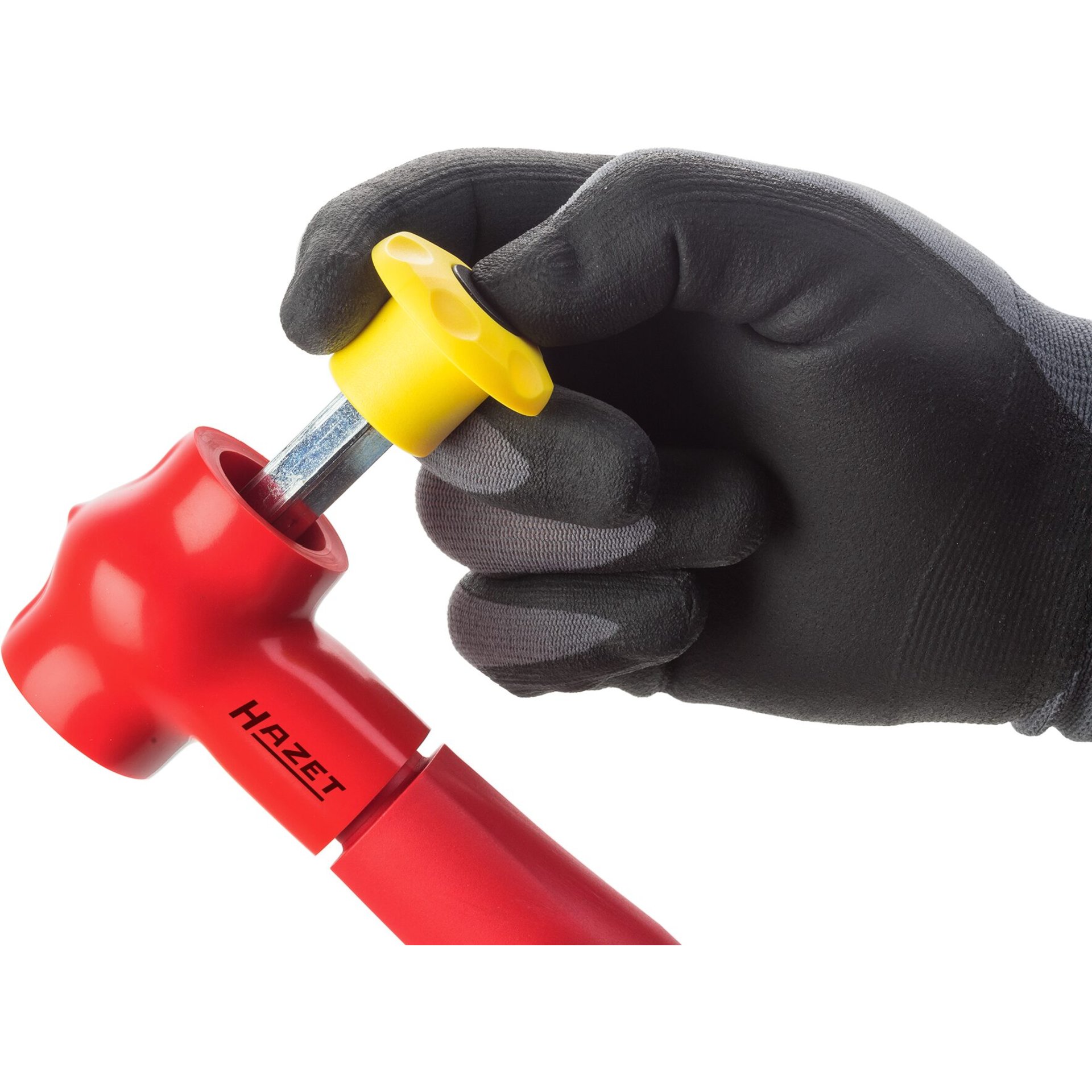

• Can be calibrated. • Long service life / high accuracy. • Option of:• Removal. • Repair (if necessary). • Installation. • Adjustment. • Calibration. • Note: adjustment, possible repairs with removal/installation of the KV torque wrench only in the HAZET Service Center. • Suitable for control of inspection and test equipment. • Sustainable and environmentally sound. • Safety:• Haptic (close-gap release). • Audible (“click” sound). • Right/left release by plug-in square, - thereby tightening at torque setting, both to the right and to the left within the specified accuracy. • Low weight for good handling and fatigue-free work. - Product design features. • Slim design in strict accordance with the required insulating properties (material strength/overlaps). • Smooth transitions on switching and moving parts with ergonomic handle design and calibration notch. • Uniform look even when using other components (e.g. red insulated sockets). • Attractive colour design of the housing and head with signal colours red/yellow. • Handle colour in black to make a distinction with the colour and to prevent it appearing dirty quickly. • No disturbing projecting parts (e.g. shift lever). ATTENTION: - Repairs may only be carried out by the HAZET Service Center, as repair works must be followed by a 10,000 V routine test in accordance with IEC 60900 • DIN EN ISO 6789-2:2017, DIN 3120, ISO 1174-1, IEC 60900:2018. • Made in Germany. • Output: 3/8 inch (10 mm) square, solid. • Dimensions / length: 305 mm. • VDE protective insulation up to 1000 V. • Torque range min-max: 5 – 25 Nm. • Accuracy: 4 %. • Scale Graduation (Nm): 0.5 Nm. • Actuating force min.-max. kg: 2.1 – 11.0 kg. • Number of teeth: 24 (Opening angle 15°). • No more turning back: Continuous long-term tests on the 5000 series and 6000 series of HAZET torque wrenches have demonstrated that turning them back to the smallest scale value is not required.
