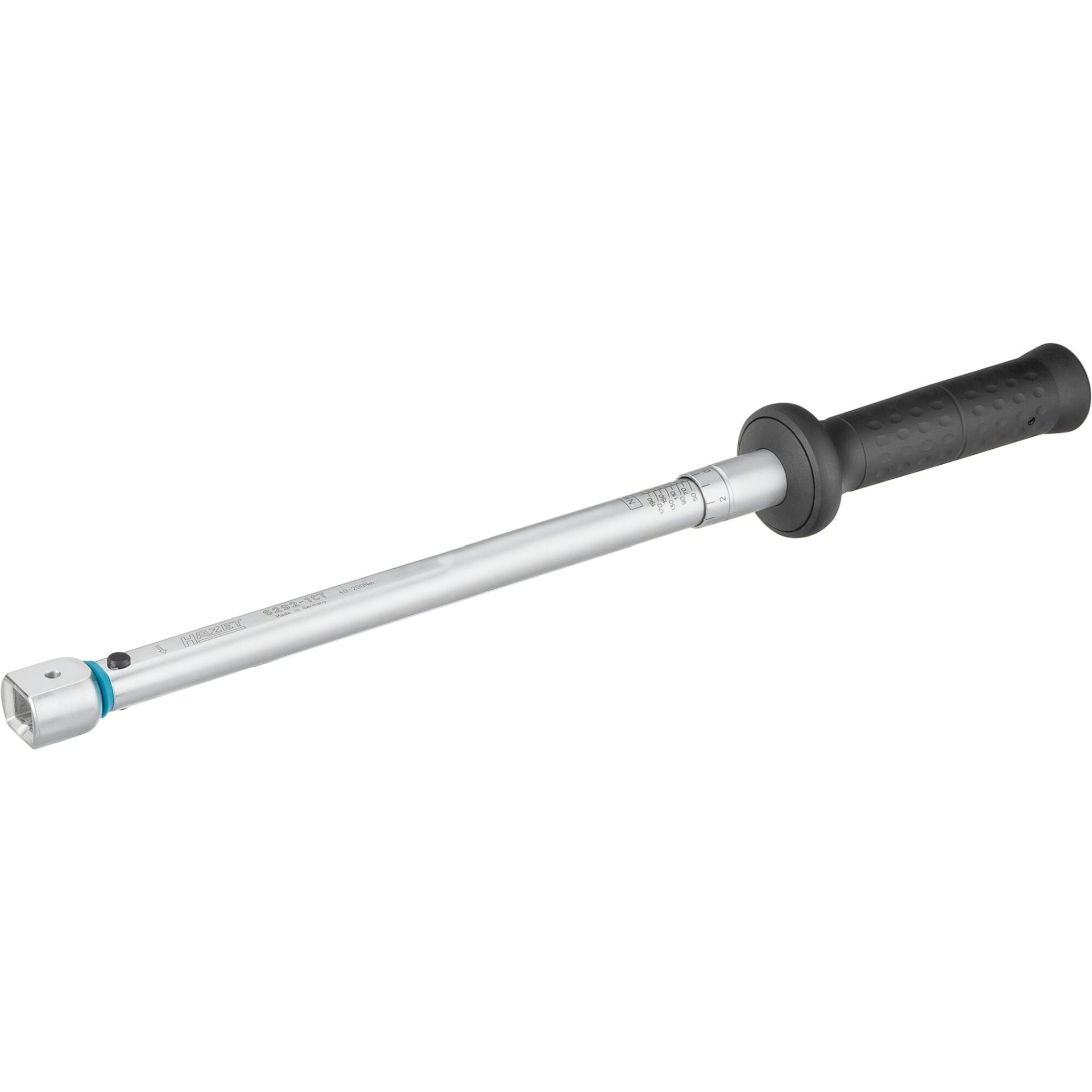

HAZET Torque wrench with DAkkS calibration certificate 6292-1CTCAL ∙ Torque range min-max: 40 – 200 Nm ∙ Accuracy: 2% ∙ 14 x 18 mm insert square ∙ 511 mm

Sichere Aufbewahrung in Safe Box mit Sichtfenster

HAZET-Werk

HAZET Torque wrench with DAkkS calibration certificate 6292-1CTCAL ∙ Torque range min-max: 40 – 200 Nm ∙ Accuracy: 2% ∙ 14 x 18 mm insert square ∙ 511 mm

SKU	9900082393
GTIN	4000896193271
MPN	6292-1CTCAL
Weight	1.7 kg
Width	0.08 m
Length	0.65 m
Height	0.09 m

750,53 €

Maße 511 mm

Steckverbindung zur Aufnahme von Einsteckwerkzeugen
Genauigkeit ± 2 % vom Skalenwert (in Betätigungsrichtung)
Made in Germany
Norm DIN EN ISO 6789-2:2017
Abtrieb 14 x 18 mm Einsteck-Vierkant hohl

incl. VAT plus shipping

Delivery time: 3-5 Werktage

Stück

Description

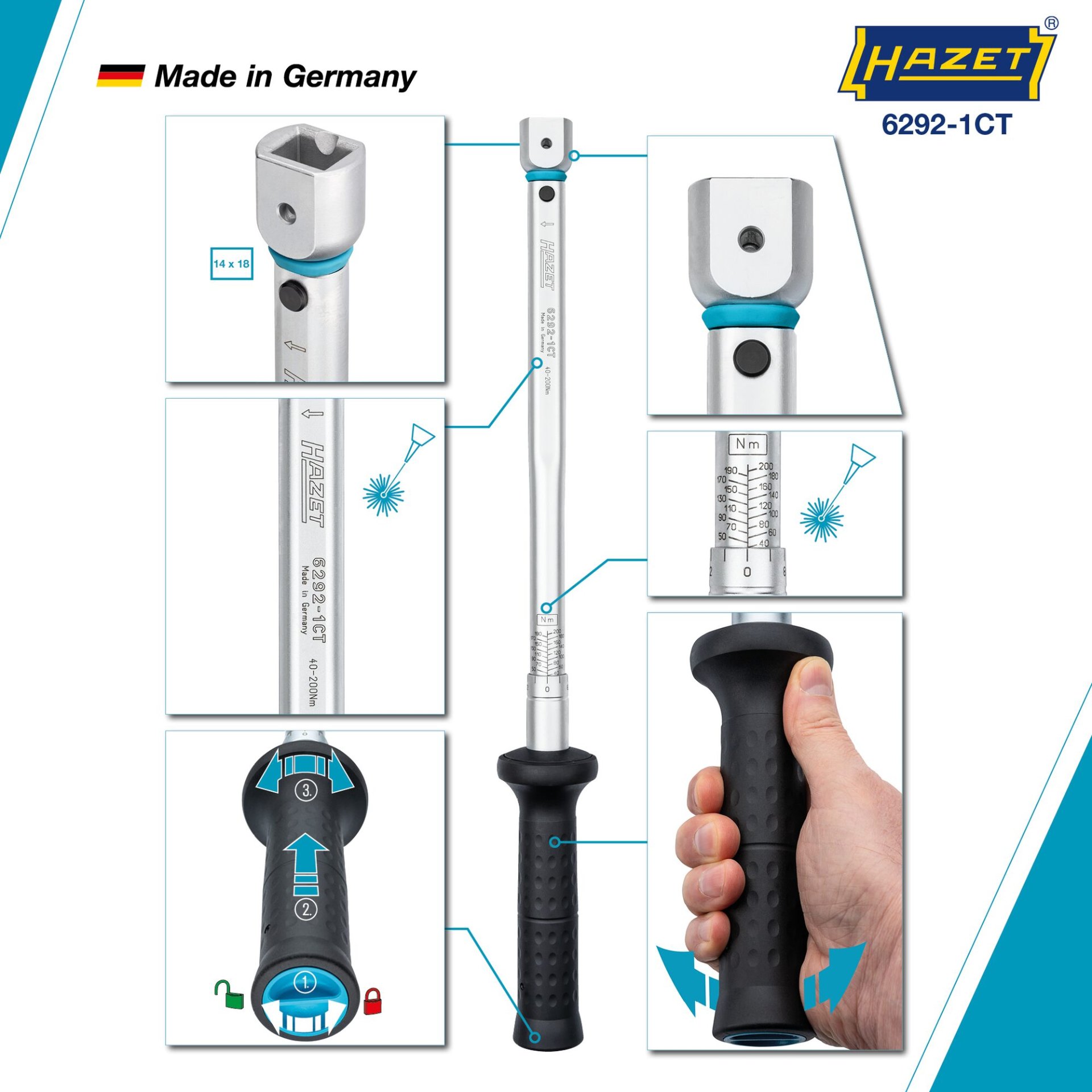

• Torque wrench with DAkkS calibration certificate. • Plug connection to hold insert tools. • Accuracy ± 2 % of the scale value (in direction of actuation) - Can be used for right-hand and left-hand threads by turning the insert tool. • Safety:• Haptic (close-gap release). • Audible (“click” sound). • With calibration certificate and serial number. • Easy and safe adjustment of the desired torque value by turning the handle. • Secure storage in safe box with display window. • DIN EN ISO 6789-2:2017. • Made in Germany. • Output: 14 x 18 mm insert square. • Dimensions / length: 511 mm. • Torque range min-max: 40 – 200 Nm. • Accuracy: 2 %. • Scale Graduation (Nm): 1 Nm. • Effective torque wrench length min.-max. I1 mm: 478.00 – 455.44 Nm. • Actuating force min.-max. kg: 8.5 – 44.8 kg. • Inside micrometre of the adjusting tool l2: 38.5 mm. • Head Thickness a: 23 mm. • Head Width b: 30 mm. • No more turning back: Continuous long-term tests on the 5000 series and 6000 series of HAZET torque wrenches have demonstrated that turning them back to the smallest scale value is not required. DAkkS calibration certificate for the professional user, especially for: • Aviation industry. • Automobile industry. • New-energy, wind turbines, offshore wind farms. • Petrochemical industry (oil/gas). Documented traceability guarantees complete verifiability. SYSTEM 6200-1 CT Insert torque wrenches2 – 500 N·m ∙ with insert square ∙ accuracy ± 2 / 4 %.

Features

Features
Abtrieb	14 x 18 mm Einsteck-Vierkant hohl
Anzugsmoment maximal [Nm]	200 Nm
Anzugsmoment minimal [Nm]	40 Nm
Betätigungskraft max. kg	44.8 kg
Betätigungskraft min. kg	8.5 kg
Branche	Industrie
CrossReferenz Mercedes-Benz Pkw	001-589-67-21-00DC
Ersatzteil	6060BX-6
Fahrzeug-Hersteller Pkw	MERCEDES-BENZ
Genauigkeit	2 %
Kopfbreite b	30 mm
Kopfstärke a	23 mm
Länge	511 mm
Maße	511 mm
Skaleneinteilung (Nm)	1 Nm
Umrechnung Nm in lbf.ft (max)	147.51 lbf.ft
Umrechnung Nm in lbf.ft (min)	29.5 lbf.ft
Verwendung	6414
Wirklänge des Drehmoment-Schlüssels l1 mm	440 mm
Wirklänge des Drehmoment-Schlüssels max. l1 mm	455.44 mm
Wirklänge des Drehmoment-Schlüssels min. l1 mm	478.00 mm
Wirklänge des Drehmoment-Schlüssels min.-max. l1 mm	478.00 - 455.44
Zubehör	6060BX-6
Bezeichnung Produktgruppe	SYSTEM 6200-1 CT Einsteck-Drehmomentschlüssel · 2 - 500 Nm · mit Einsteck-Vierkant · Genauigkeit ± 2 / 4 %
Norm	DIN EN ISO 6789-2:2017
Produktempfehlung	SP-10
Service-Paket	SP-10
Signalknopf	true
CrossReferenz Volkswagen	1332
