HAZET Torque wrench ∙ US-STANDARD 6115-1CT ∙ Torque range min-max: 27.1 – 135.6 Nm ∙ lbf min-max: 20 – 100 lbf.ft∙ Accuracy: 3% ∙ 3/8 inch (10 mm) square, solid ∙ 390 mm

Sichere Aufbewahrung in Safe Box mit Sichtfenster

HAZET-Werk

HAZET Torque wrench ∙ US-STANDARD 6115-1CT ∙ Torque range min-max: 27.1 – 135.6 Nm ∙ lbf min-max: 20 – 100 lbf.ft∙ Accuracy: 3% ∙ 3/8 inch (10 mm) square, solid ∙ 390 mm

SKU	9900082297
GTIN	4000896025084
MPN	6115-1CT
Weight	1.54 kg
Width	0.07 m
Length	0.53 m
Height	0.08 m

461,24 €

Maße 390 mm

Nach US-Standard
Skaleneinteilung in lbf.ft. ± 3 % Genauigkeit vom Skalenwert (in
Made in Germany
Norm DIN EN ISO 6789-2:2017
Abtrieb 3/8 Zoll (10 mm) Vierkant massiv

incl. VAT plus shipping

Delivery time: 3-5 Werktage

Stück

Description

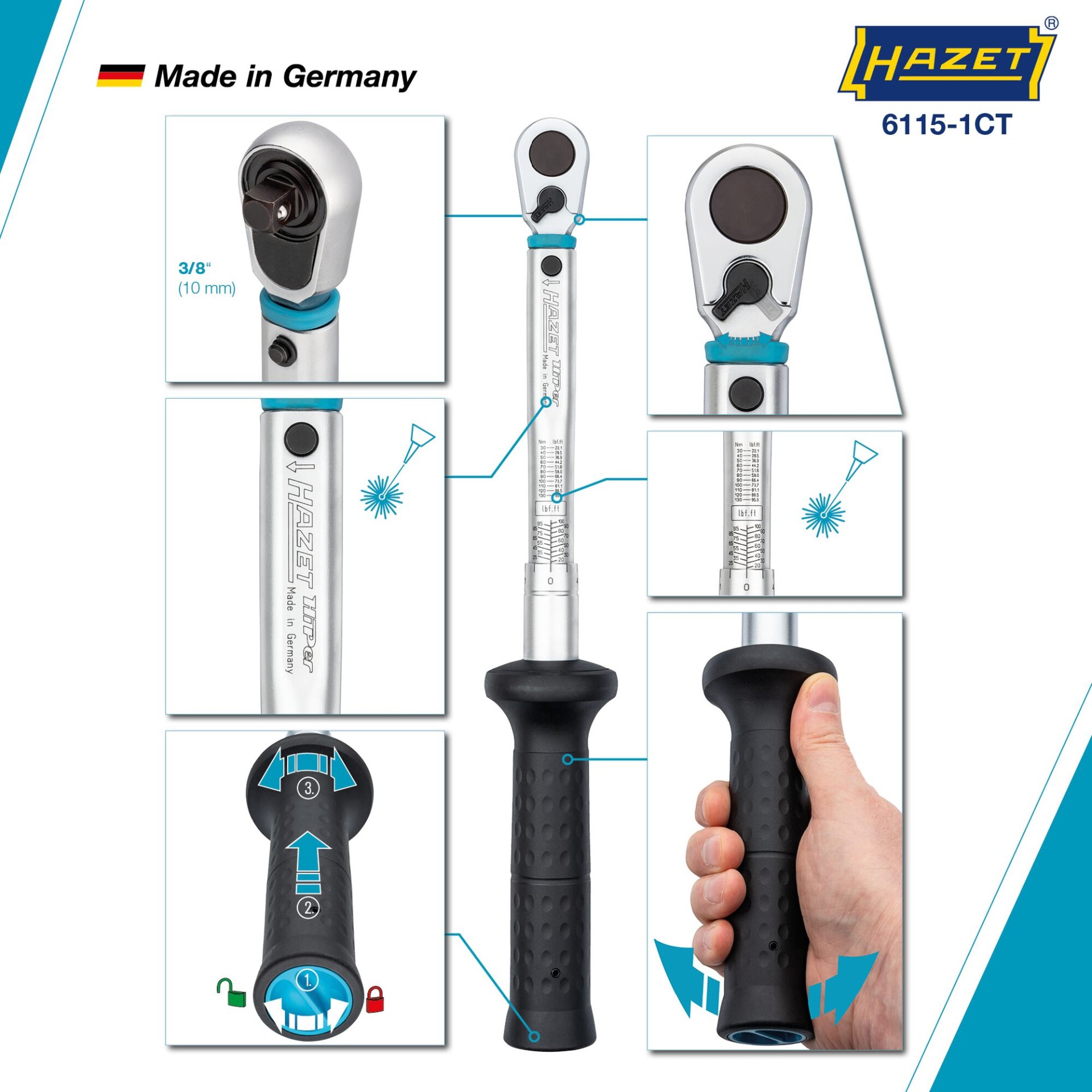

• According to US standards. • Scale graduation in lbf.ft. • Accuracy ± 3 % of the scale value (in direction of actuation for right-hand tightening) - For left-hand tightening, use our torque wrenches with insert tool. • Safety:• Haptic (close-gap release). • Audible (“click” sound). • Easy and safe adjustment of the desired torque value by turning the handle. • HiPer fine-tooth reversible ratchet in 6127-1CT (90 teeth ∙ 4° operating angle). • Knob for additionally locking the set value. • Secure storage in safe box with display window. • With calibration certificate and serial number. • DIN EN ISO 6789-2:2017, DIN 3120, ISO 1174-1. • Made in Germany. • Output: 3/8 inch (10 mm) square, solid. • Dimensions / length: 390 mm. • Net weight: 0.89 kg. • Torque range min-max: 27.1 – 135.6 Nm. • lbf min-max: 20 – 100 lbf.ft. • Accuracy: 3 %. • Scale Graduation (lbf.ft): 0.5 lbf.ft. • Effective torque wrench length min.-max. I1 mm: 302.53 – 286.53 Nm. • Actuating force min.-max. kg: 9.1 – 48.2 kg. • Number of teeth: 90 (Opening angle 4°). • Head Thickness a: 14.5 mm. • Head Width b: 32 mm. • No more turning back: Continuous long-term tests on the 5000 series and 6000 series of HAZET torque wrenches have demonstrated that turning them back to the smallest scale value is not required. SYSTEM 6000-1 CT US-Torque wrenches5 – 600 lbf.ft ∙ US Standard ∙ with reversible ratchet ∙ accuracy ± 3 %.

Features

Features
Abtrieb	3/8 Zoll (10 mm) Vierkant massiv
Anzahl Zähne	90 Zähne
Anzugsmoment maximal [lbf.ft]	100 lbf.ft
Anzugsmoment maximal [Nm]	135.6 Nm
Anzugsmoment minimal [lbf.ft]	20 lbf.ft
Anzugsmoment minimal [Nm]	27.1 Nm
Betätigungskraft max. kg	48.2 kg
Betätigungskraft min. kg	9.1 kg
Betätigungswinkel	4 °
Branche	Industrie
CrossReferenz Gedore	6550-02
CrossReferenz SW-Stahl	-
Ersatzteil	6000-4.0-01/50
Genauigkeit	3 %
Kopfbreite b	32 mm
Kopfstärke a	14.5 mm
Länge	390 mm
Maße	390 mm
Netto-Gewicht (kg)	0.89 kg
Umrechnung lbf.ft in Nm (max)	135.58 Nm
Umrechnung lbf.ft in Nm (min)	27.12 Nm
Umrechnung Nm in lbf.ft (max)	100.01 lbf.ft
Umrechnung Nm in lbf.ft (min)	19.99 lbf.ft
Wirklänge des Drehmoment-Schlüssels max. l1 mm	286.53 mm
Wirklänge des Drehmoment-Schlüssels min. l1 mm	302.53 mm
Wirklänge des Drehmoment-Schlüssels min.-max. l1 mm	302.53 - 286.53
Zubehör	6060BX-4
Bezeichnung Produktgruppe	SYSTEM 6000-1 CT US-Drehmomentschlüssel · 5 - 600 lbf.ft · US-Standard · mit Umschaltknarre · Genauigkeit ± 3 %
Norm	DIN EN ISO 6789-2:2017
Produktempfehlung	6392-320
Service-Paket	SP-10
Signalknopf	false
Skalenteilung (lbf.ft)	0.5 lbf.ft
