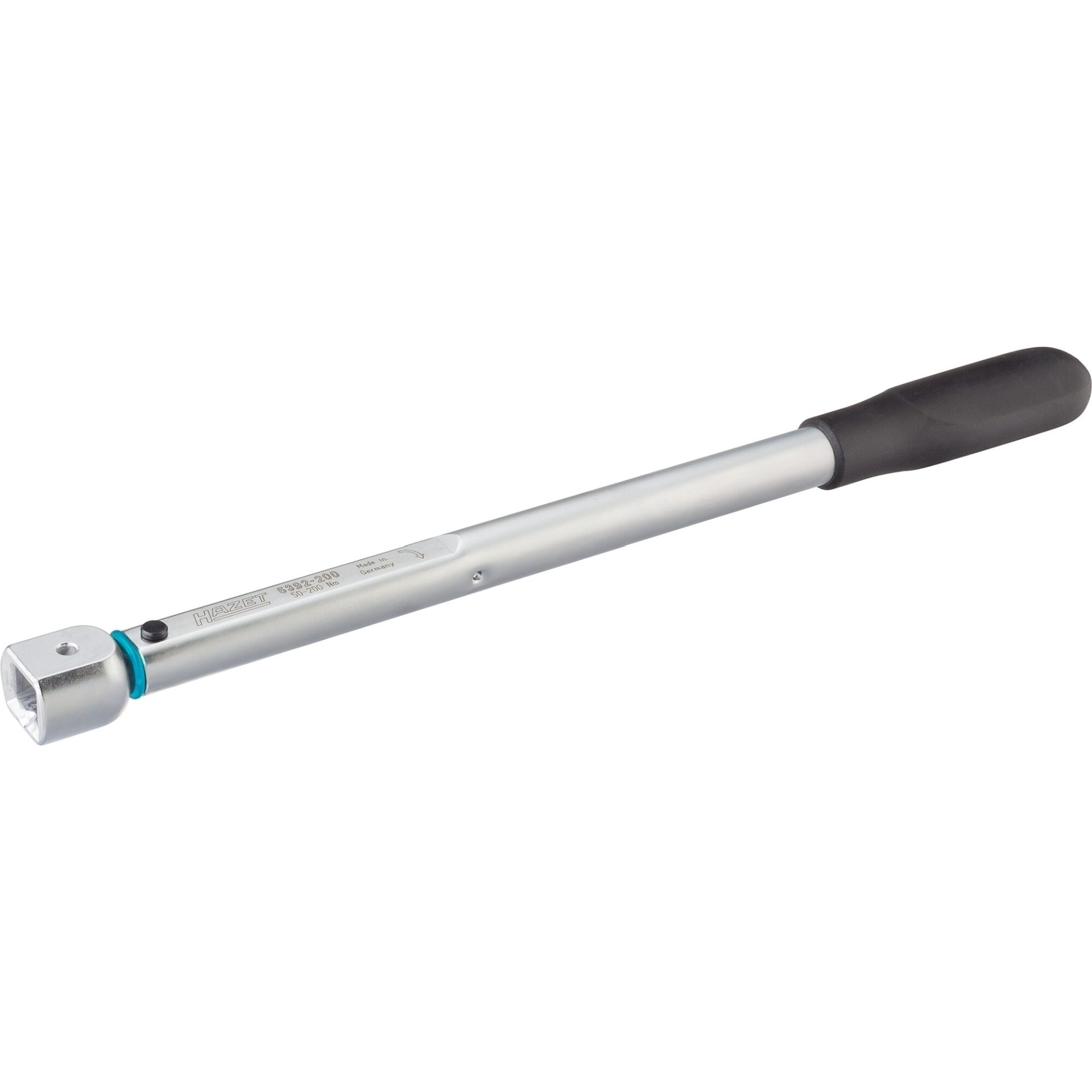

HAZET Torque wrench 6392-200 ∙ Torque range min-max: 50 – 200 Nm ∙ Accuracy: 2% ∙ 14 x 18 mm insert square ∙ 401 mm

Exaktes Anzugsmoment auf den Punkt genau

HAZET Torque wrench 6392-200 ∙ Torque range min-max: 50 – 200 Nm ∙ Accuracy: 2% ∙ 14 x 18 mm insert square ∙ 401 mm

SKU	20805
GTIN	4000896027118
MPN	6392-200
Weight	0.85 kg
Width	0.06 m
Length	0.43 m
Height	0.06 m

193,70 €

Maße 401 mm

Besonders geeignet für Industrieanwendung und Einsatz in Serienfertigung
Genauigkeit ± 2 % (6391-10: 6 %) vom eingestellten Wert (in Betätigungsrichtung)
Made in Germany
Norm DIN EN ISO 6789-2:2017
Abtrieb 14 x 18 mm Einsteck-Vierkant hohl

incl. VAT plus shipping

Delivery time: 3-5 Werktage

Stück

Description

• Accuracy ± 2% (6391-10: 6%) of the scale value (in direction of actuation) - Can be used for right-hand and left-hand threads by turning the insert tool. • Plug-and-socket connection to hold insert tools. • Permanently adjustable value. • Especially suitable for application in industrial series production. • Adjustment of the desired torque value with adjustment wrench 6399 together with HAZET torque tester 7901E ∙ 7902E ∙ 7903E or any other suitable device. • All wrenches of this series (HAZET 6391-6392) are without a scale. • With calibration certificate and serial number. • DIN EN ISO 6789-2:2017. • Made in Germany. • Output: 14 x 18 mm insert square. • Dimensions / length: 401 mm. • Net weight: 0.69 kg. • Torque range min-max: 50 – 200 Nm. • Accuracy: 2 %. • Effective torque wrench length min.-max. I1 mm: 397.00 – 397.00 Nm. • Actuating force min.-max. kg: 12.8 – 51.4 kg. • Inside micrometre of the adjusting tool l2: 38.5 mm. • Head Thickness a: 23 mm. • Head Width b: 30 mm. SYSTEM 6300 CT Industrial insert torque wrenches2 – 320 N·m ∙ with insert square ∙ fixed adjustable value ∙ accuracy ± 2 %.

Features

Features
Abtrieb	14 x 18 mm Einsteck-Vierkant hohl
Anzugsmoment maximal [Nm]	200 Nm
Anzugsmoment minimal [Nm]	50 Nm
Betätigungskraft max. kg	51.4 kg
Betätigungskraft min. kg	12.8 kg
Branche	Industrie
CrossReferenz Bundeswehr	5120123337548
CrossReferenz Gedore	7578-00
Ersatzteil	6392-04
Genauigkeit	2 %
Kopfbreite b	30 mm
Kopfstärke a	23 mm
Länge	401 mm
Maße	401 mm
Netto-Gewicht (kg)	0.69 kg
Umrechnung Nm in lbf.ft (max)	147.51 lbf.ft
Umrechnung Nm in lbf.ft (min)	36.88 lbf.ft
Verwendung	6414
Wirklänge des Drehmoment-Schlüssels l1 mm	359 mm
Wirklänge des Drehmoment-Schlüssels max. l1 mm	397.00 mm
Wirklänge des Drehmoment-Schlüssels min. l1 mm	397.00 mm
Wirklänge des Drehmoment-Schlüssels min.-max. l1 mm	397.00 - 397.00
Bezeichnung Produktgruppe	SYSTEM 6300CT Industrie Einsteck-Drehmomentschlüssel · 2 - 320 Nm · mit Einsteck-Vierkant · fest einstellbarer Wert · Genauigkeit ± 2 %
Norm	DIN EN ISO 6789-2:2017
Produktempfehlung	6282-1CT
Service-Paket	SP-10
Verpackung außen	Hexa-Drehpack
