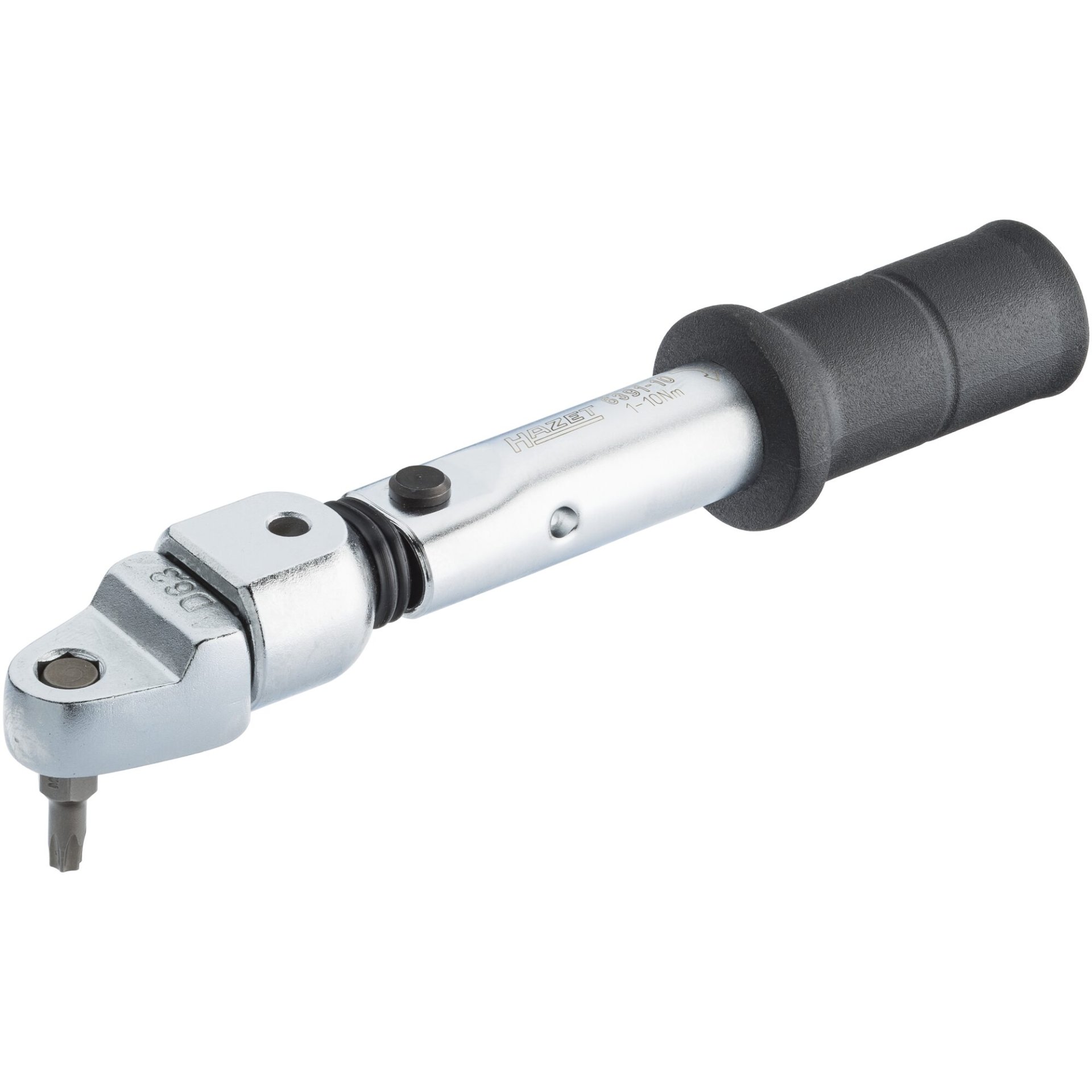

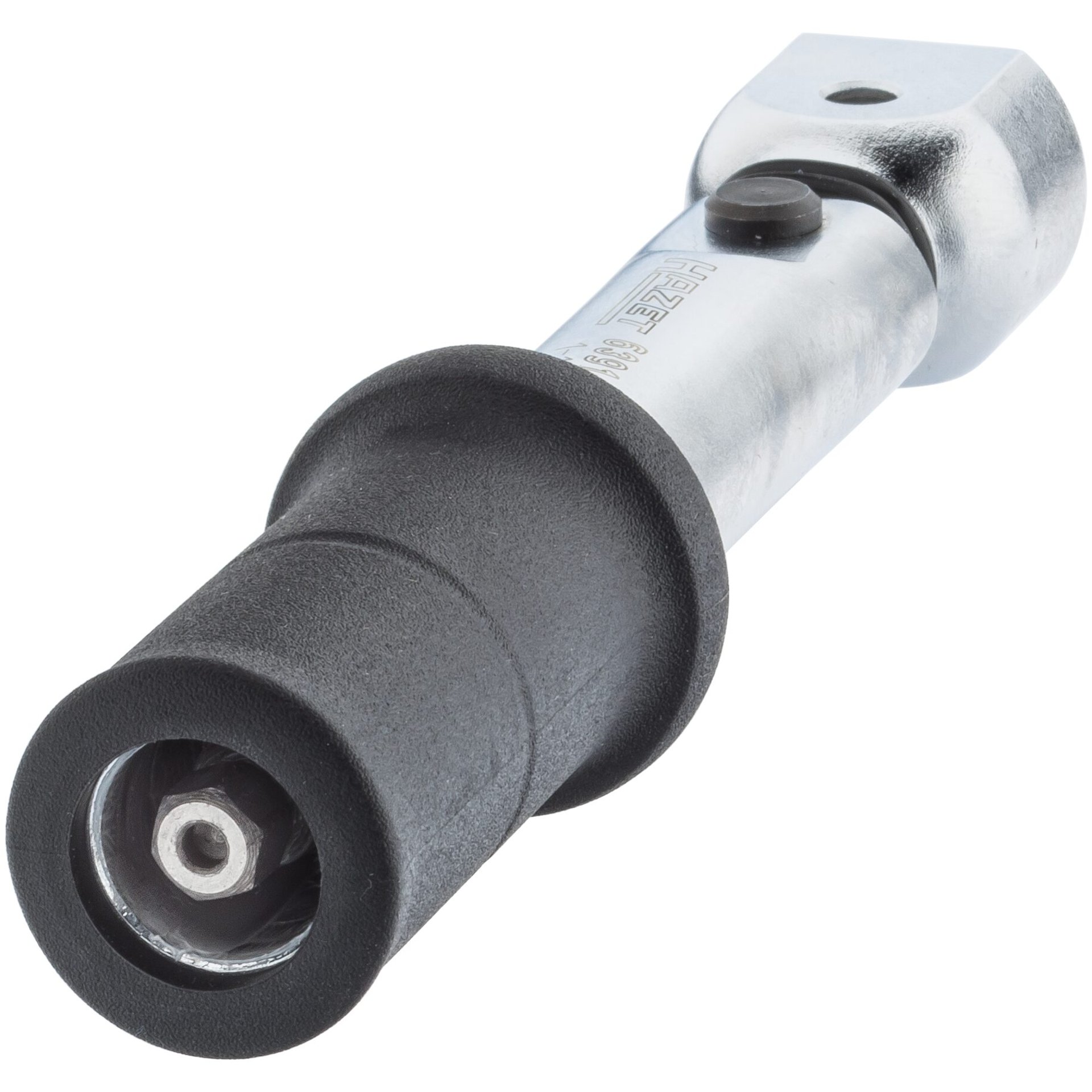

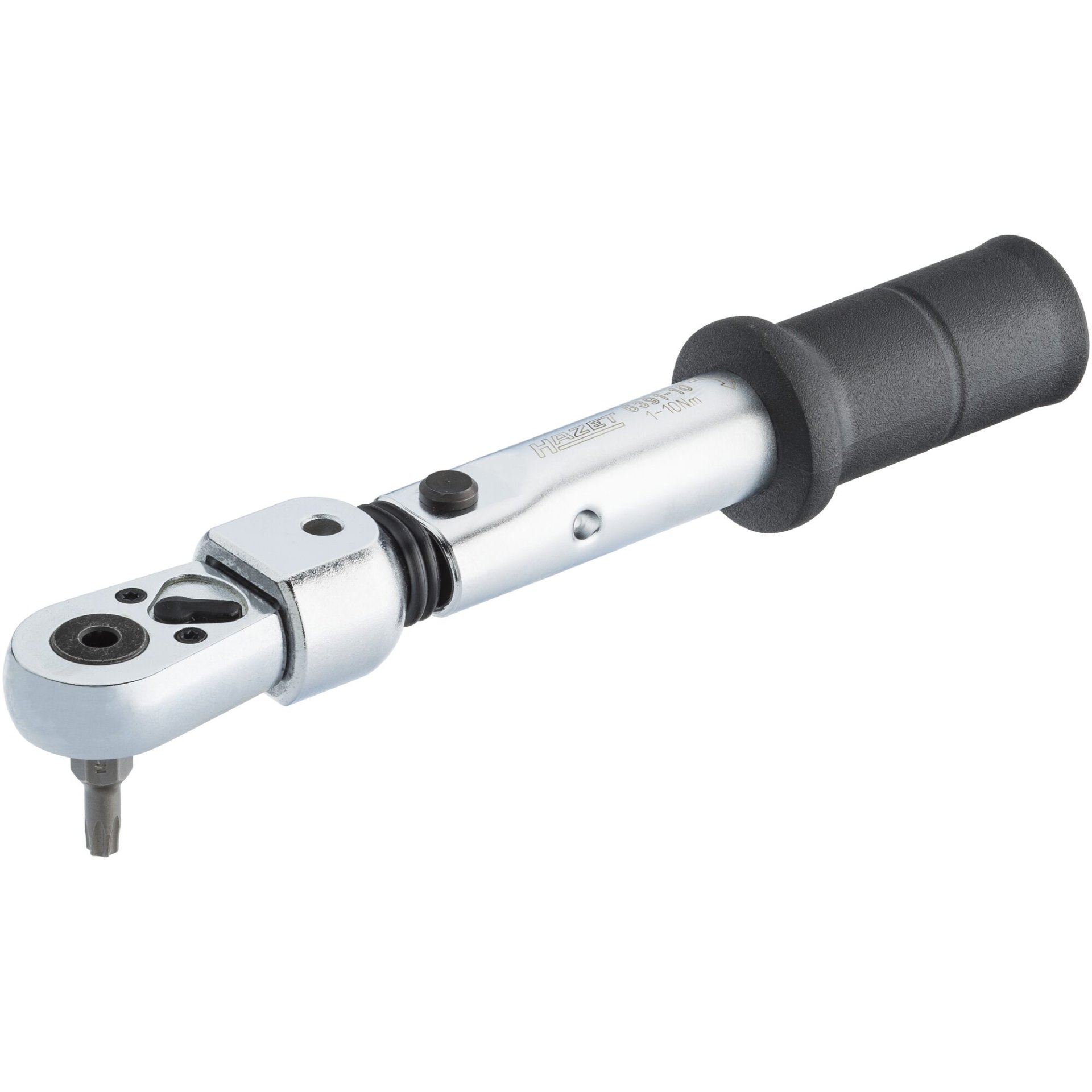

HAZET Torque wrench 6391-10 ∙ Torque range min-max: 1 – 10 Nm ∙ Accuracy: 6% ∙ 9 x 12 mm insert square ∙ 124 mm

Verlässliche Kraftdosierung bei jeder Verschraubung

HAZET-Werk

HAZET Torque wrench 6391-10 ∙ Torque range min-max: 1 – 10 Nm ∙ Accuracy: 6% ∙ 9 x 12 mm insert square ∙ 124 mm

SKU	9900411802
GTIN	4000896208951
MPN	6391-10
Weight	0.26 kg
Width	0.07 m
Length	0.25 m
Height	0.07 m

213,32 €

Anzugsmoment maximal [Nm] 10

Besonders geeignet für Industrieanwendung und Einsatz in Serienfertigung
Besonders handlich durch kurze Ausführung
Made in Germany
Norm DIN EN ISO 6789-2:2017
Abtrieb 9 x 12 mm Einsteck-Vierkant hohl

incl. VAT plus shipping

Delivery time: 3-5 Werktage

Stück

Description

Application: - Especially suitable for industrial application and use in series production. • Particularly easy to use thanks to short design. • Universal application thanks to connection for insert tools. • Accuracy ± 2% (6391-10: 6%) of the scale value (in direction of actuation) - Can be used for right-hand and left-hand threads by turning the insert tool. • Plug-and-socket connection to hold insert tools. • Permanently adjustable value. • Especially suitable for application in industrial series production. • Adjustment of the desired torque value with adjustment wrench 6399 together with HAZET torque tester 7901E ∙ 7902E ∙ 7903E or any other suitable device. - All wrenches of this series (HAZET 6391-6392) are without a scale. • With calibration certificate and serial number. • DIN EN ISO 6789-2:2017. • Made in Germany. • Output: 9 x 12 mm insert square. • Dimensions / length: 124 mm. • Torque range min-max: 1 – 10 Nm. • Accuracy: 6 %. • Effective torque wrench length min.-max. I1 mm: 121.00 – 121.00 Nm. • Actuating force min.-max. kg: 0.8 – 8.4 kg. • Inside micrometre of the adjusting tool l2: 19.5 mm. • Head Thickness a: 17 mm. • Head Width b: 22 mm. SYSTEM 6300 CT Industrial insert torque wrenches2 – 320 N·m ∙ with insert square ∙ fixed adjustable value ∙ accuracy ± 2 %.

Features

Features
Abtrieb	9 x 12 mm Einsteck-Vierkant hohl
Anzugsmoment maximal [Nm]	10 Nm
Anzugsmoment minimal [Nm]	1 Nm
Betätigungskraft max. kg	8.4 kg
Betätigungskraft min. kg	0.8 kg
Branche	Industrie
CrossReferenz Bundeswehr	-
CrossReferenz Gedore	-
Ersatzteil	SP-10
Genauigkeit	6 %
Kopfbreite b	22 mm
Kopfstärke a	17 mm
Länge	124 mm
Maße	124 mm
Netto-Gewicht (kg)	- kg
Umrechnung Nm in lbf.ft (max)	7.38 lbf.ft
Umrechnung Nm in lbf.ft (min)	0.74 lbf.ft
Verwendung	2597
Wirklänge des Drehmoment-Schlüssels l1 mm	102 mm
Wirklänge des Drehmoment-Schlüssels max. l1 mm	121.00 mm
Wirklänge des Drehmoment-Schlüssels min. l1 mm	121.00 mm
Wirklänge des Drehmoment-Schlüssels min.-max. l1 mm	121.00 - 121.00
Bezeichnung Produktgruppe	SYSTEM 6300CT Industrie Einsteck-Drehmomentschlüssel · 2 - 320 Nm · mit Einsteck-Vierkant · fest einstellbarer Wert · Genauigkeit ± 2 %
Norm	DIN EN ISO 6789-2:2017
Produktempfehlung	6110-1CT
Service-Paket	SP-10
Verpackung außen	Hexa-Drehpack
CrossReferenz Mercedes-Benz Pkw	-
Fahrzeug-Hersteller Pkw	-
