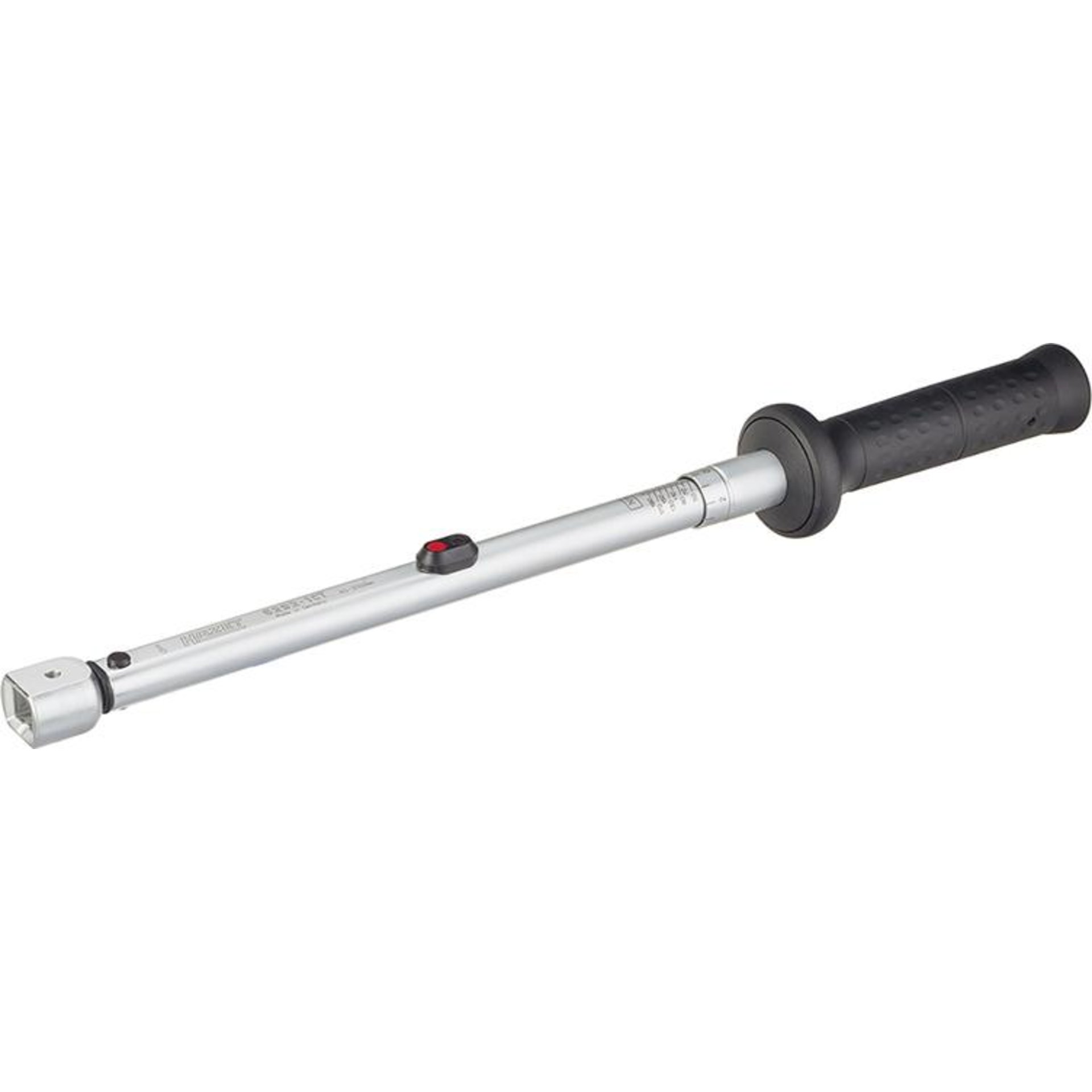

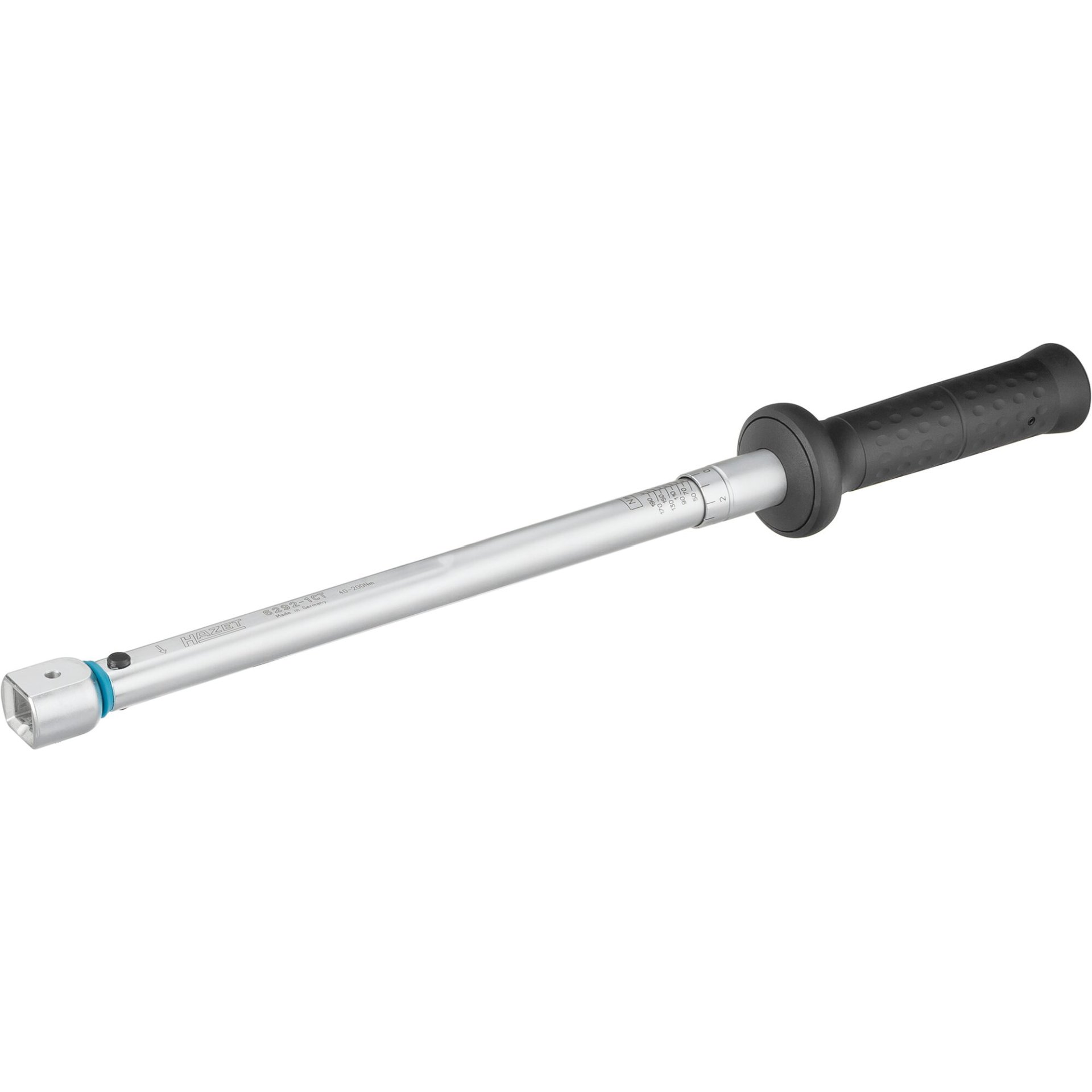

HAZET Torque wrench 6292-1CT ∙ Torque range min-max: 40 – 200 Nm ∙ Accuracy: 2% ∙ 14 x 18 mm insert square ∙ 511 mm

Sichere Aufbewahrung in Safe Box mit Sichtfenster

HAZET-Werk

HAZET Torque wrench 6292-1CT ∙ Torque range min-max: 40 – 200 Nm ∙ Accuracy: 2% ∙ 14 x 18 mm insert square ∙ 511 mm

SKU	62720035
GTIN	4000896026135
MPN	6292-1CT
Weight	1.83 kg
Width	0.07 m
Length	0.64 m
Height	0.08 m

480,82 €

Maße 511 mm

Steckverbindung zur Aufnahme von Einsteckwerkzeugen
Genauigkeit ± 2 % vom Skalenwert (in Betätigungsrichtung)
Made in Germany
Norm DIN EN ISO 6789-2:2017
Abtrieb 14 x 18 mm Einsteck-Vierkant hohl

incl. VAT plus shipping

Delivery time: 3-5 Werktage

Stück

Description

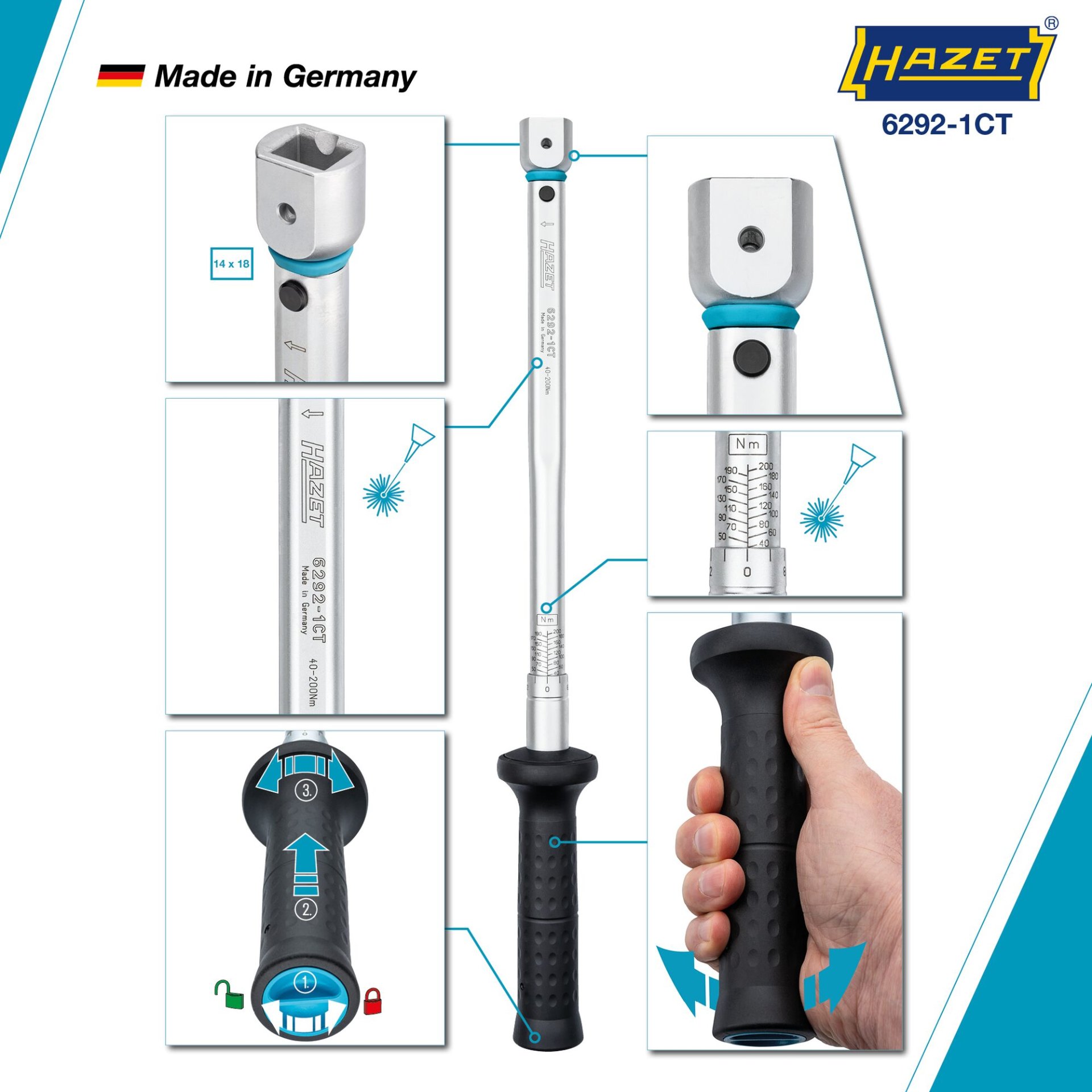

• Plug connection to hold insert tools. • Accuracy ± 2 % of the scale value (in direction of actuation) - Can be used for right-hand and left-hand threads by turning the insert tool. • Safety:• Haptic (close-gap release). • Audible (“click” sound). • With calibration certificate and serial number. • Easy and safe adjustment of the desired torque value by turning the handle. • Secure storage in safe box with display window. • DIN EN ISO 6789-2:2017. • Made in Germany. • Output: 14 x 18 mm insert square. • Dimensions / length: 511 mm. • Net weight: 1.05 kg. • Torque range min-max: 40 – 200 Nm. • Accuracy: 2 %. • Scale Graduation (Nm): 1 Nm. • Effective torque wrench length min.-max. I1 mm: 478.00 – 455.44 Nm. • Actuating force min.-max. kg: 8.5 – 44.8 kg. • Inside micrometre of the adjusting tool l2: 38.5 mm. • Head Thickness a: 23 mm. • Head Width b: 30 mm. • No more turning back: Continuous long-term tests on the 5000 series and 6000 series of HAZET torque wrenches have demonstrated that turning them back to the smallest scale value is not required. SYSTEM 6200-1 CT Insert torque wrenches2 – 500 N·m ∙ with insert square ∙ accuracy ± 2 / 4 %.

Features

Features
Abtrieb	14 x 18 mm Einsteck-Vierkant hohl
Anzugsmoment maximal [Nm]	200 Nm
Anzugsmoment minimal [Nm]	40 Nm
Betätigungskraft max. kg	44.8 kg
Betätigungskraft min. kg	8.5 kg
Branche	Industrie
CrossReferenz BMW	5836476
CrossReferenz Bundeswehr	5120121866058
CrossReferenz Gedore	4201-01
CrossReferenz Mercedes-Benz Pkw	001-589-67-21-00DC
Ersatzteil	6060BX-6
Fahrzeug-Hersteller Pkw	BMW
Genauigkeit	2 %
Kopfbreite b	30 mm
Kopfstärke a	23 mm
Länge	511 mm
Maße	511 mm
Netto-Gewicht (kg)	1.05 kg
Skaleneinteilung (Nm)	1 Nm
Umrechnung Nm in lbf.ft (max)	147.51 lbf.ft
Umrechnung Nm in lbf.ft (min)	29.5 lbf.ft
Verwendung	6414
Wirklänge des Drehmoment-Schlüssels l1 mm	440 mm
Wirklänge des Drehmoment-Schlüssels max. l1 mm	455.44 mm
Wirklänge des Drehmoment-Schlüssels min. l1 mm	478.00 mm
Wirklänge des Drehmoment-Schlüssels min.-max. l1 mm	478.00 - 455.44
Zubehör	6060BX-6
Bezeichnung Produktgruppe	SYSTEM 6200-1 CT Einsteck-Drehmomentschlüssel · 2 - 500 Nm · mit Einsteck-Vierkant · Genauigkeit ± 2 / 4 %
Norm	DIN EN ISO 6789-2:2017
Produktempfehlung	SP-10
Service-Paket	SP-10
Signalknopf	true
CrossReferenz Claas (Nkw)	-
CrossReferenz Volkswagen	1332
