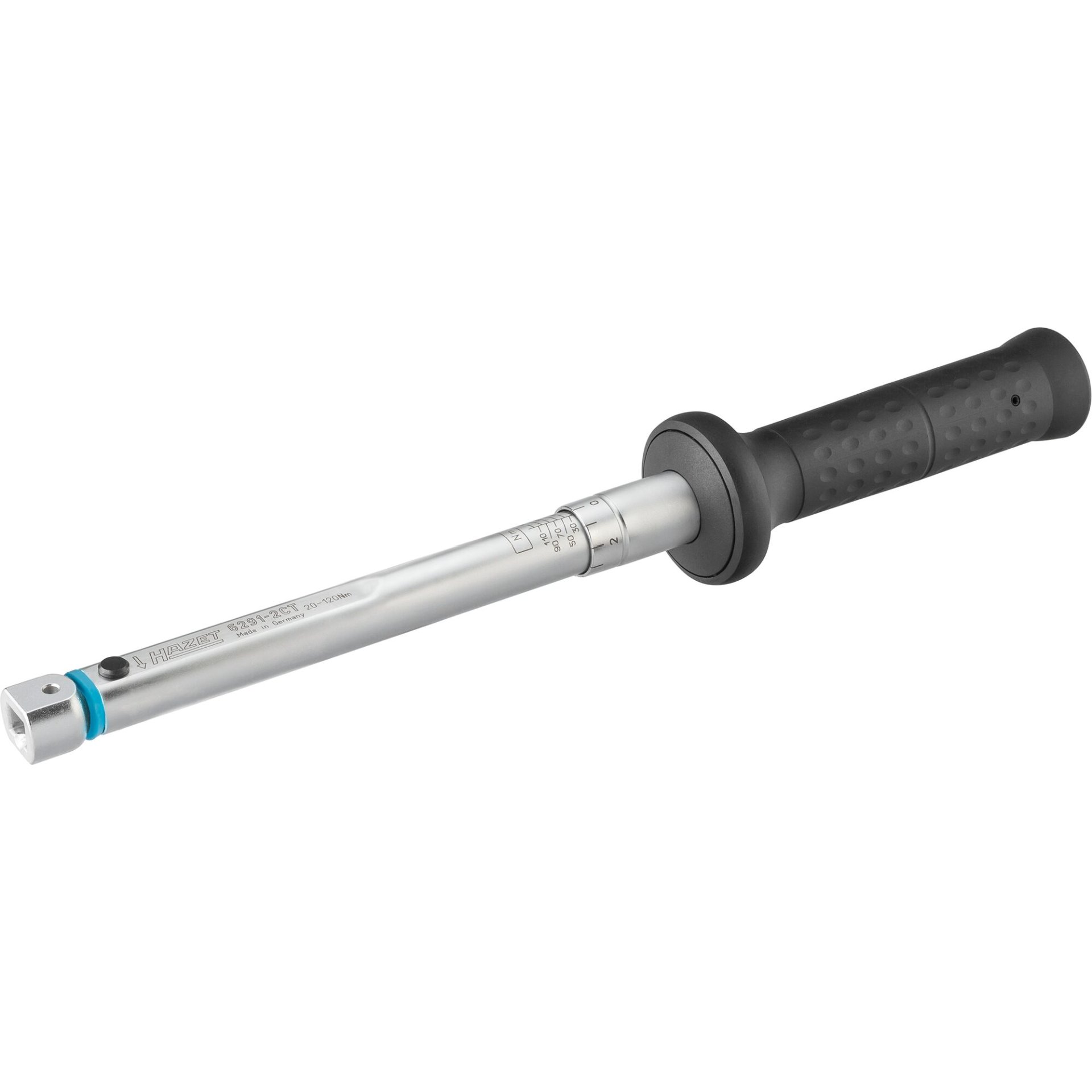

HAZET Torque wrench 6291-2CT ∙ Torque range min-max: 20 – 120 Nm ∙ Accuracy: 2% ∙ 9 x 12 mm insert square ∙ 389 mm

Sichere Aufbewahrung in Safe Box mit Sichtfenster

HAZET-Werk

HAZET Torque wrench 6291-2CT ∙ Torque range min-max: 20 – 120 Nm ∙ Accuracy: 2% ∙ 9 x 12 mm insert square ∙ 389 mm

SKU	62720025
GTIN	4000896026104
MPN	6291-2CT
Weight	1.5 kg
Width	0.07 m
Length	0.53 m
Height	0.07 m

412,07 €

Maße 389 mm

Steckverbindung zur Aufnahme von Einsteckwerkzeugen
Genauigkeit ± 2 % vom Skalenwert (in Betätigungsrichtung)
Made in Germany
Norm DIN EN ISO 6789-2:2017
Abtrieb 9 x 12 mm Einsteck-Vierkant hohl

incl. VAT plus shipping

Delivery time: 3-5 Werktage

Stück

Description

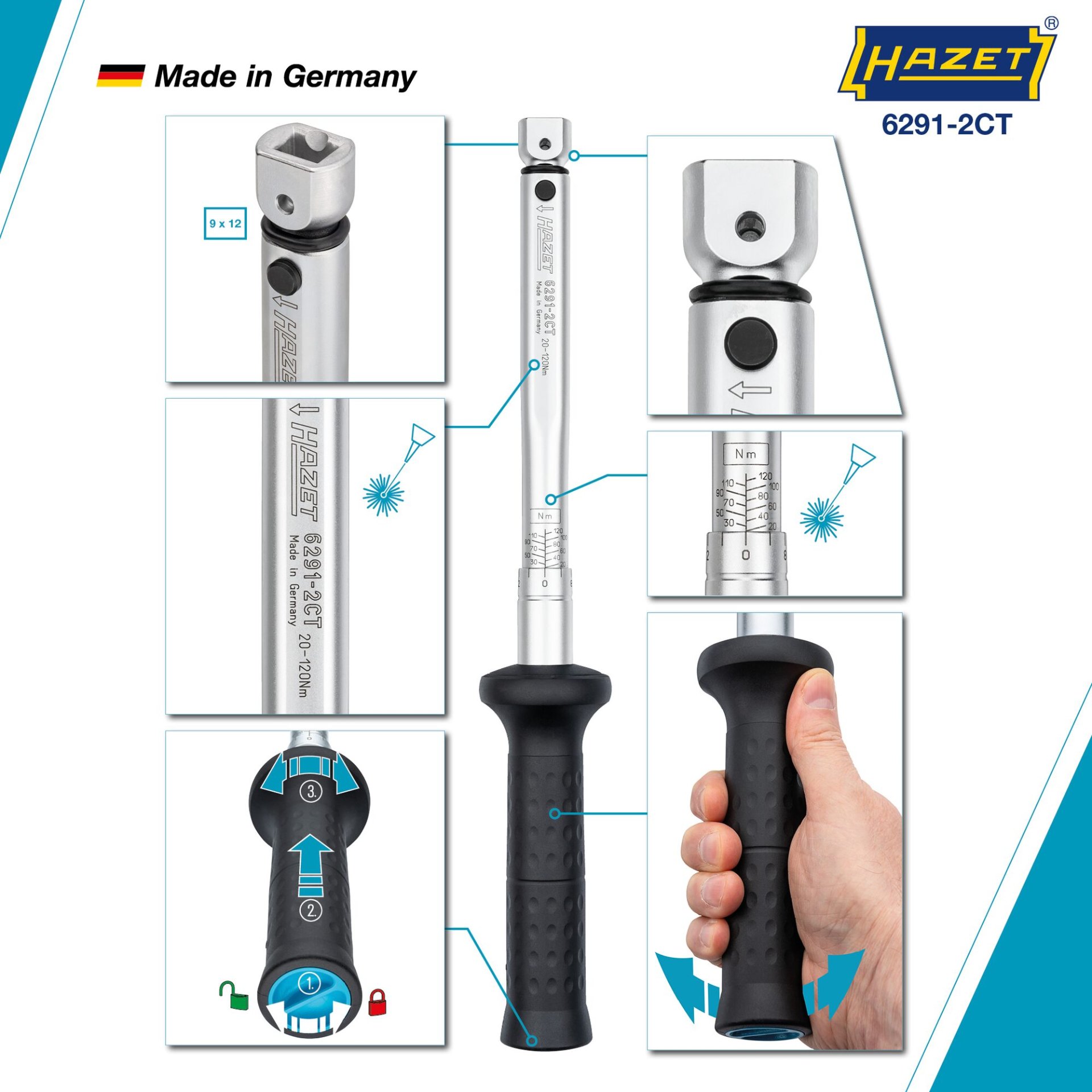

• Plug connection to hold insert tools. • Accuracy ± 2 % of the scale value (in direction of actuation) - Can be used for right-hand and left-hand threads by turning the insert tool. • Safety:• Haptic (close-gap release). • Audible (“click” sound). • With calibration certificate and serial number. • Easy and safe adjustment of the desired torque value by turning the handle. • Secure storage in safe box with display window. • DIN EN ISO 6789-2:2017. • Made in Germany. • Output: 9 x 12 mm insert square. • Dimensions / length: 389 mm. • Net weight: 0.85 kg. • Torque range min-max: 20 – 120 Nm. • Accuracy: 2 %. • Scale Graduation (Nm): 1 Nm. • Effective torque wrench length min.-max. I1 mm: 348.30 – 334.20 Nm. • Actuating force min.-max. kg: 5.9 – 36.6 kg. • Inside micrometre of the adjusting tool l2: 30 mm. • Head Thickness a: 18 mm. • Head Width b: 23 mm. • No more turning back: Continuous long-term tests on the 5000 series and 6000 series of HAZET torque wrenches have demonstrated that turning them back to the smallest scale value is not required. SYSTEM 6200-1 CT Insert torque wrenches2 – 500 N·m ∙ with insert square ∙ accuracy ± 2 / 4 %.

Features

Features
Abtrieb	9 x 12 mm Einsteck-Vierkant hohl
Anzugsmoment maximal [Nm]	120 Nm
Anzugsmoment minimal [Nm]	20 Nm
Betätigungskraft max. kg	36.6 kg
Betätigungskraft min. kg	5.9 kg
Branche	Industrie
CrossReferenz BMW	0008596.9
CrossReferenz Bundeswehr	-
CrossReferenz Gedore	4300-01
CrossReferenz Mercedes-Benz Pkw	-
Ersatzteil	6060BX-4
Fahrzeug-Hersteller Pkw	BMW
Genauigkeit	2 %
Kopfbreite b	23 mm
Kopfstärke a	18 mm
Länge	389 mm
Maße	389 mm
Netto-Gewicht (kg)	0.85 kg
Skaleneinteilung (Nm)	1 Nm
Umrechnung Nm in lbf.ft (max)	88.51 lbf.ft
Umrechnung Nm in lbf.ft (min)	14.75 lbf.ft
Verwendung	2597
Wirklänge des Drehmoment-Schlüssels l1 mm	318 mm
Wirklänge des Drehmoment-Schlüssels max. l1 mm	334.20 mm
Wirklänge des Drehmoment-Schlüssels min. l1 mm	348.30 mm
Wirklänge des Drehmoment-Schlüssels min.-max. l1 mm	348.30 - 334.20
Zubehör	6060BX-4
Bezeichnung Produktgruppe	SYSTEM 6200-1 CT Einsteck-Drehmomentschlüssel · 2 - 500 Nm · mit Einsteck-Vierkant · Genauigkeit ± 2 / 4 %
Norm	DIN EN ISO 6789-2:2017
Produktempfehlung	SP-10
Service-Paket	SP-10
Signalknopf	true
CrossReferenz Claas (Nkw)	-
CrossReferenz Volkswagen	-
