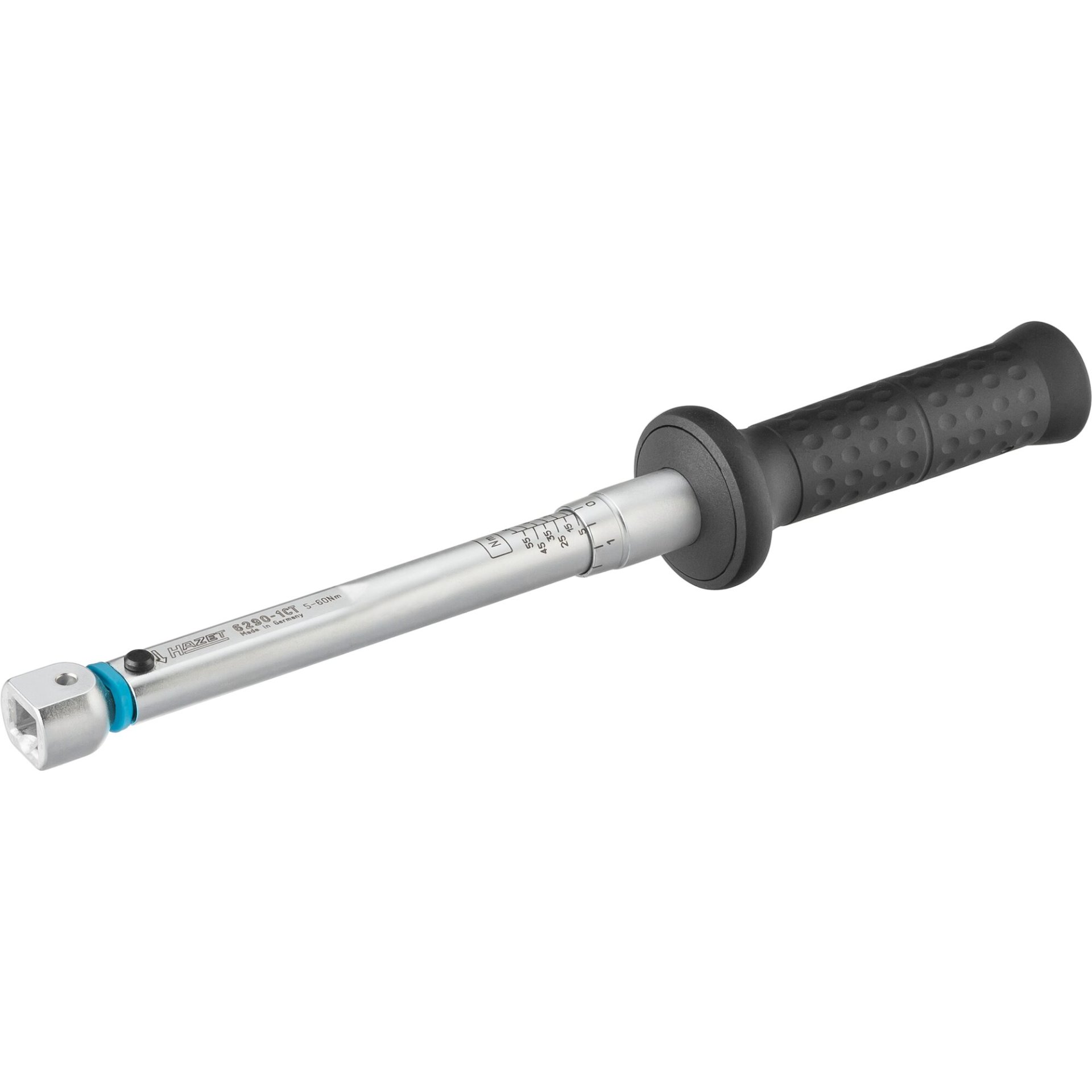

HAZET Torque wrench 6290-1CT ∙ Torque range min-max: 5 – 60 Nm ∙ Accuracy: 2% ∙ 9 x 12 mm insert square ∙ 306 mm

Sichere Aufbewahrung in Safe Box mit Sichtfenster

HAZET-Werk

HAZET Torque wrench 6290-1CT ∙ Torque range min-max: 5 – 60 Nm ∙ Accuracy: 2% ∙ 9 x 12 mm insert square ∙ 306 mm

SKU	62720020
GTIN	4000896026043
MPN	6290-1CT
Weight	0.83 kg
Width	0.07 m
Length	0.42 m
Height	0.07 m

412,07 €

Maße 306 mm

Steckverbindung zur Aufnahme von Einsteckwerkzeugen
Genauigkeit ± 2 % vom Skalenwert (in Betätigungsrichtung)
Made in Germany
Norm DIN EN ISO 6789-2:2017
Abtrieb 9 x 12 mm Einsteck-Vierkant hohl

incl. VAT plus shipping

Delivery time: 3-5 Werktage

Stück

Description

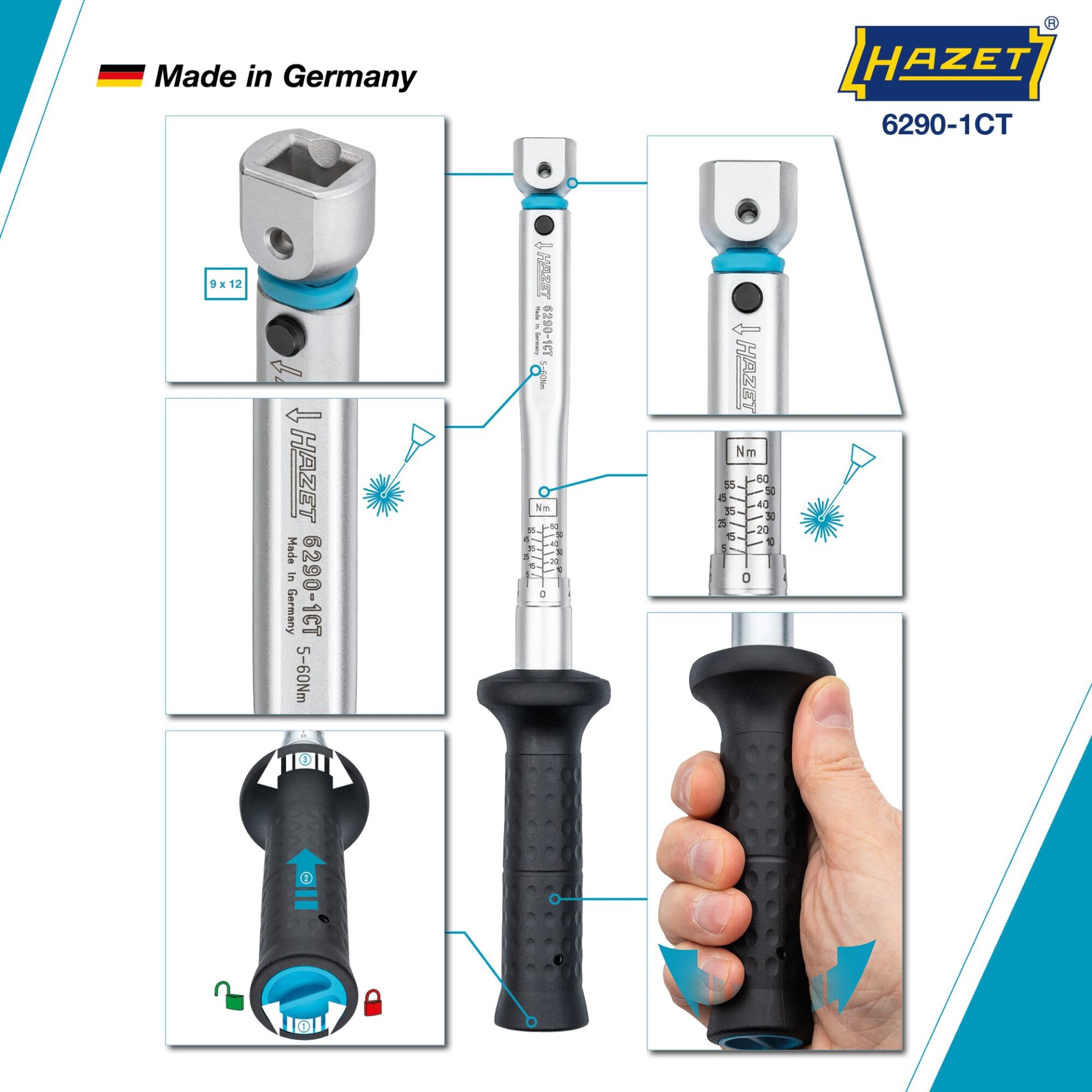

• Plug connection to hold insert tools. • Accuracy ± 2 % of the scale value (in direction of actuation) - Can be used for right-hand and left-hand threads by turning the insert tool. • Safety:• Haptic (close-gap release). • Audible (“click” sound). • With calibration certificate and serial number. • Easy and safe adjustment of the desired torque value by turning the handle. • Secure storage in safe box with display window. • DIN EN ISO 6789-2:2017. • Made in Germany. • Output: 9 x 12 mm insert square. • Dimensions / length: 306 mm. • Net weight: 0.46 kg. • Torque range min-max: 5 – 60 Nm. • Accuracy: 2 %. • Scale Graduation (Nm): 0.5 Nm. • Effective torque wrench length min.-max. I1 mm: 281.52 – 265.02 Nm. • Actuating force min.-max. kg: 1.8 – 23.1 kg. • Inside micrometre of the adjusting tool l2: 30 mm. • Head Thickness a: 17 mm. • Head Width b: 22 mm. • No more turning back: Continuous long-term tests on the 5000 series and 6000 series of HAZET torque wrenches have demonstrated that turning them back to the smallest scale value is not required. SYSTEM 6200-1 CT Insert torque wrenches2 – 500 N·m ∙ with insert square ∙ accuracy ± 2 / 4 %.

Features

Features
Abtrieb	9 x 12 mm Einsteck-Vierkant hohl
Anzugsmoment maximal [Nm]	60 Nm
Anzugsmoment minimal [Nm]	5 Nm
Betätigungskraft max. kg	23.1 kg
Betätigungskraft min. kg	1.8 kg
Branche	Industrie
CrossReferenz BMW	0428251.9
CrossReferenz Bundeswehr	5120121777758
CrossReferenz Gedore	4101-05
CrossReferenz Mercedes-Benz Pkw	001-589-72-21-00DC
Ersatzteil	6060BX-2
Fahrzeug-Hersteller Pkw	BMW
Genauigkeit	2 %
Kopfbreite b	22 mm
Kopfstärke a	17 mm
Länge	306 mm
Maße	306 mm
Netto-Gewicht (kg)	0.46 kg
Skaleneinteilung (Nm)	0.5 Nm
Umrechnung Nm in lbf.ft (max)	44.25 lbf.ft
Umrechnung Nm in lbf.ft (min)	3.69 lbf.ft
Verwendung	2597
Wirklänge des Drehmoment-Schlüssels l1 mm	252 mm
Wirklänge des Drehmoment-Schlüssels max. l1 mm	265.02 mm
Wirklänge des Drehmoment-Schlüssels min. l1 mm	281.52 mm
Wirklänge des Drehmoment-Schlüssels min.-max. l1 mm	281.52 - 265.02
Zubehör	6060BX-2
Bezeichnung Produktgruppe	SYSTEM 6200-1 CT Einsteck-Drehmomentschlüssel · 2 - 500 Nm · mit Einsteck-Vierkant · Genauigkeit ± 2 / 4 %
Norm	DIN EN ISO 6789-2:2017
Produktempfehlung	SP-10
Service-Paket	SP-10
Signalknopf	false
CrossReferenz Claas (Nkw)	-
CrossReferenz Volkswagen	-
