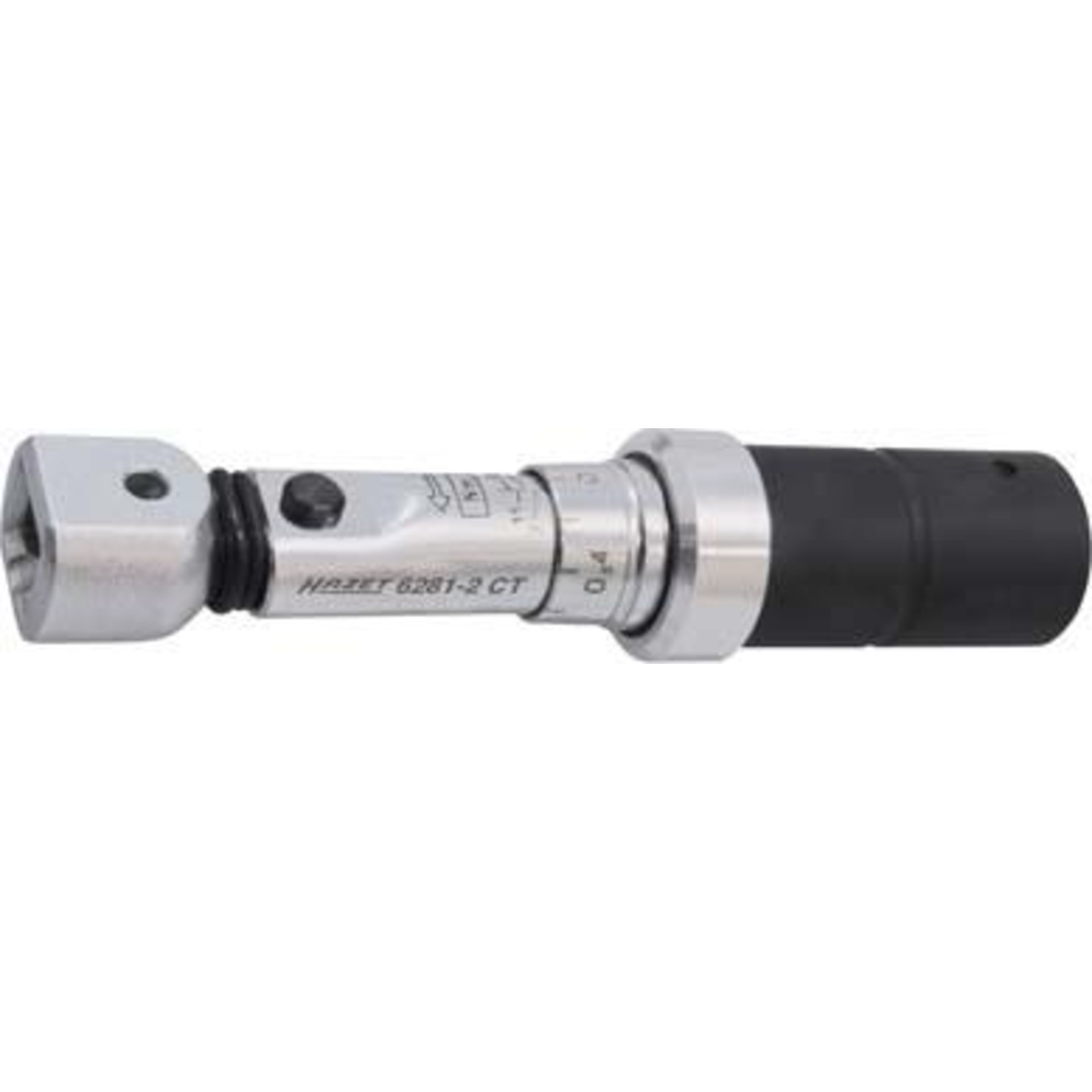

HAZET Torque wrench 6281-2CT ∙ Torque range min-max: 5 – 13 Nm ∙ Accuracy: 4% ∙ 9 x 12 mm insert square ∙ 125.4 mm

Einstellen des gewünschten Drehmomentwertes schnell

HAZET-Werk

HAZET Torque wrench 6281-2CT ∙ Torque range min-max: 5 – 13 Nm ∙ Accuracy: 4% ∙ 9 x 12 mm insert square ∙ 125.4 mm

SKU	62730015
GTIN	4000896183326
MPN	6281-2CT
Weight	0.23 kg
Width	0.04 m
Length	0.13 m
Height	0.04 m

312,64 €

Einstellen des Regelventils des Gastanks am VW Up! und Caddy Bj
2012 → (Einstellung ist nach Aus- oder Einbau notwendig)
Made in Germany
Norm DIN EN ISO 6789-2:2017
Oberfläche hartverchromt

incl. VAT plus shipping

Delivery time: 3-5 Werktage

Stück

Description

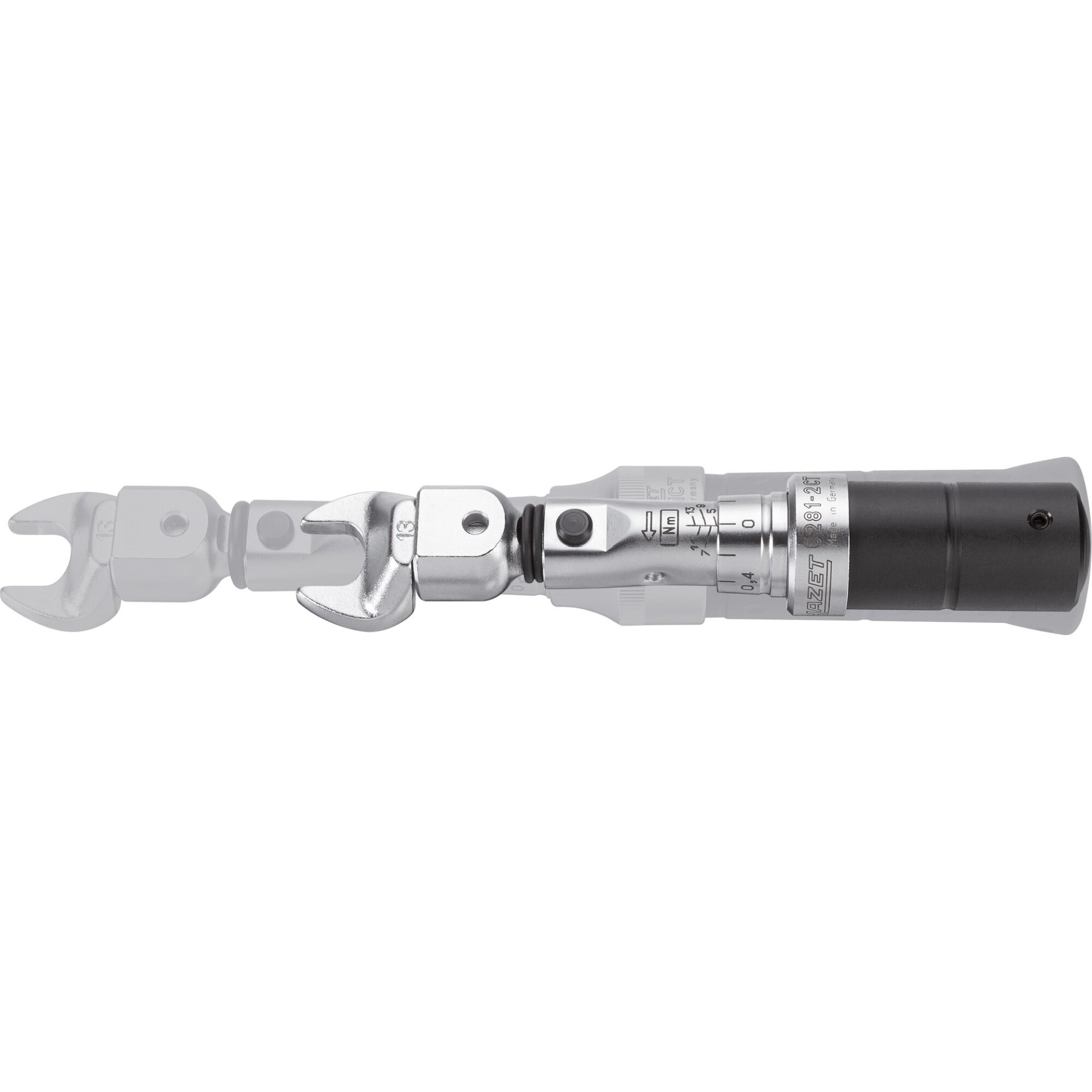

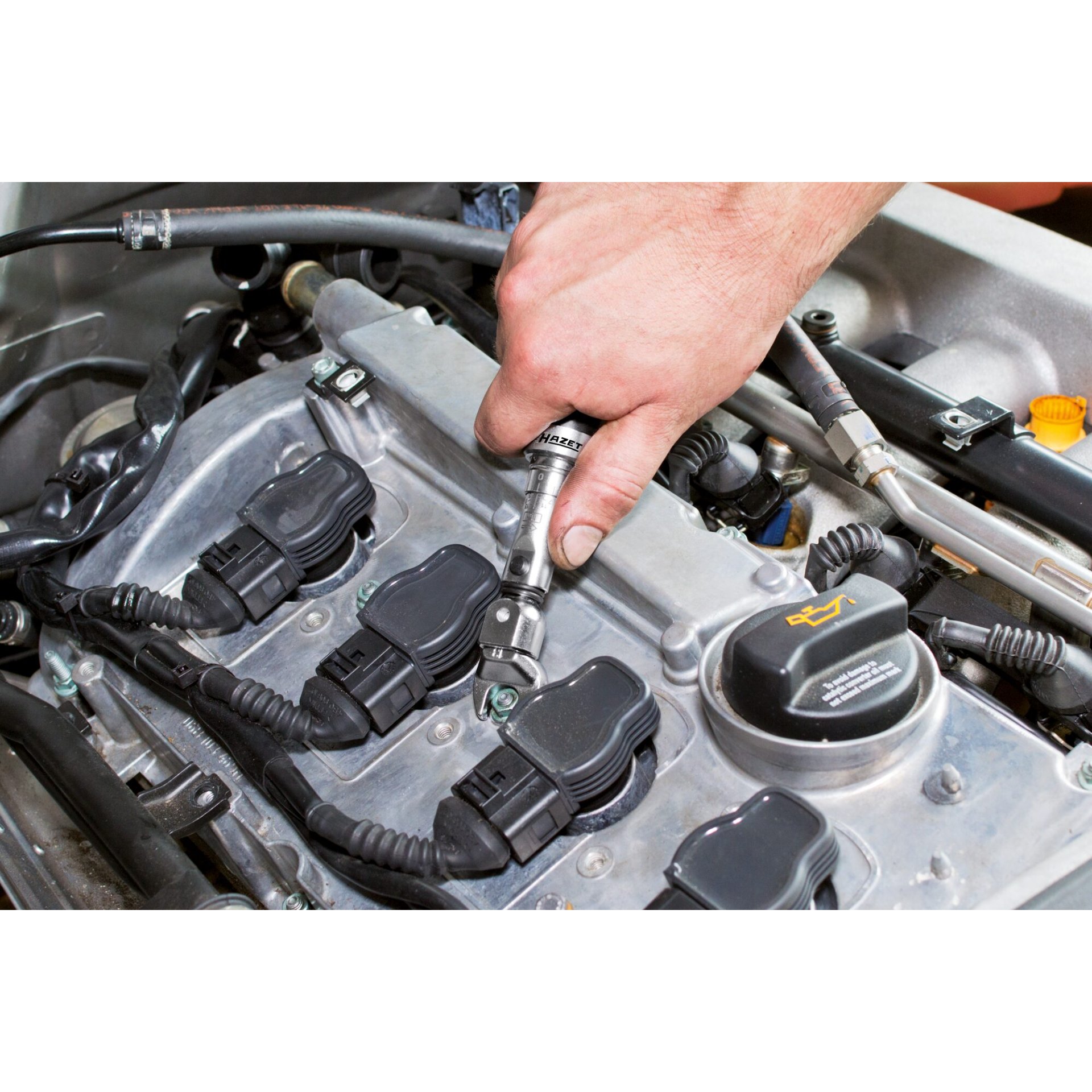

Application: - Regulation of the control valve at the gas tank of VW Up! and Caddy model years 2012 → (adjustment is necessary after installation or removal). • Extra short construction for areas with restricted access. • Plug connection to hold insert tools. • Accuracy ± 4 % of the scale value (in direction of actuation) - Can be used for right-hand and left-hand threads by turning the insert tool. • Safety:• Haptic (close-gap release). • Audible (“click” sound). • With calibration certificate and serial number. • Easy and safe adjustment of the desired torque value by turning the handle. • Surface: hard chrome plated. • DIN EN ISO 6789-2:2017. • Made in Germany. • Output: 9 x 12 mm insert square. • Dimensions / length: 125.4 mm. • Net weight: 0.23 kg. • Torque range min-max: 5 – 13 Nm. • Accuracy: 4 %. • Scale Graduation (Nm): 0.2 Nm. • Effective torque wrench length min.-max. I1 mm: 116.50 – 112.50 Nm. • Actuating force min.-max. kg: 4.4 – 11.8 kg. • Inside micrometre of the adjusting tool l2: 17.5 mm. • Head Thickness a: 17 mm. • Head Width b: 22 mm. • No more turning back: Continuous long-term tests on the 5000 series and 6000 series of HAZET torque wrenches have demonstrated that turning them back to the smallest scale value is not required. SYSTEM 6200-1 CT Insert torque wrenches2 – 500 N·m ∙ with insert square ∙ accuracy ± 2 / 4 %.

Features

Features
Abtrieb	9 x 12 mm Einsteck-Vierkant hohl
Anzugsmoment maximal [Nm]	13 Nm
Anzugsmoment minimal [Nm]	5 Nm
Betätigungskraft max. kg	11.8 kg
Betätigungskraft min. kg	4.4 kg

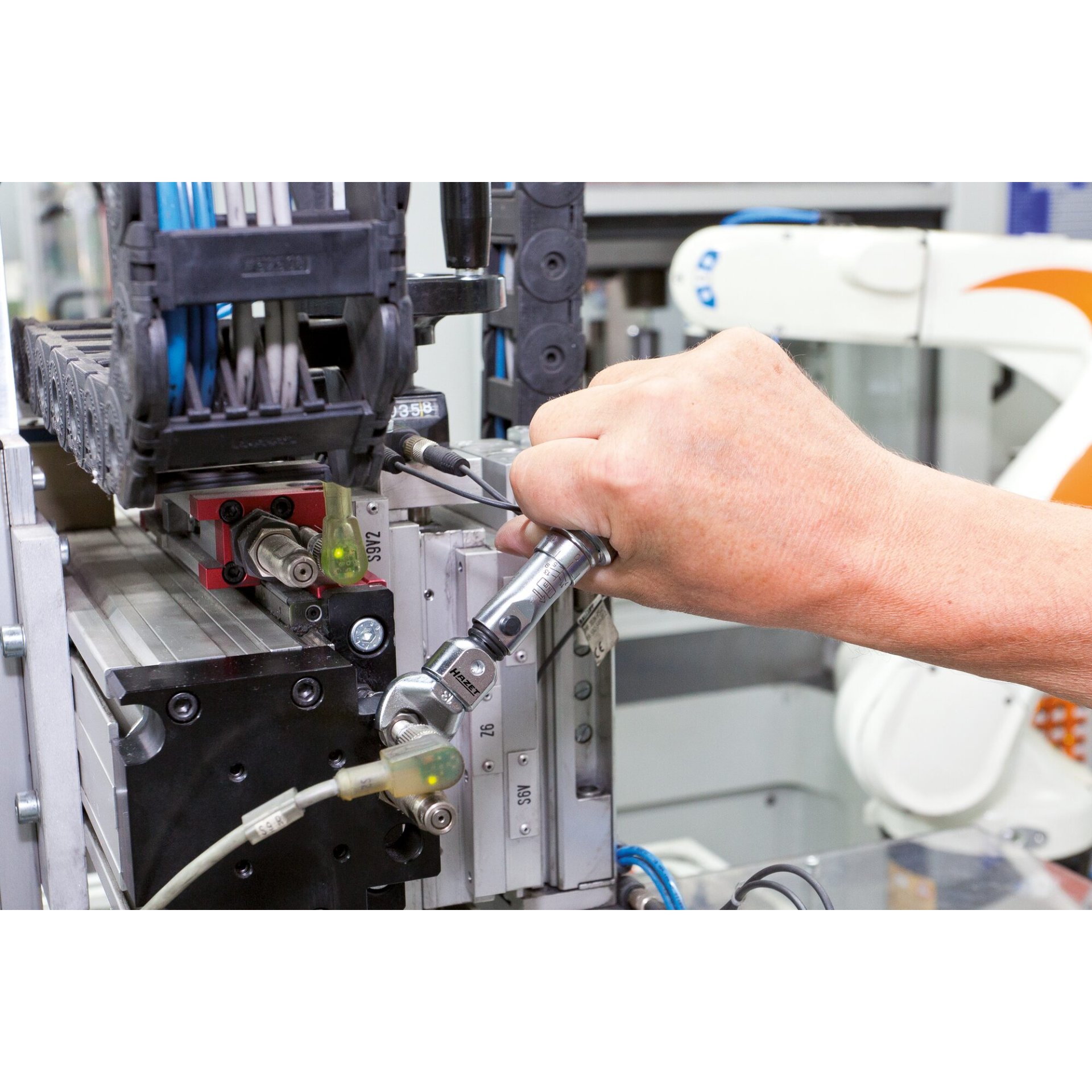

Branche	Industrie
CrossReferenz Volkswagen	VAS 6854
Ersatzteil	6000-4.0-01/50
Fahrzeug-Hersteller Pkw	VOLKSWAGEN
Genauigkeit	4 %
Kopfbreite b	22 mm
Kopfstärke a	17 mm
Länge	125.4 mm
Maße	125.4 mm
Netto-Gewicht (kg)	0.23 kg
Skaleneinteilung (Nm)	0.2 Nm
Umrechnung Nm in lbf.ft (max)	9.59 lbf.ft
Umrechnung Nm in lbf.ft (min)	3.69 lbf.ft
Verwendung	2597
Wirklänge des Drehmoment-Schlüssels l1 mm	99 mm
Wirklänge des Drehmoment-Schlüssels max. l1 mm	112.50 mm
Wirklänge des Drehmoment-Schlüssels min. l1 mm	116.50 mm
Wirklänge des Drehmoment-Schlüssels min.-max. l1 mm	116.50 - 112.50
Bezeichnung Produktgruppe	SYSTEM 6200-1 CT Einsteck-Drehmomentschlüssel · 2 - 500 Nm · mit Einsteck-Vierkant · Genauigkeit ± 2 / 4 %
Norm	DIN EN ISO 6789-2:2017
Oberfläche	hartverchromt
Produktempfehlung	SP-10
Service-Paket	SP-10
Signalknopf	false
