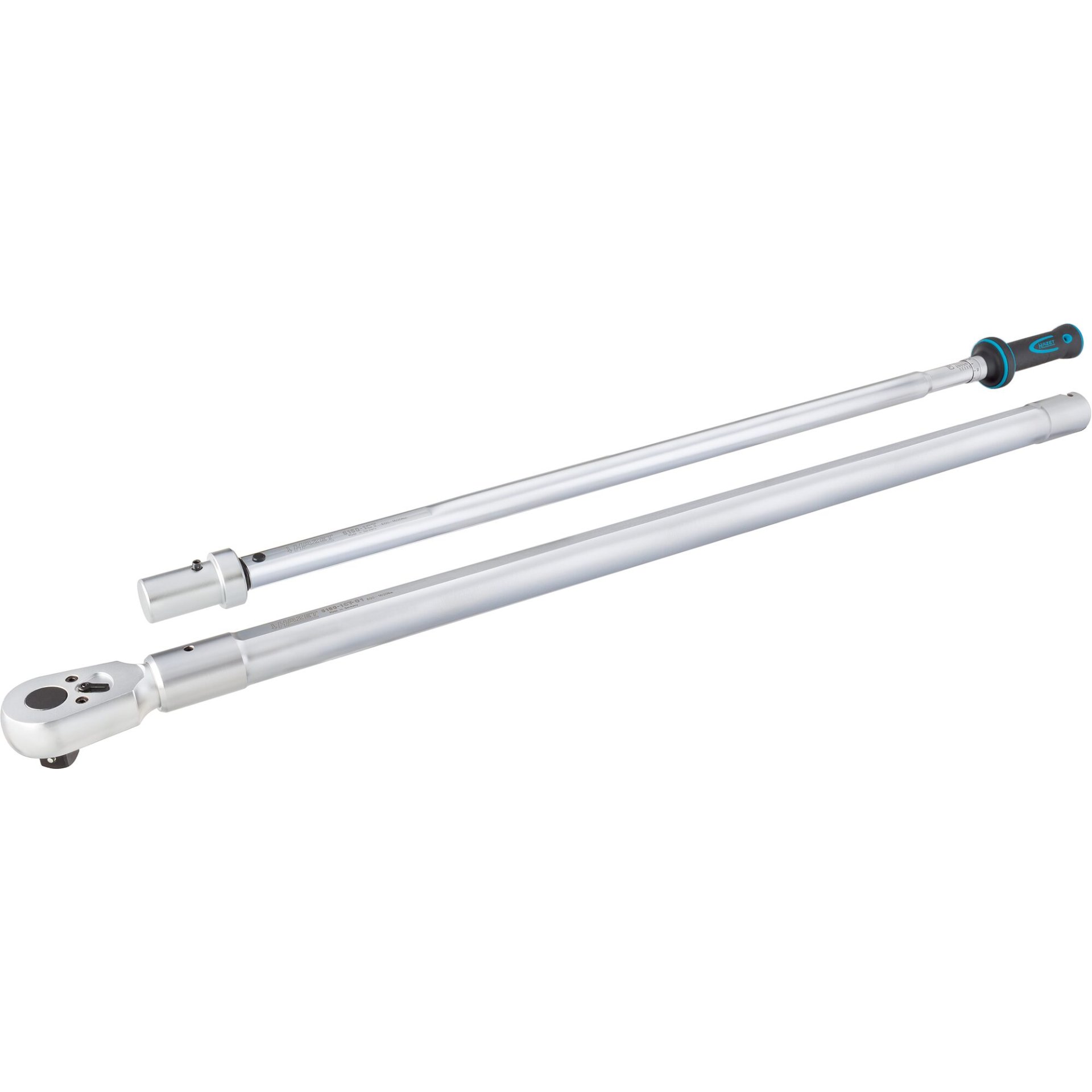

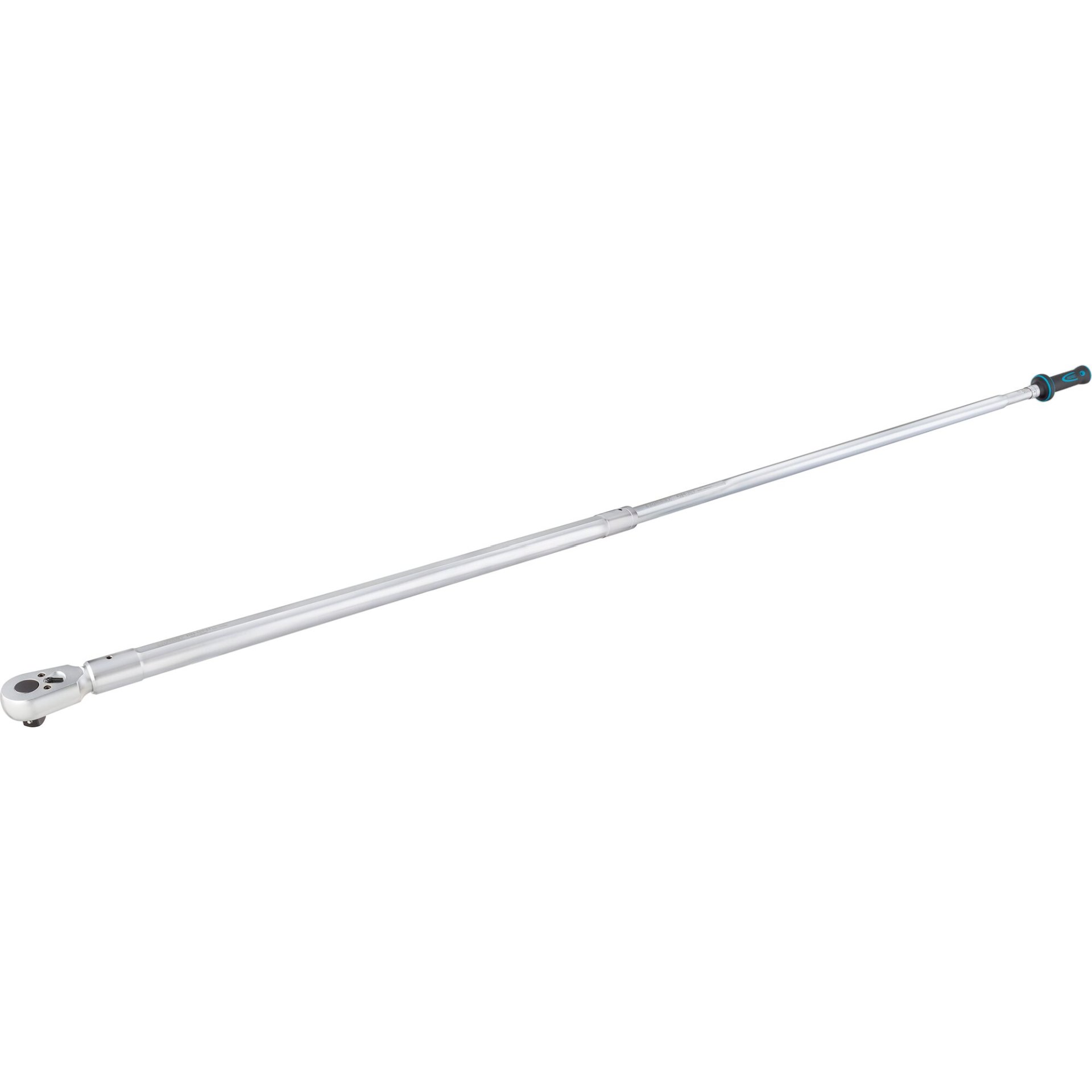

HAZET Torque wrench 6160-1CT ∙ Torque range min-max: 600 – 1600 Nm ∙ Accuracy: 3% ∙ 1 inch (25 mm) square, solid ∙ 2455 mm

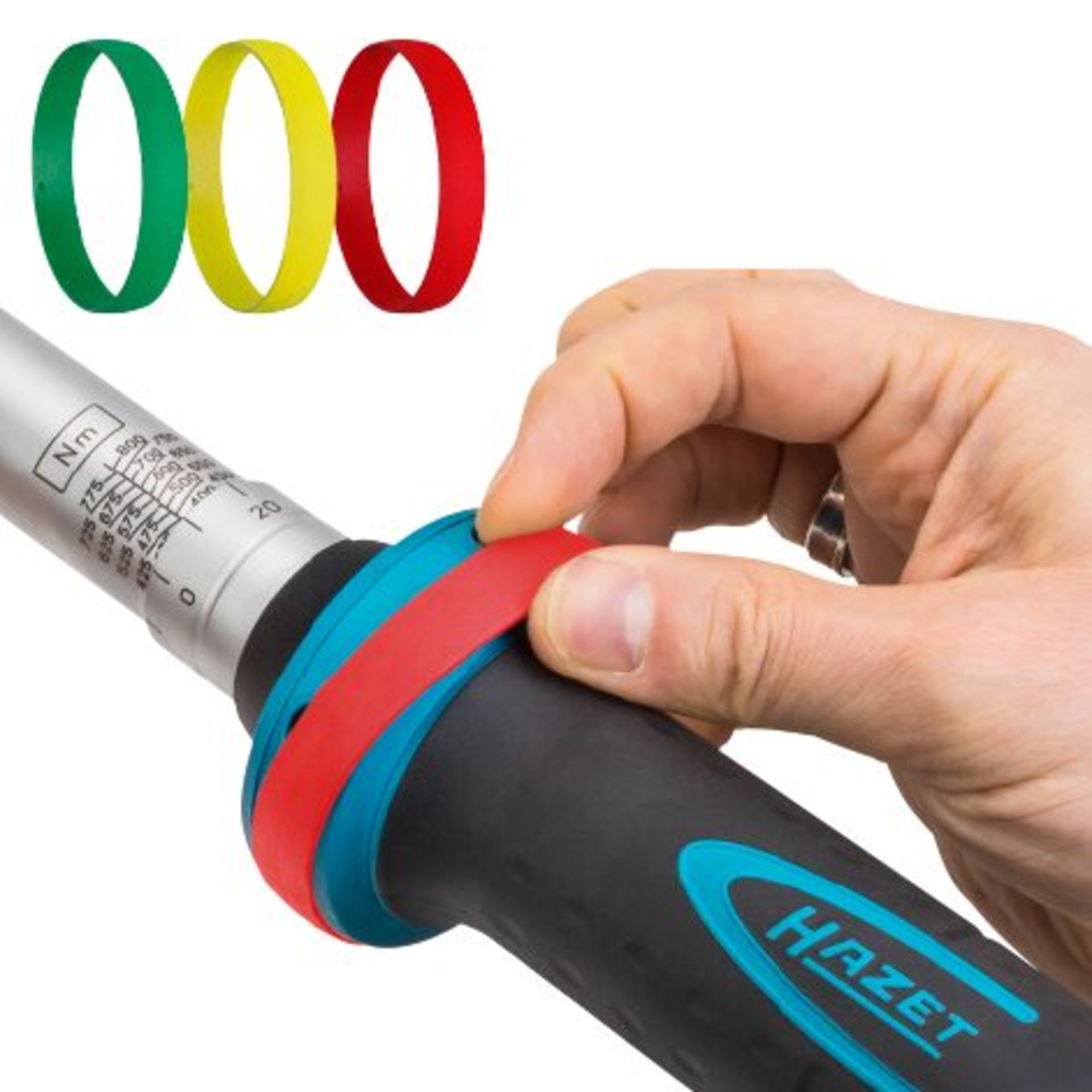

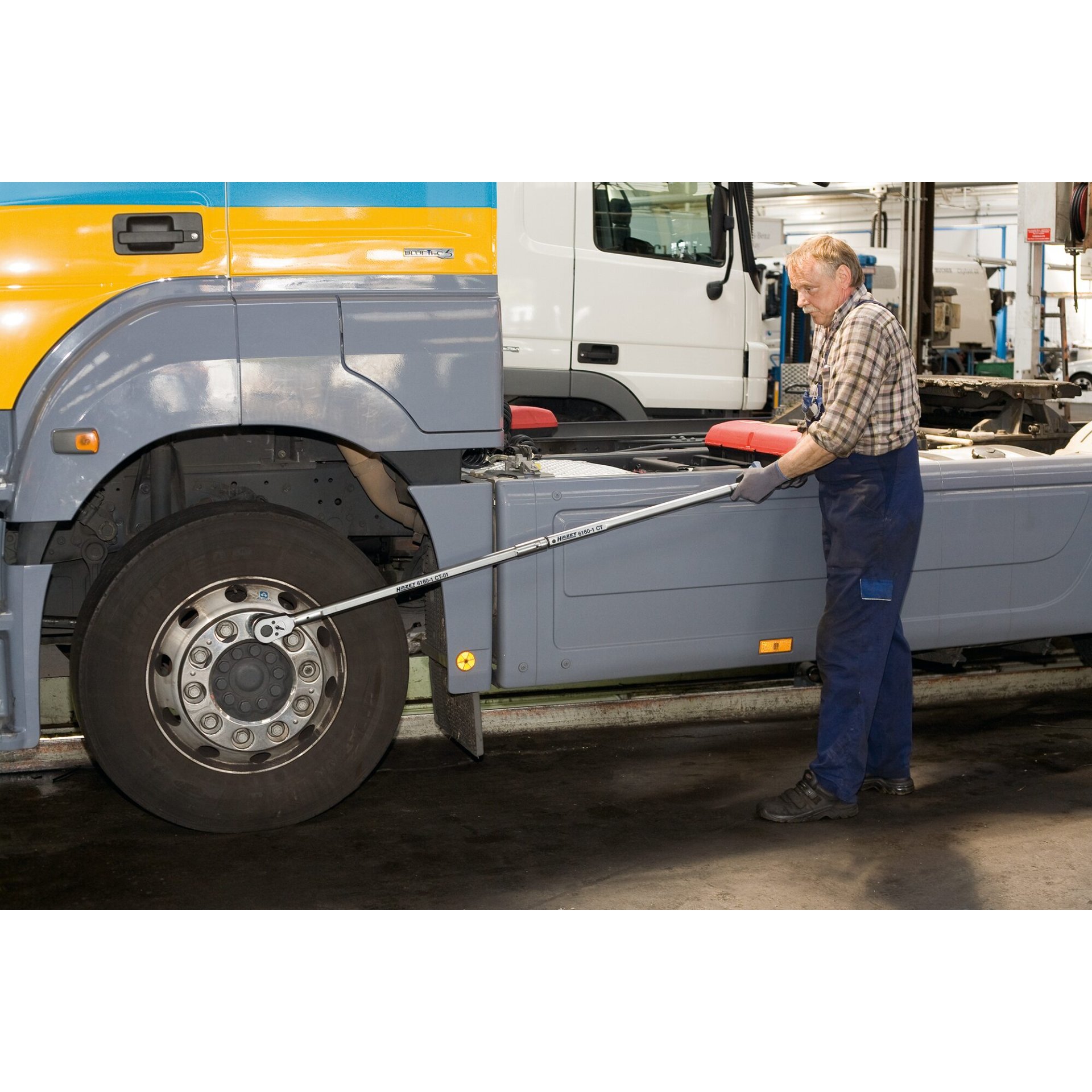

• For highest torque values. 1600 N·m torque wrench - Weight only about 14 kg. • Actuating force only 685 N (70 kg) at 1600 N·m. • Length of ratchet shaft 1316.5 mm, handle 1203 mm. • Accuracy ± 3 % of the scale value (6170-1CT ± 4%) (in direction of actuation for right-hand tightening) - For left-hand tightening, use our torque wrenches with insert tool. • For industrial climbers. • Application on wind turbines, dockyards, in the aviation industry and heavy industry, on commercial vehicles etc. • To be disassembled in two parts (6170-1CT: three parts) with release tool. • Bag included for safe storage and for carrying or wearing on your back. • Fast screw tightening also possible with ratchet shaft. For torque tightening always use the complete wrench. • Safety:• Haptic (close-gap release). • Audible (“click” sound). • 2-component handle for improved feel. • Simplified locking for adjusting the torque value. • Viewing window for visual checking of the locking. • 4 coloured coding rings (red, yellow, green, black) for markings in the case of personalisation or special workflows. • With calibration certificate and serial number. • DIN EN ISO 6789-2:2017, DIN 3120, ISO 1174-1. • Made in Germany. • Output: 1 inch (25 mm) square, solid. • Dimensions / length: 2455 mm. • Net weight: 14 kg. • Torque range min-max: 600 – 1600 Nm. • Accuracy: 3 %. • Scale Graduation (Nm): 5 Nm. • Actuating force min.-max. kg: 26.1 – 70.1 kg. • Number of teeth: 32 (Opening angle 11.25°). • Head Thickness a: 36 mm. • Head Width b: 77 mm. • No more turning back: Continuous long-term tests on the 5000 series and 6000 series of HAZET torque wrenches have demonstrated that turning them back to the smallest scale value is not required. SYSTEM 6000-1 CT Industrial torque wrenches1 – 2000 N·m ∙ with reversible ratchet ∙ accuracy ± 2 / 4 %.
