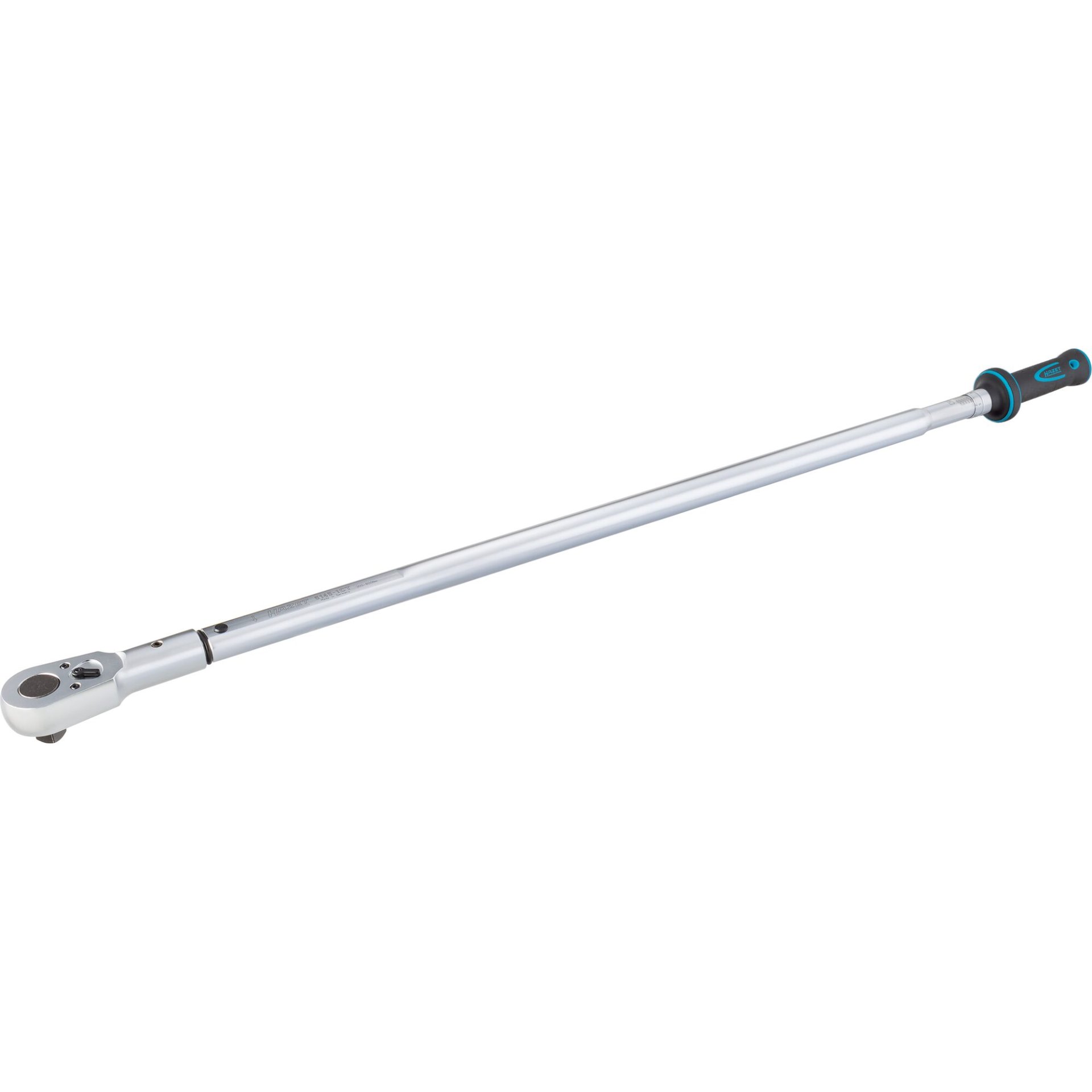

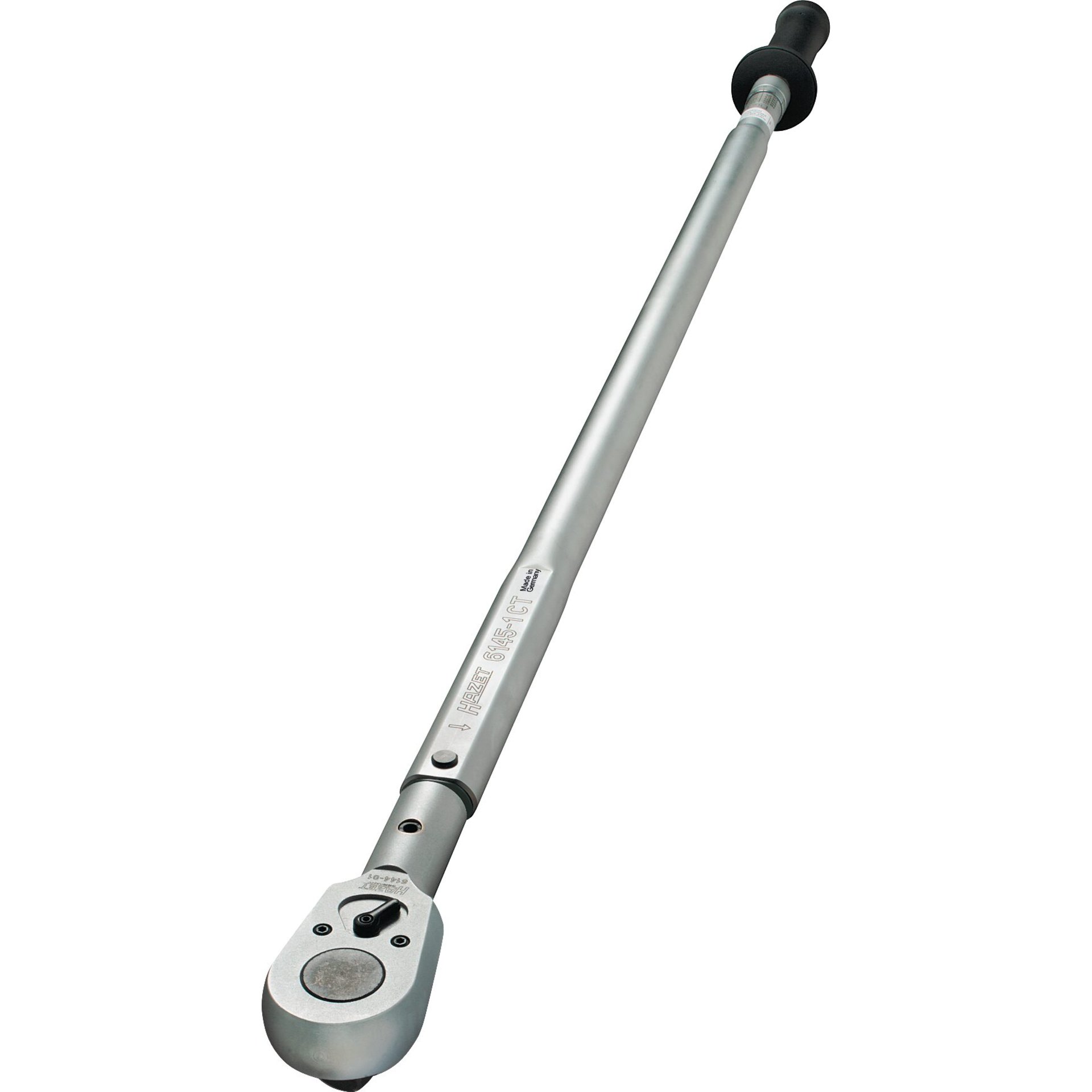

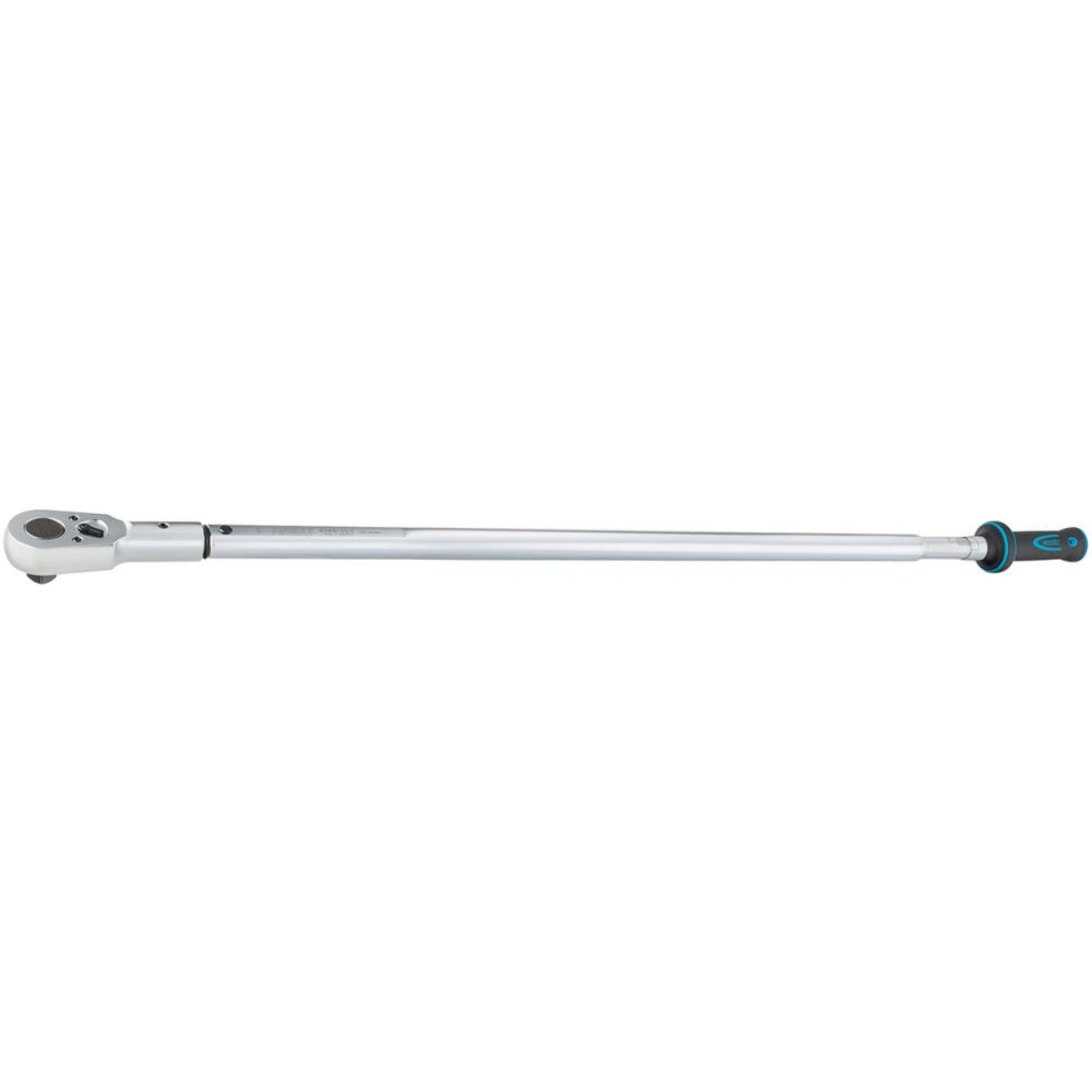

HAZET Torque wrench 6145-1CT ∙ Torque range min-max: 300 – 800 Nm ∙ Accuracy: 2% ∙ 3/4 inch (20 mm) square, solid ∙ 1283 mm

• 2-component handle for improved feel. • Simplified locking for adjusting the torque value. • Viewing window for visual checking of the locking. • 4 coloured coding rings (red, yellow, green, black) for markings in the case of personalisation or special workflows. • Accuracy ± 2 % of the scale value (in direction of actuation for right-hand tightening) - For left-hand tightening, use our torque wrenches with insert tool. • HiPer fine-tooth reversible ratchet in 6121-1CT ∙ 6122-1CT ∙ 6123-1CT (90 teeth ∙ 4° operating angle). • High-precision premium torque tools – for the highest demands. • Hard chrome-plated steel tube - slim, but very sturdy and wear-resistant. • Secure storage in safe box with display window. • Safety:• Haptic (close-gap release). • Audible (“click” sound). • User-friendly reversible ratchet - Service-friendly (do-it-yourself repair sets for ratchets available). • Integrated shift lever. • Easy and safe adjustment of the desired torque value by turning the handle. • Knob for additionally locking the set value. • Ergonomically shaped handle with collar reduces the risk of slipping-off and injury. • Accuracy – fine scale graduation. • With calibration certificate and serial number. • Surface: hard chrome plated. • DIN EN ISO 6789-2:2017, DIN 3120, ISO 1174-1. • Made in Germany. • Output: 3/4 inch (20 mm) square, solid. • Dimensions / length: 1283 mm. • Net weight: 6.34 kg. • Torque range min-max: 300 – 800 Nm. • Accuracy: 2 %. • Scale Graduation (Nm): 2.5 Nm. • Actuating force min.-max. kg: 25.9 – 70.2 kg. • Number of teeth: 32 (Opening angle 11.25°). • Head Thickness a: 28.5 mm. • Head Width b: 64 mm. • No more turning back: Continuous long-term tests on the 5000 series and 6000 series of HAZET torque wrenches have demonstrated that turning them back to the smallest scale value is not required. SYSTEM 6000-1 CT Industrial torque wrenches1 – 2000 N·m ∙ with reversible ratchet ∙ accuracy ± 2 / 4 %.
