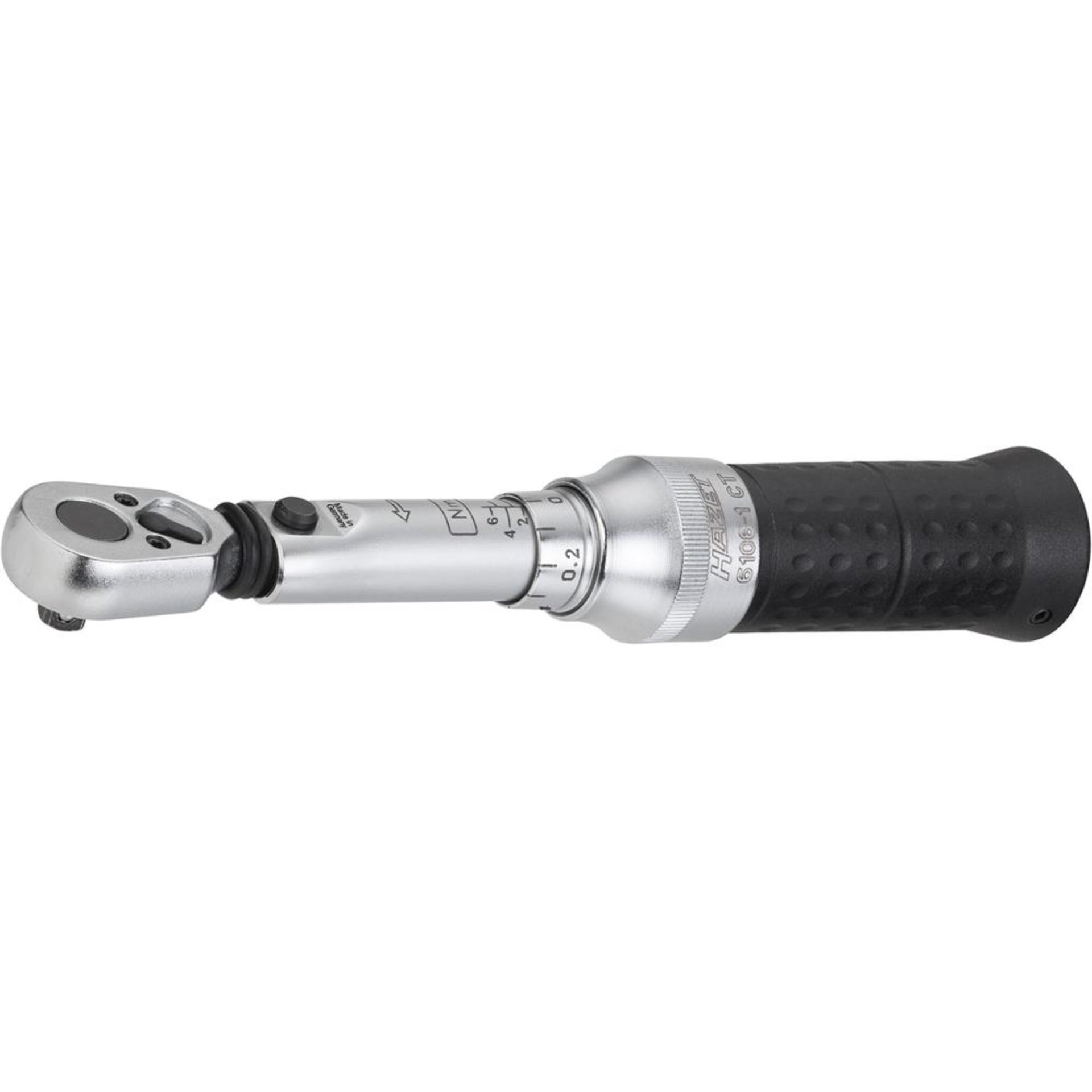

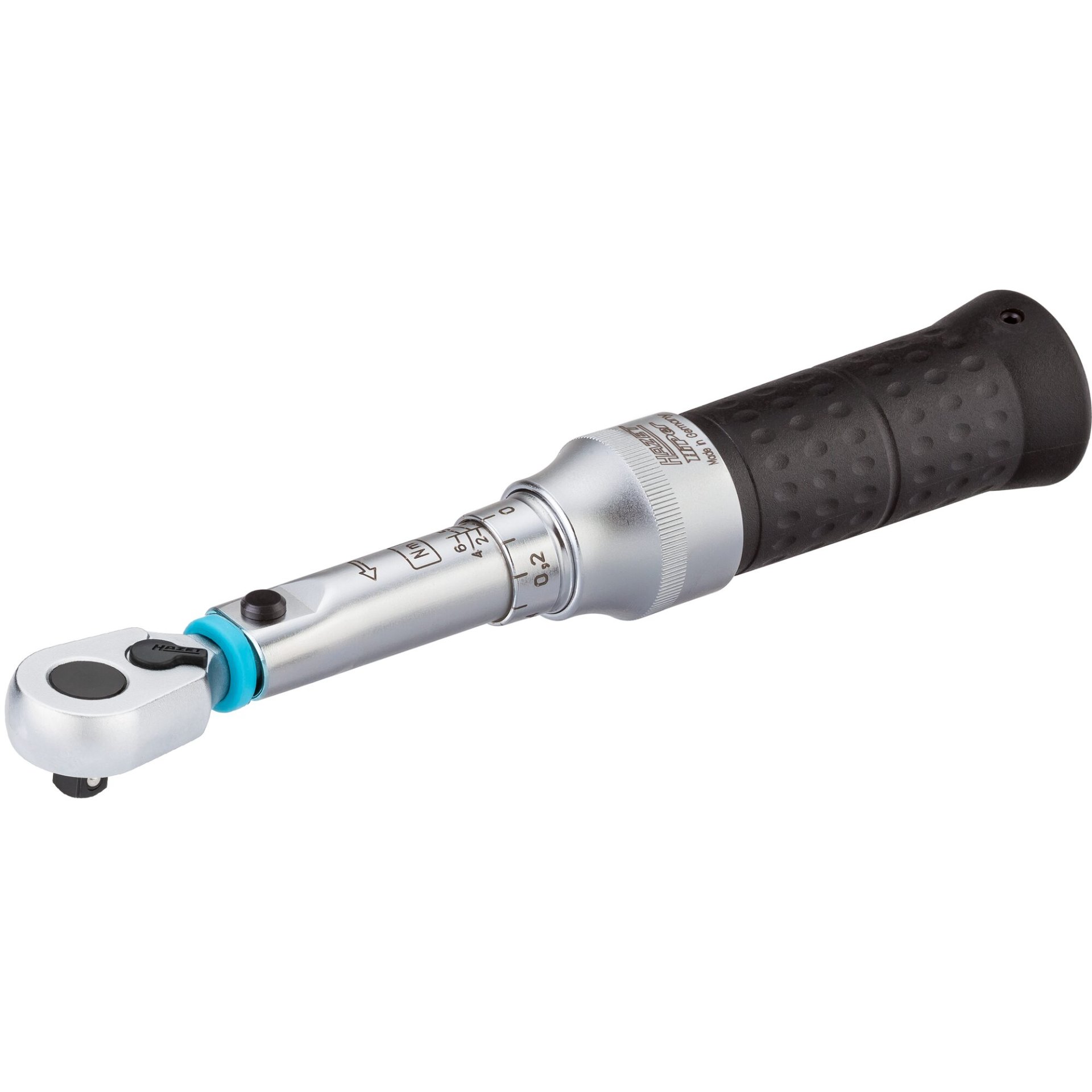

HAZET Torque wrench 6106-1CT ∙ Torque range min-max: 1 – 6 Nm ∙ Accuracy: 4% ∙ 1/4 inch (6.3 mm) square, solid ∙ 197 mm

Akustisch (Knickelement).. Einstellen des gewünschten

HAZET-Werk

HAZET Torque wrench 6106-1CT ∙ Torque range min-max: 1 – 6 Nm ∙ Accuracy: 4% ∙ 1/4 inch (6.3 mm) square, solid ∙ 197 mm

SKU	62670005
GTIN	4000896173167
MPN	6106-1CT
Weight	0.39 kg
Width	0.04 m
Length	0.22 m
Height	0.04 m

372,23 €

Maße 197 mm

Haptisch (Kurzwegauslösung)
Akustisch (Knickelement).. Einstellen des gewünschten Drehmomentwertes schnell
Made in Germany
Norm DIN EN ISO 6789-2:2017
Abtrieb 1/4 Zoll (6,3 mm) Vierkant massiv

incl. VAT plus shipping

Delivery time: 3-5 Werktage

Stück

Description

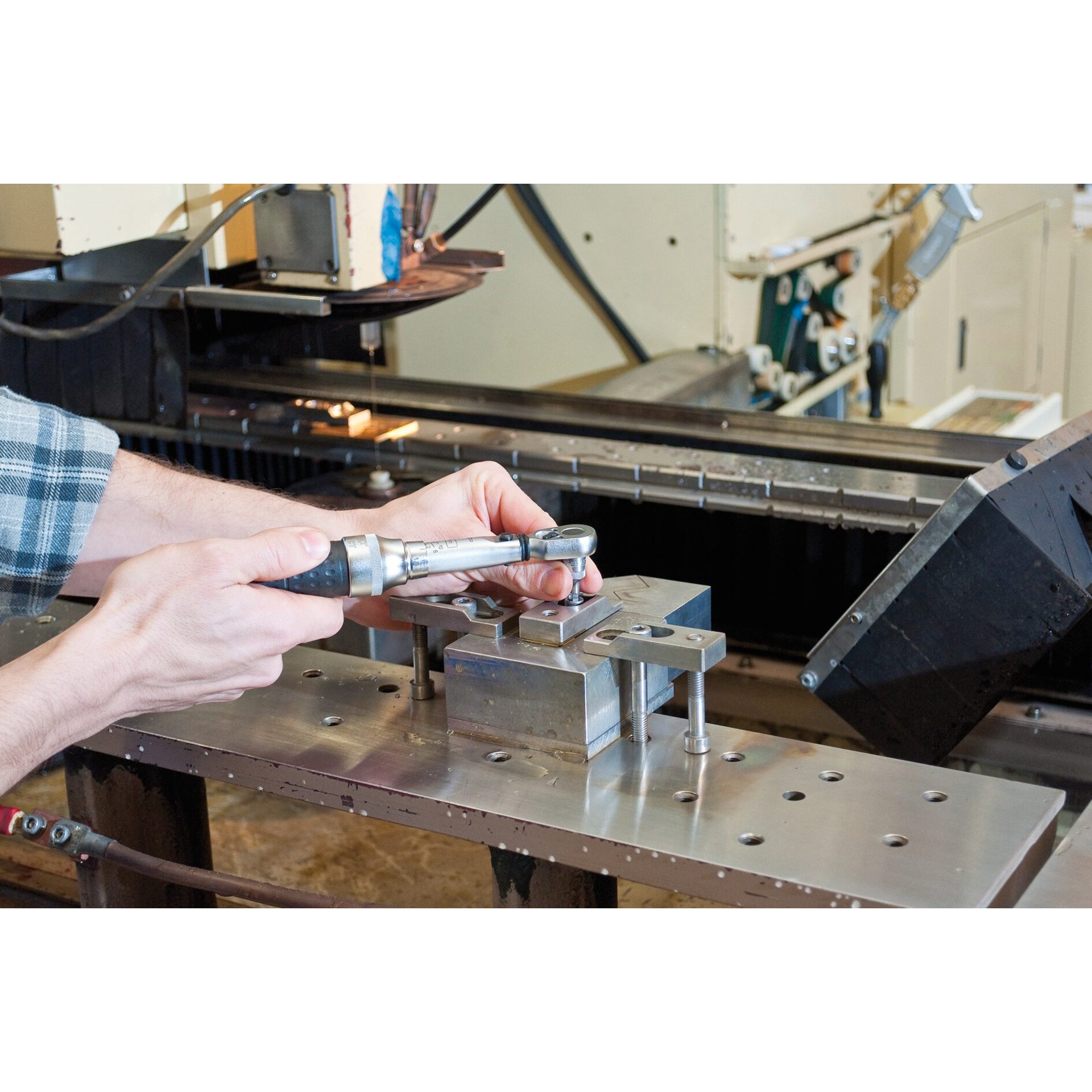

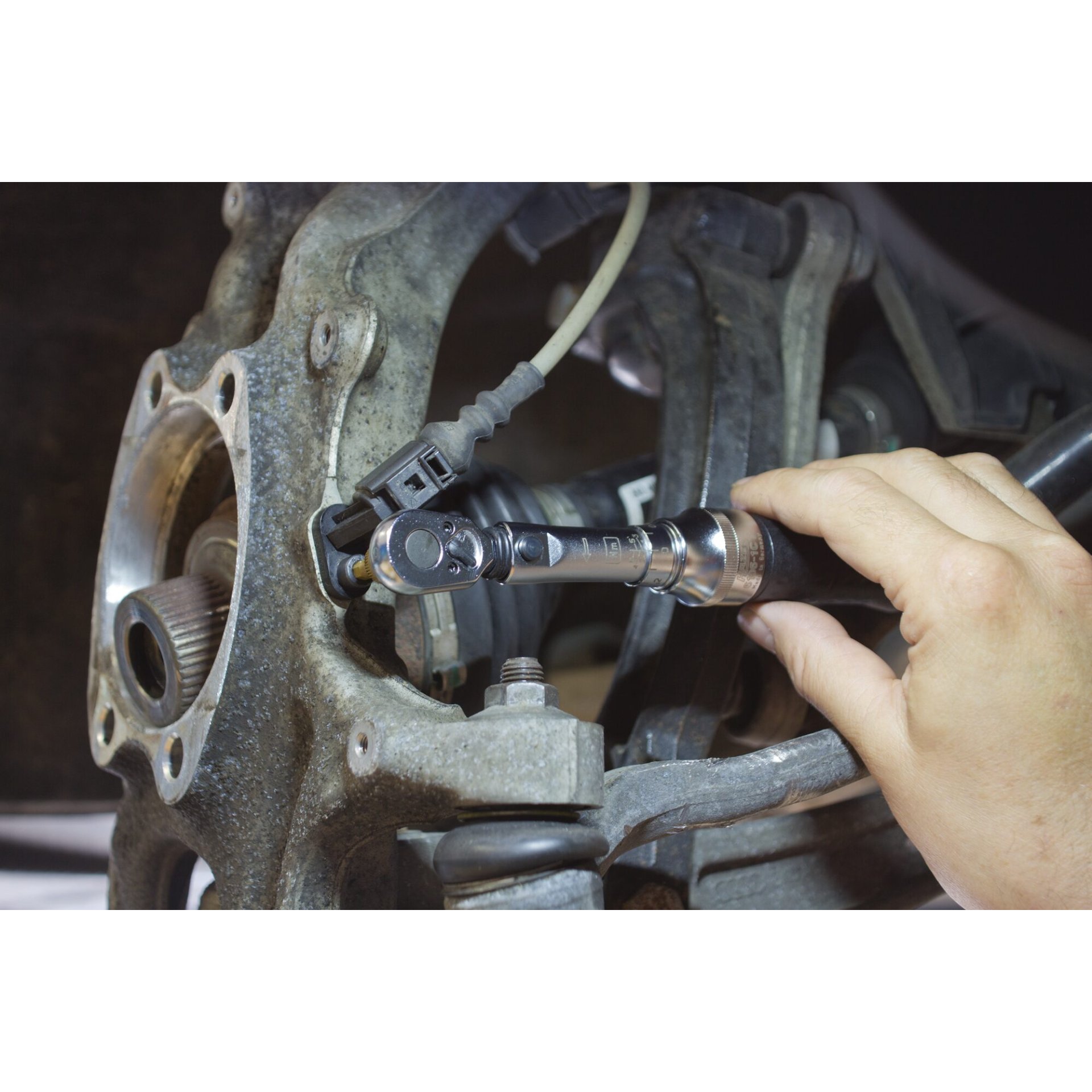

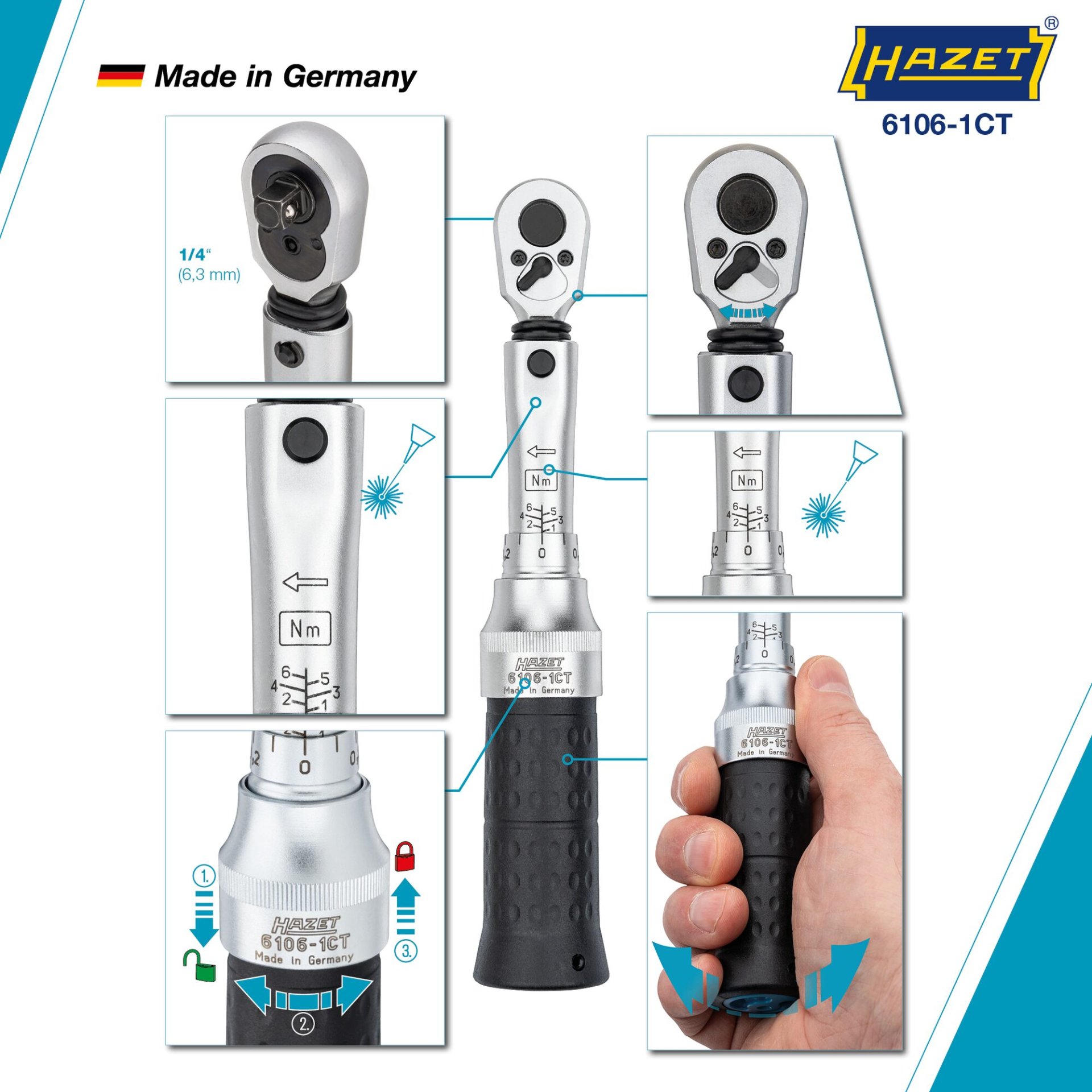

• Safety:• Haptic (close-gap release). • Audible (“click” sound). • Easy and safe adjustment of the desired torque value by turning the handle. • Especially slim design thanks to spring-loaded puller sleeve for locking the setting values. • Accuracy ± 2 % of the scale value (6106-1CT ± 4%) (in direction of actuation for right-hand tightening) - For left-hand tightening, use our torque wrenches with insert tool. • Application: engines, gearboxes, machinery, industry, model making. • With calibration certificate and serial number. • DIN EN ISO 6789-2:2017, DIN 3120, ISO 1174-1. • Made in Germany. • Output: 1/4 inch (6.3 mm) square, solid. • Dimensions / length: 197 mm. • Net weight: 0.3 kg. • Torque range min-max: 1 – 6 Nm. • Accuracy: 4 %. • Scale Graduation (Nm): 0.1 Nm. • Actuating force min.-max. kg: 0.7 – 4.4 kg. • Number of teeth: 20 (Opening angle 18°). • Head Thickness a: 10.2 mm. • Head Width b: 24 mm. • No more turning back: Continuous long-term tests on the 5000 series and 6000 series of HAZET torque wrenches have demonstrated that turning them back to the smallest scale value is not required. SYSTEM 6000-1 CT Industrial torque wrenches1 – 2000 N·m ∙ with reversible ratchet ∙ accuracy ± 2 / 4 %.

Features

Features
Abtrieb	1/4 Zoll (6,3 mm) Vierkant massiv
Anzahl Zähne	90 Zähne
Anzugsmoment maximal [Nm]	6 Nm
Anzugsmoment minimal [Nm]	1 Nm
Betätigungskraft max. kg	4.4 kg
Betätigungskraft min. kg	0.7 kg
Betätigungswinkel	4 °
Branche	Industrie
CrossReferenz Gedore	-
CrossReferenz SW-Stahl	-
Ersatzteil	6000-4.0-01/50
Genauigkeit	4 %

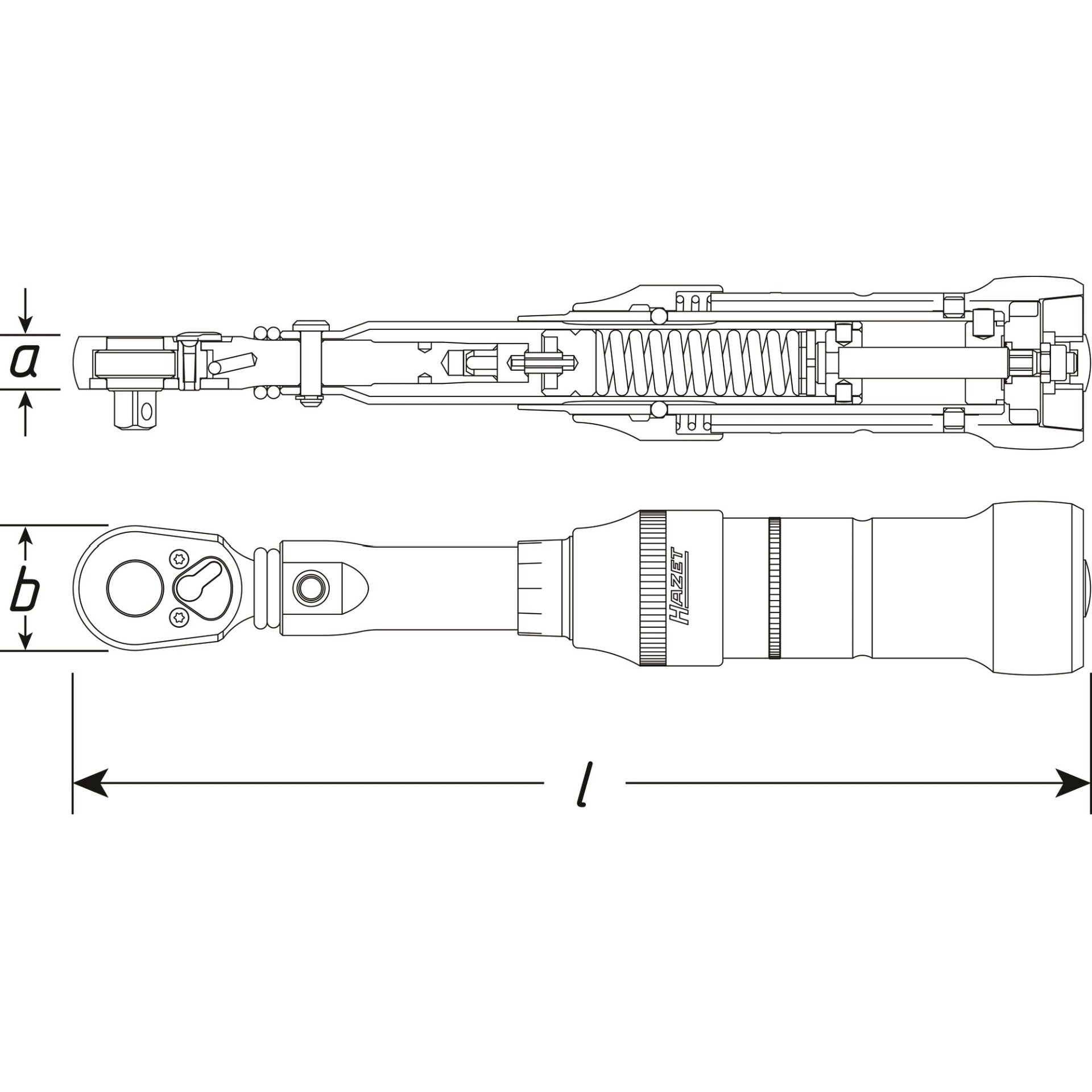

Kopfbreite b	24 mm
Kopfstärke a	10.2 mm
Länge	197 mm
Maße	197 mm
Netto-Gewicht (kg)	0.3 kg
Skaleneinteilung (Nm)	0.1 Nm
Umrechnung Nm in lbf.ft (max)	4.43 lbf.ft
Umrechnung Nm in lbf.ft (min)	0.74 lbf.ft
Bezeichnung Produktgruppe	SYSTEM 6000-1 CT Industrie-Drehmomentschlüssel · 1 - 2000 Nm · mit Umschaltknarre · Genauigkeit ± 2 / 4 %
Norm	DIN EN ISO 6789-2:2017
Produktempfehlung	SP-10
Service-Paket	SP-10
Signalknopf	false
