HAZET Torque wrench 5292-3CT ∙ Torque range min-max: 40 – 200 Nm ∙ Accuracy: 3% ∙ 14 x 18 mm insert square ∙ 484 mm

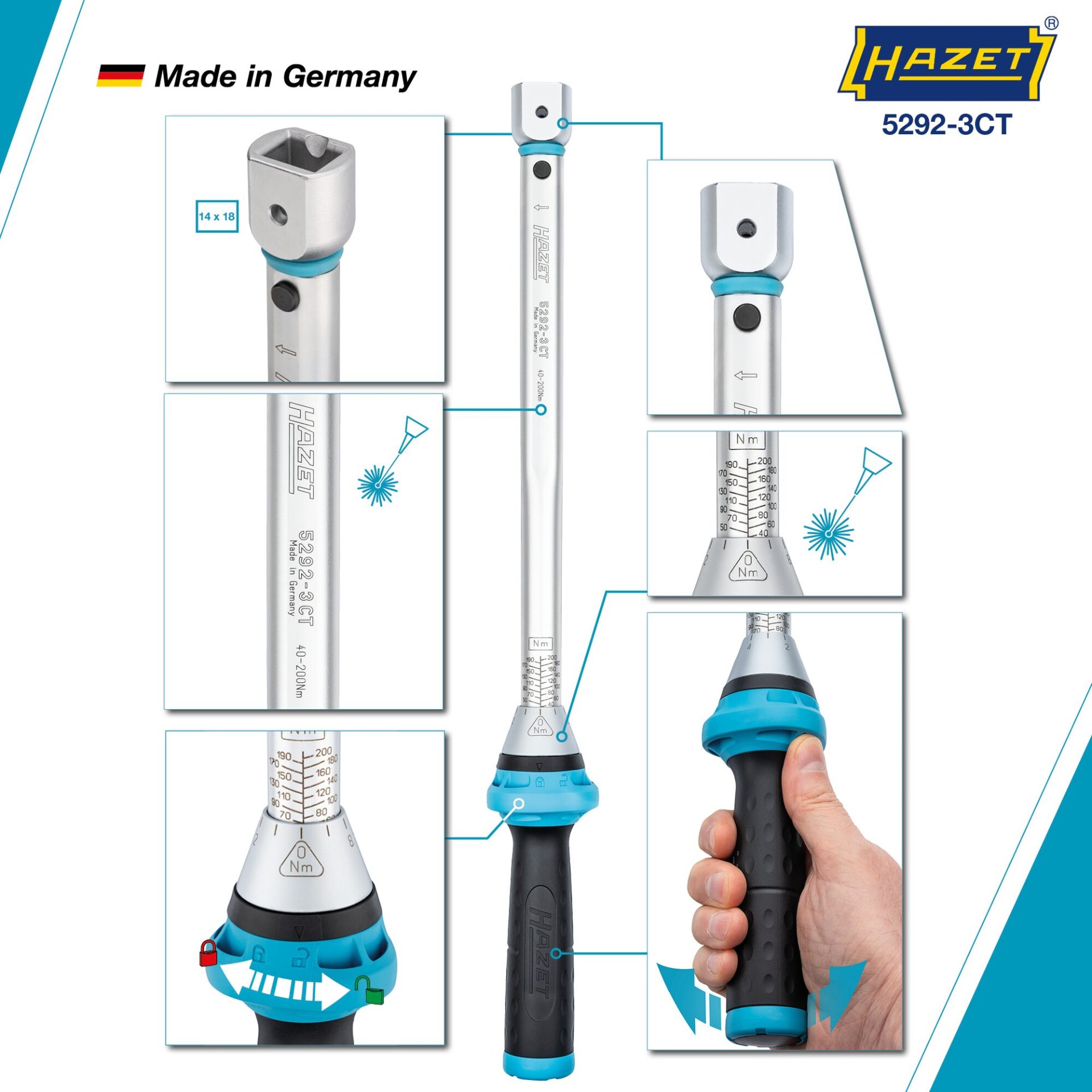

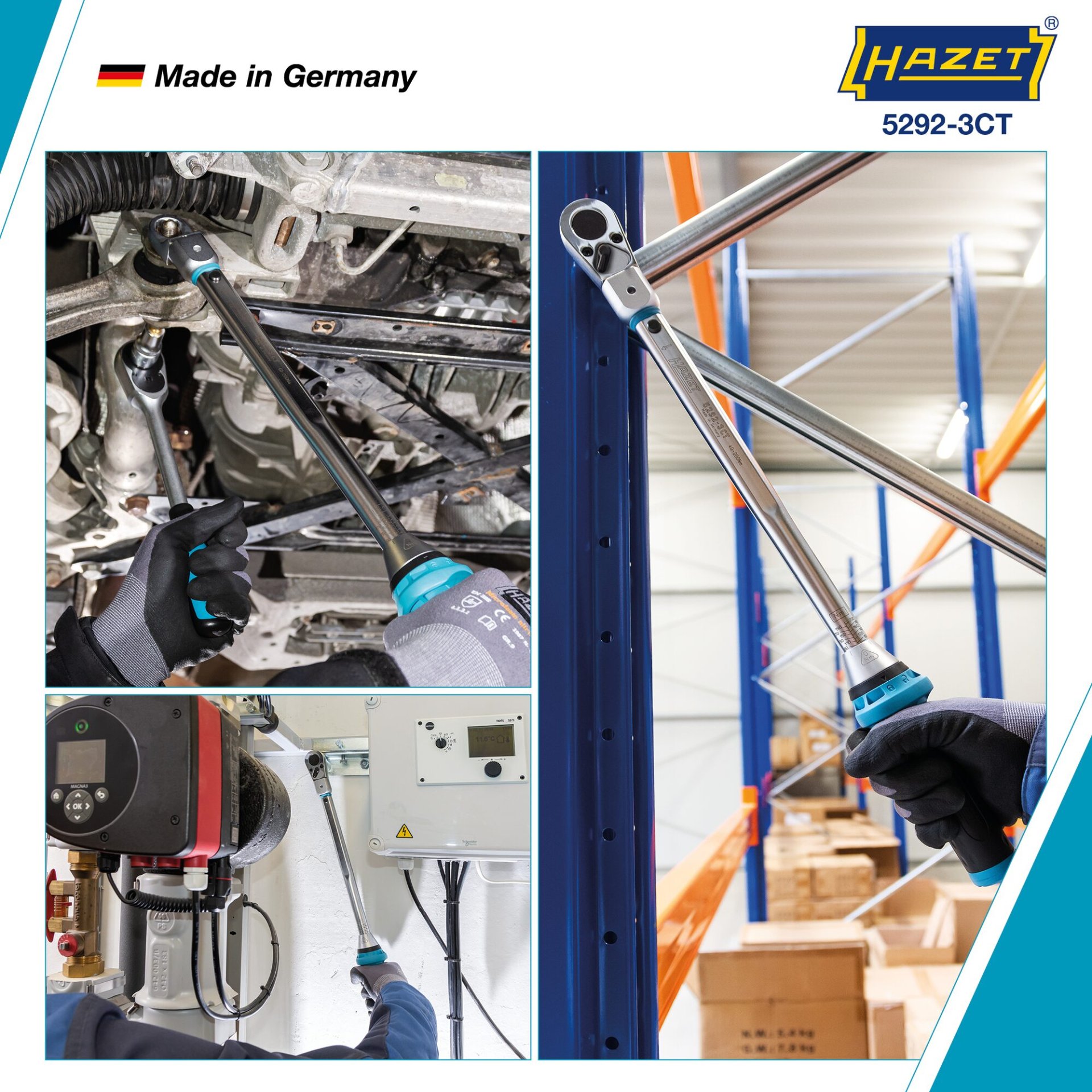

• Plug-and-socket connection to hold insert tools. • Accuracy ± 3% of the scale value (in direction of actuation) - Can be used for right-hand and left-hand threads by turning the insert tool. • Safety:• Haptic (close-gap release). • Audible (“click” sound). • Designed for rough workshop use. • Wide range of applications for controlled screw tightening in tyre service, bicycle, passenger car and commercial vehicle applications as well as various applications in trade and industry. • Optimised sealing ring to protect against debris. • Handle with better grip for easier power transmission. • Adjustment aid with detent points for optimised operator guidance ensures safe and fast adjustment of the desired torque value by turning the handle. • Safe locking of the setting values by latching function on the rotary assembly. • Rotary assembly in triangular form prevents uncontrolled rolling. • Lock symbols indicate the respective locking status. • Can be attached to the cable loop through openings on the locking rotary assembly. • Easy-to-read, high-contrast scale. • Permanent readability due to laser marking on the scale bush. • With calibration certificate and serial number. • Delivery in sturdy Hexa plastic box. • DIN EN ISO 6789-2:2017. • Made in Germany. • Output: 14 x 18 mm insert square. • Dimensions / length: 484 mm. • Net weight: 0.92 kg. • Torque range min-max: 40 – 200 Nm. • Accuracy: 3 %. • Scale Graduation (Nm): 1 Nm. • Effective torque wrench length min.-max. I1 mm: 460.00 – 437.44 Nm. • Actuating force min.-max. kg: 8.9 – 46.6 kg. • Inside micrometre of the adjusting tool l2: 38.5 mm. • Head Thickness a: 23 mm. • Head Width b: 30 mm. • No more turning back: Continuous long-term tests on the 5000 series and 6000 series of HAZET torque wrenches have demonstrated that turning them back to the smallest scale value is not required. SYSTEM 5200-3 CT Insert torque wrenches10 – 200 N·m ∙ with insert square ∙ accuracy ± 3 %.
