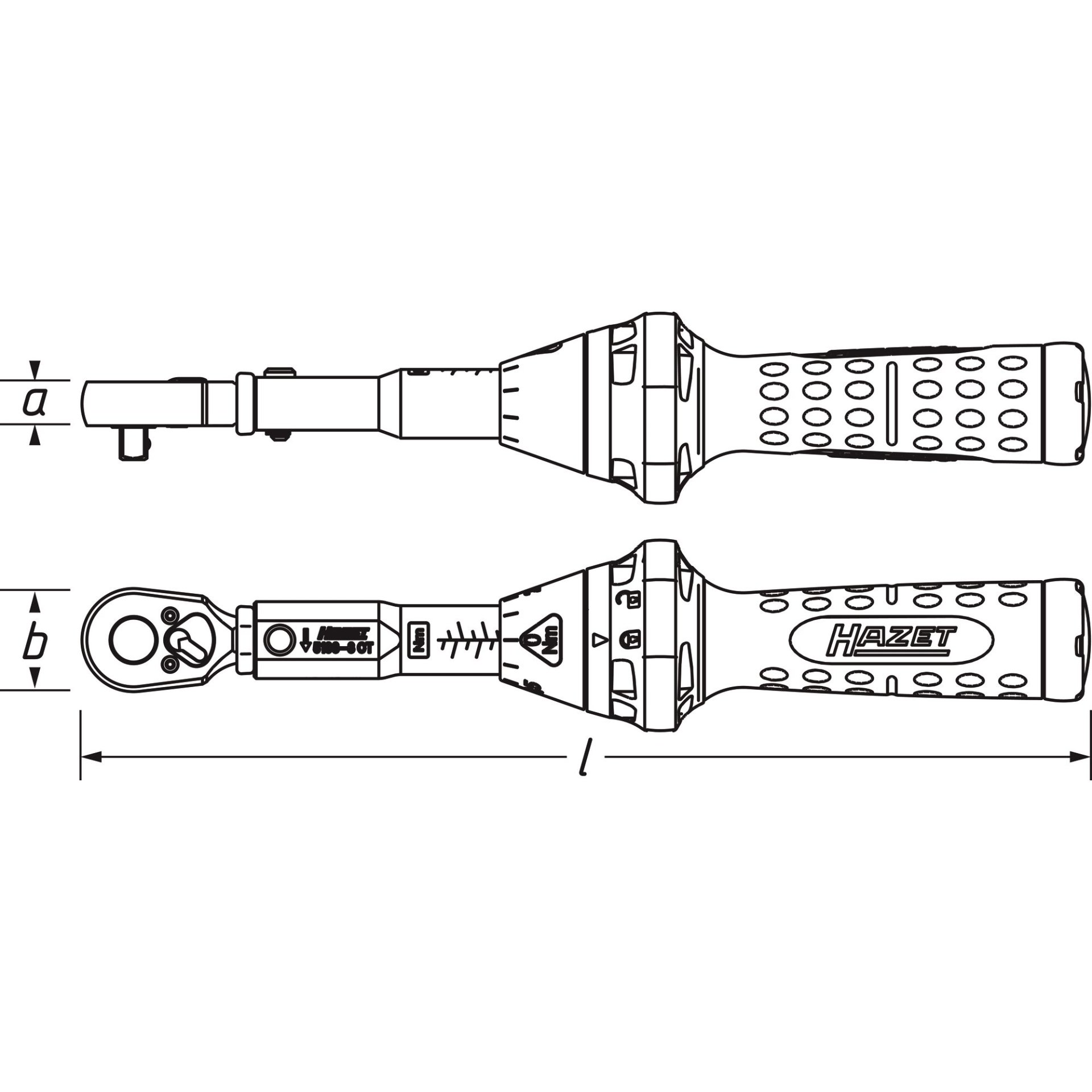

HAZET Torque wrench 5107-3CT ∙ Torque range min-max: 1 – 9 Nm ∙ Accuracy: 4% ∙ 1/4 inch (6.3 mm) square, solid ∙ 234 mm

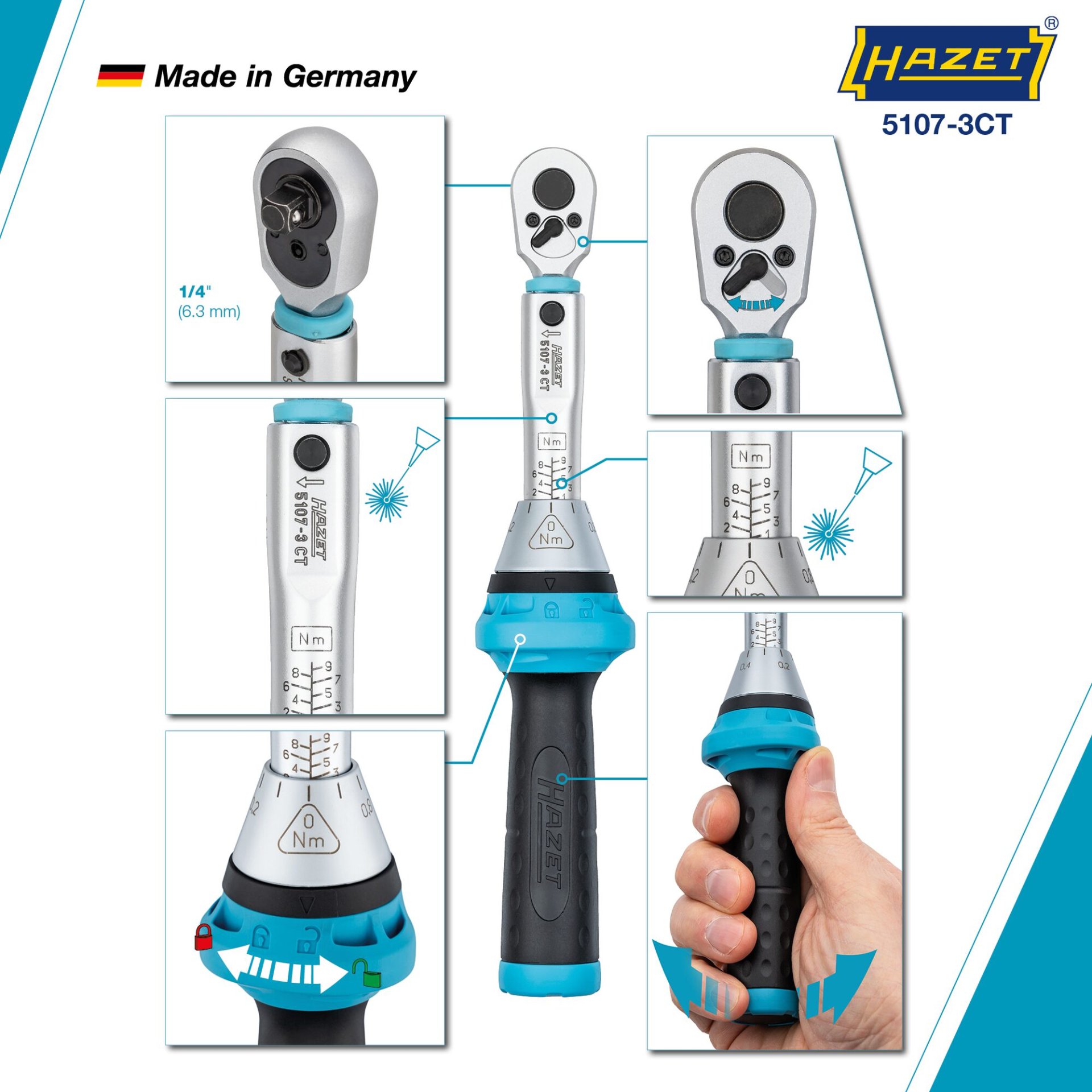

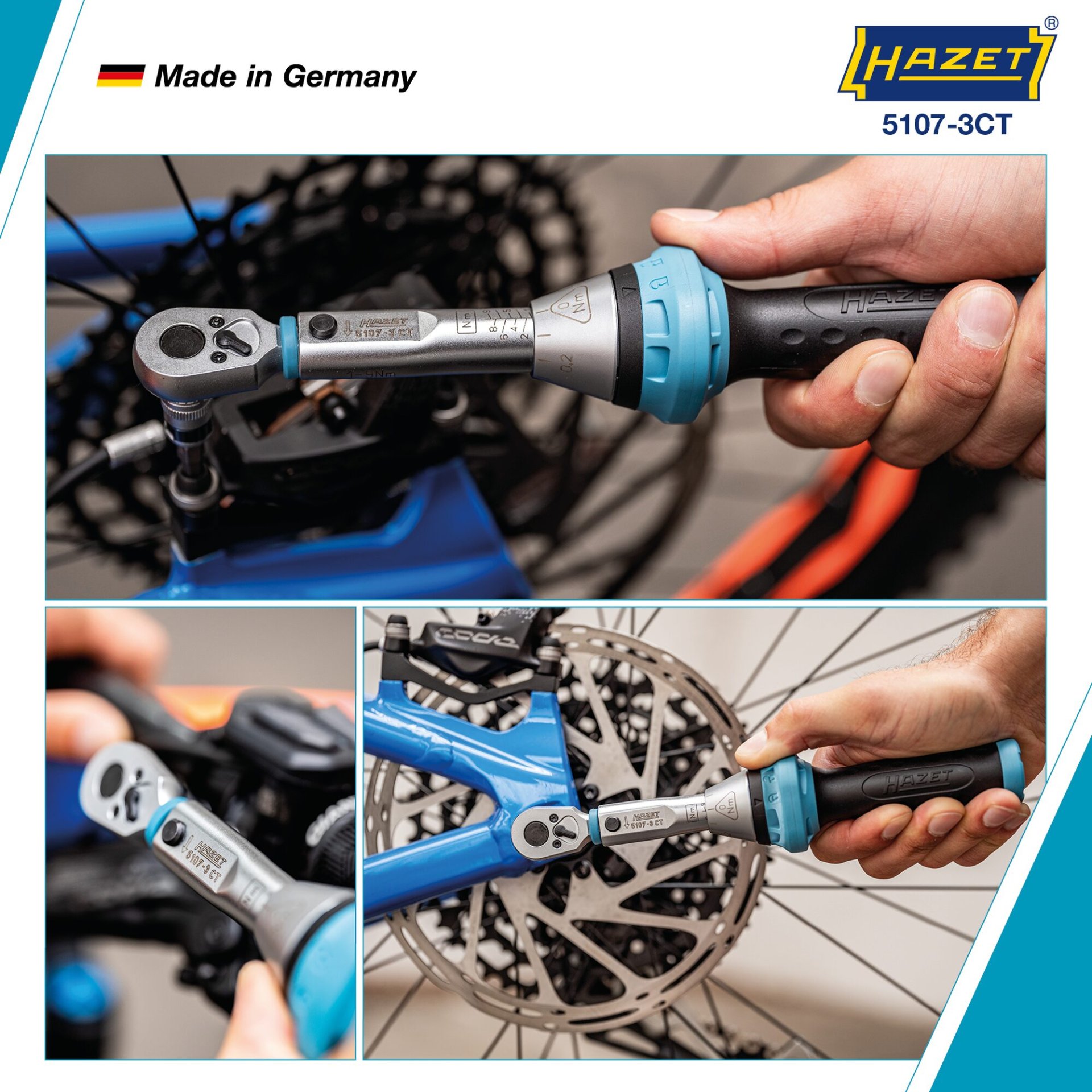

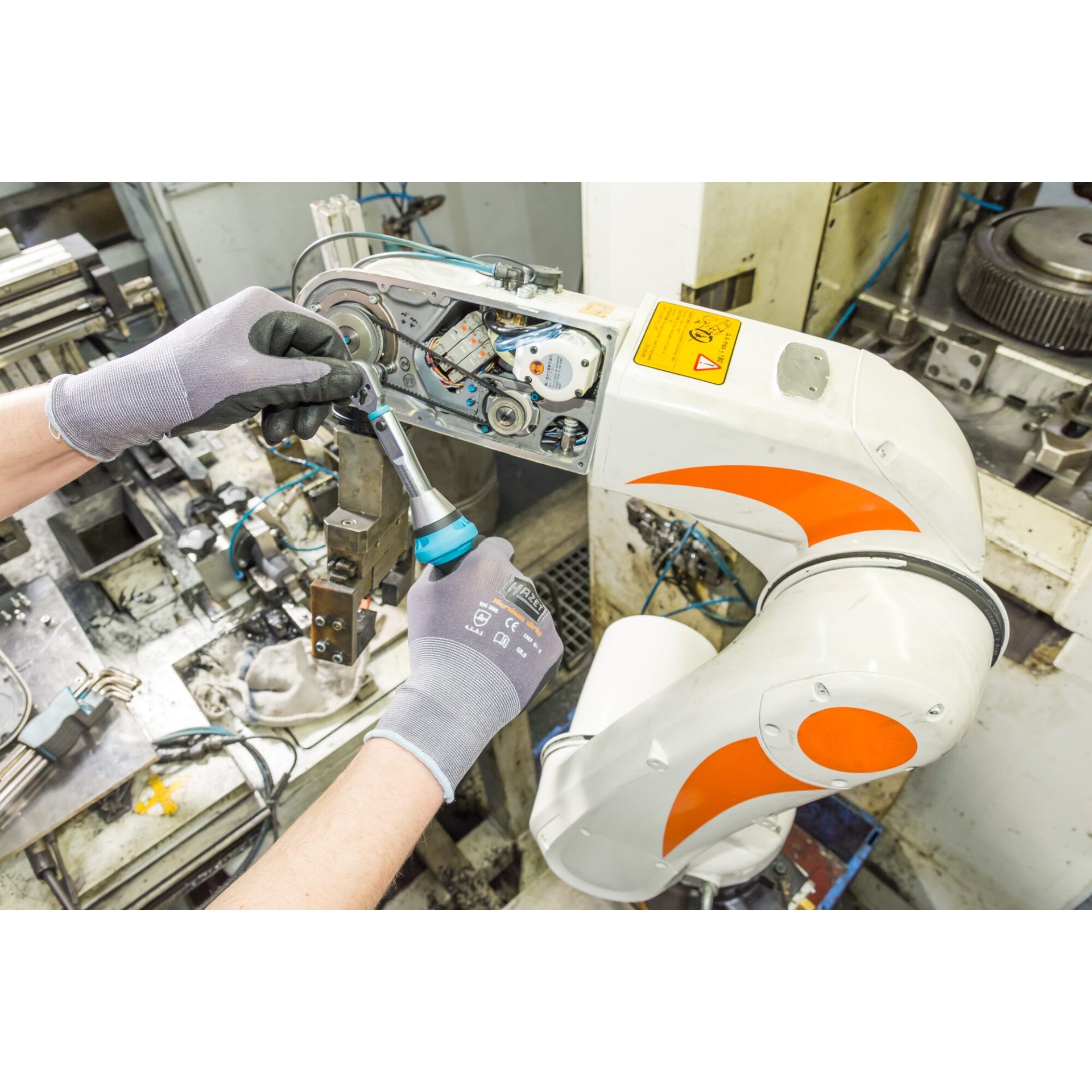

• User-friendly reversible ratchet. • For working on motorcycles, bicycles and tyre pressure control systems. – SYSTEM 5000-3 CT –. • Accuracy ± 3% of the scale value (in direction of actuation for right-hand tightening) (5107-3CT ± 4% accuracy of scale value). • For left-hand tightening, use our torque wrenches with insert tool. • Safety:• Haptic (close-gap release). • Audible (“click” sound). • Designed for rough workshop use. • Wide range of applications for controlled screw tightening in tyre service, bicycle, passenger car and commercial vehicle applications as well as various applications in trade and industry. • Optimised sealing ring to protect against debris. • Ratchet repair set for customer-oriented self-assembly enables decades of use. • Handle with better grip for easier power transmission. • Adjustment aid with detent points for optimised operator guidance ensures safe and fast adjustment of the desired torque value by turning the handle. • Safe locking of the setting values by latching function on the rotary assembly. • Rotary assembly in triangular form prevents uncontrolled rolling. • Lock symbols indicate the respective locking status. • Can be attached to the cable loop through openings on the locking rotary assembly. • Easy-to-read, high-contrast scale. • Permanent readability due to laser marking on the scale bush. • Integrated shift lever - 5121-3CT – 5123-3CT: shift lever with idle function – reduces risk of injury and malfunction. • With calibration certificate and serial number. • Delivery in sturdy Hexa plastic box. • DIN EN ISO 6789-2:2017, DIN 3120, ISO 1174-1. • Made in Germany. • Output: 1/4 inch (6.3 mm) square, solid. • Dimensions / length: 234 mm. • Net weight: 0.42 kg. • Torque range min-max: 1 – 9 Nm. • Accuracy: 4 %. • Scale Graduation (Nm): 0.1 Nm. • Actuating force min.-max. kg: 0.6 – 5.5 kg. • Number of teeth: 20 (Opening angle 18°). • Head Thickness a: 10.2 mm. • Head Width b: 24 mm. • No more turning back: Continuous long-term tests on the 5000 series and 6000 series of HAZET torque wrenches have demonstrated that turning them back to the smallest scale value is not required. SYSTEM 5000-3 CT Workshop torque wrenches1 – 800 N·m ∙ with reversible ratchet ∙ accuracy ± 3 / 4 %.
