HAZET Torque tester ∙ electronic ∙ 1.5 – 30 N·m 7903E ∙ Torque range min-max: 1.5 – 30 Nm ∙ 3/8 inch (10 mm) hexagon, solid, 1/4 inch (6.3 mm) square, hollow, 3/8 inch (10 mm) square, hollow ∙ 175 mm x 64 mm x 72 mm

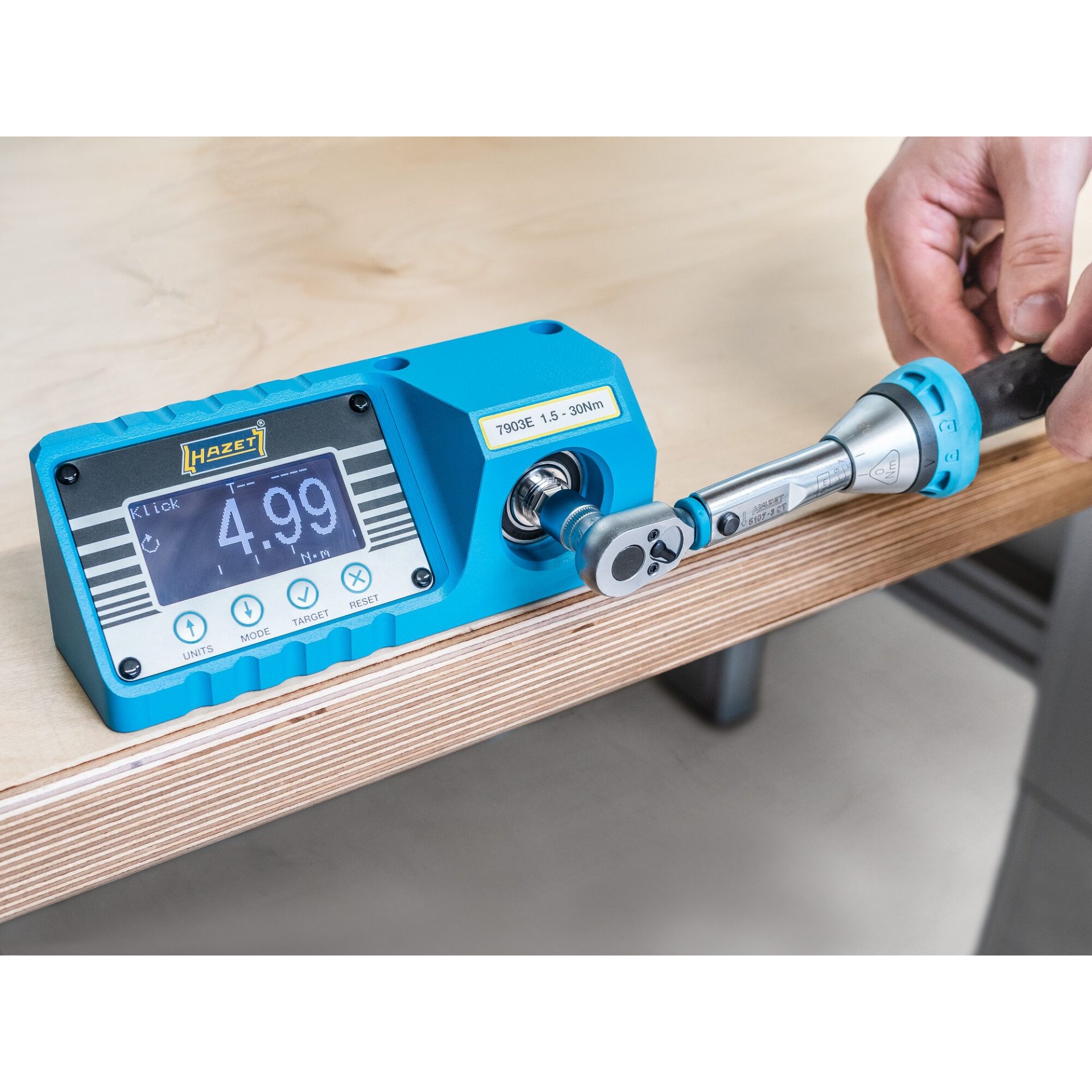

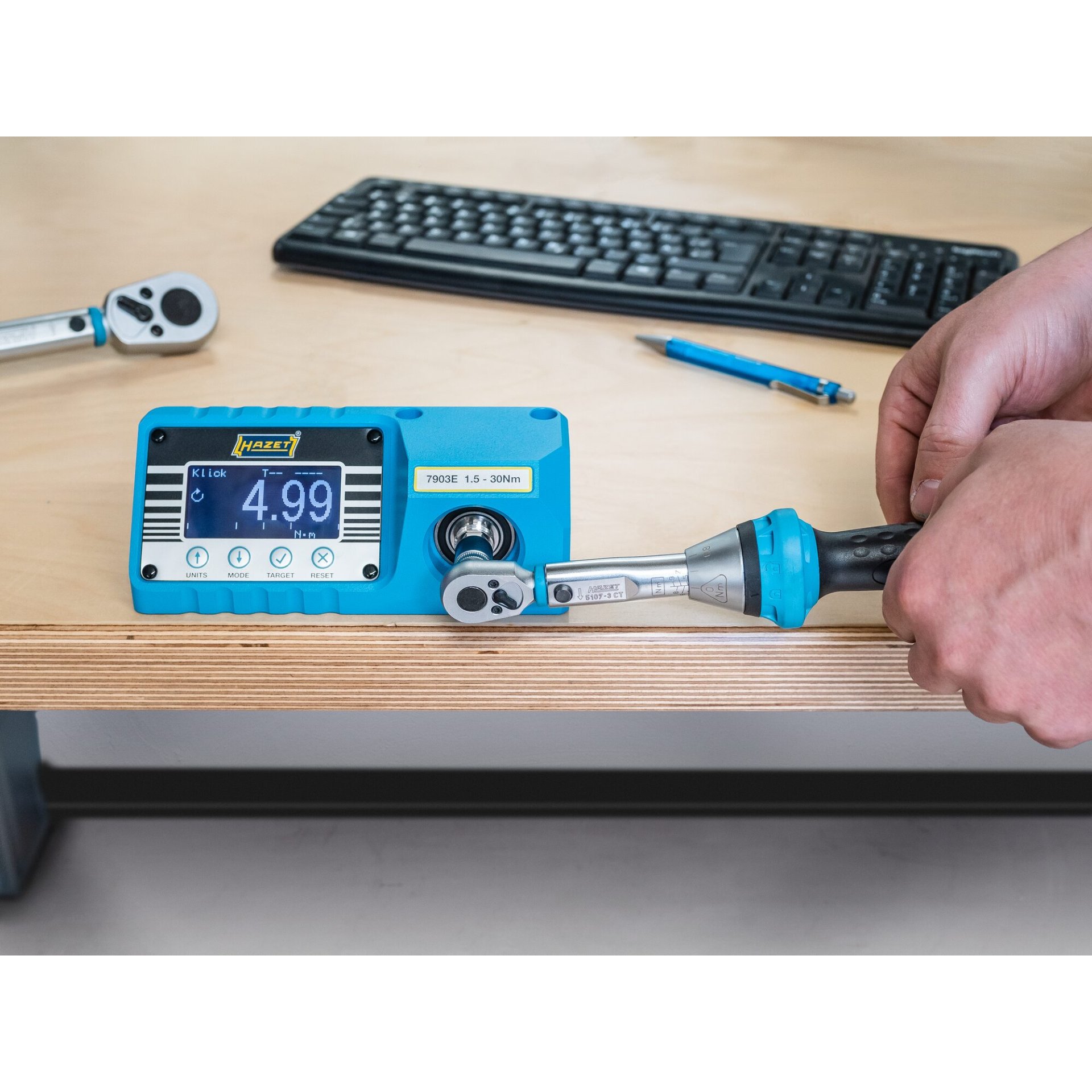

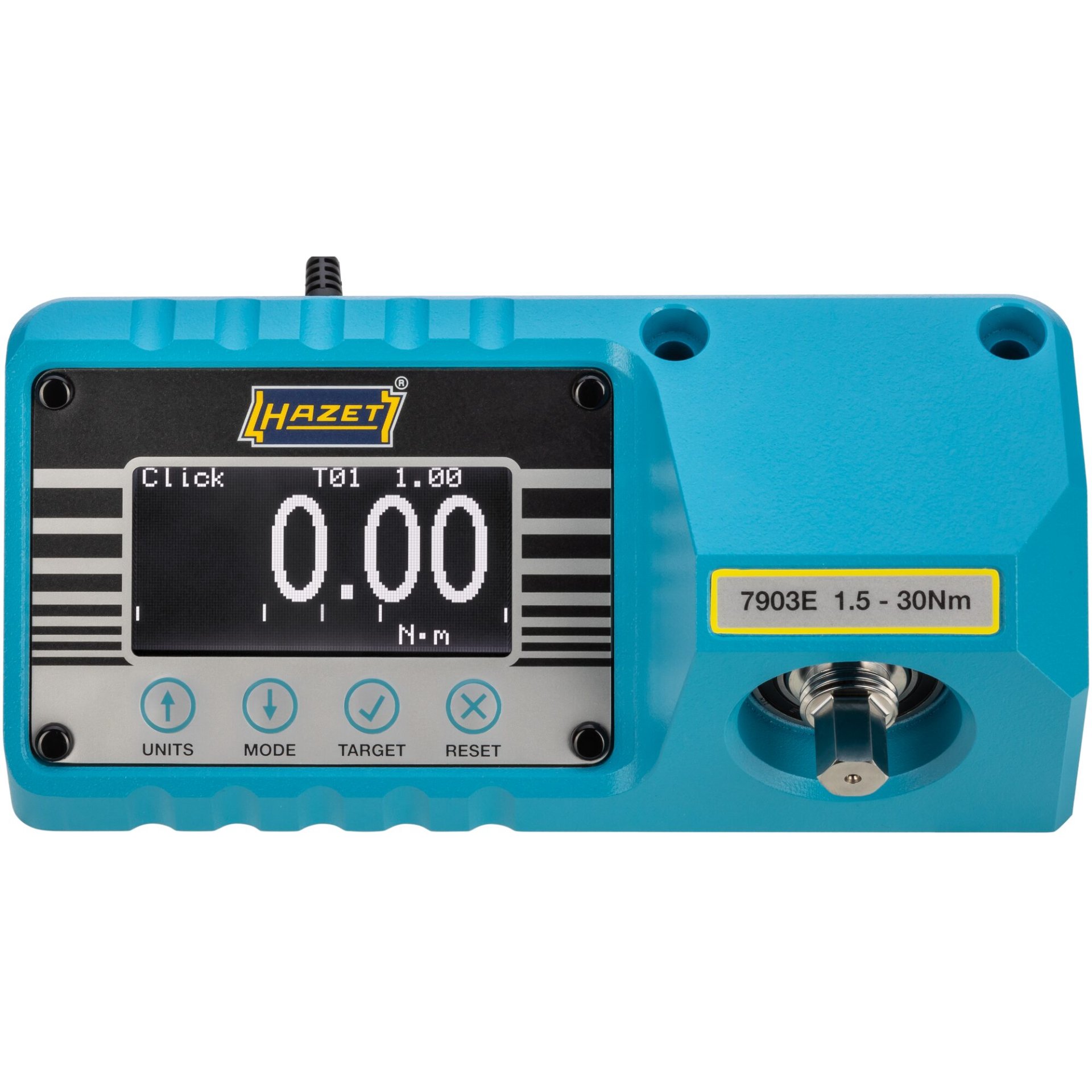

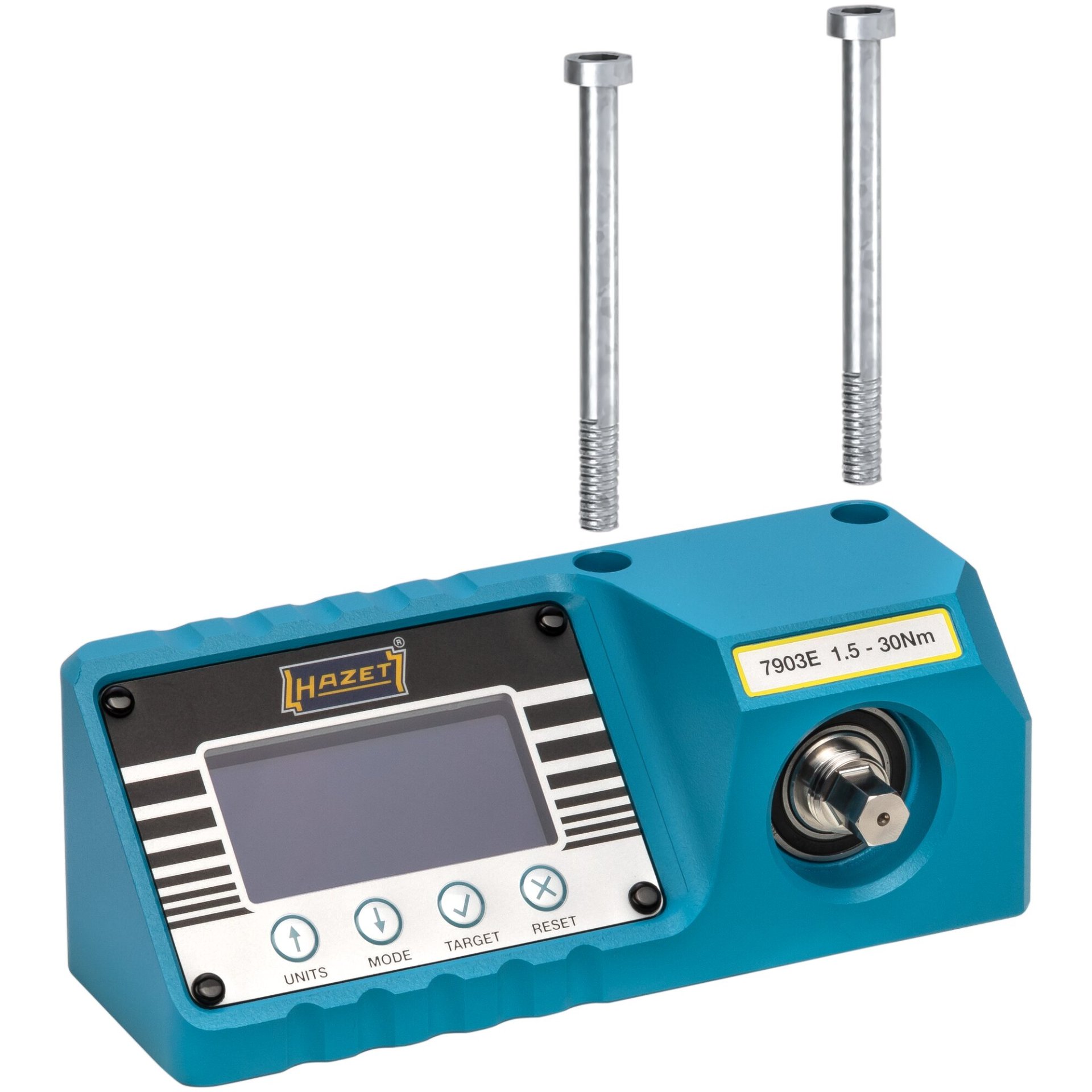

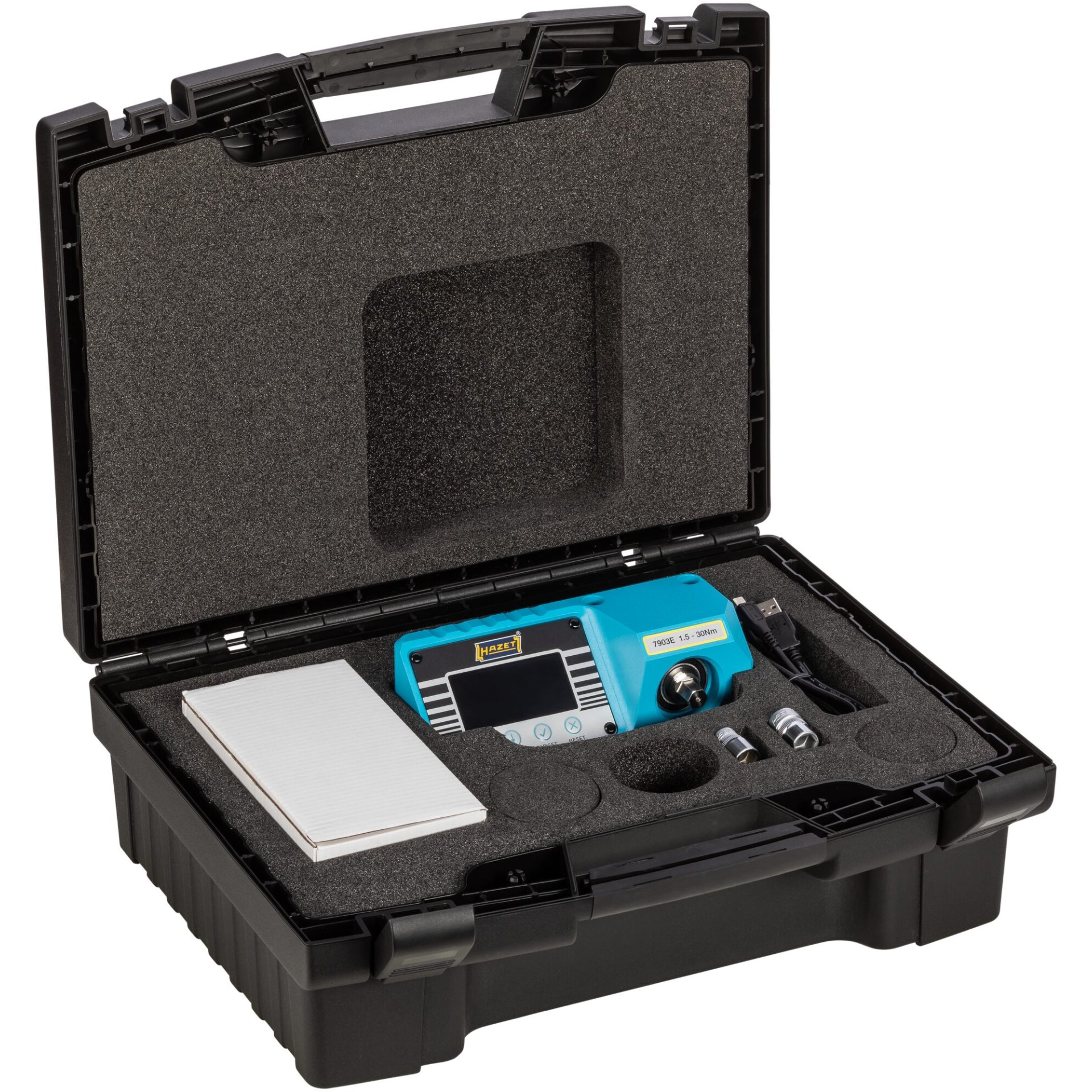

Application: - Simple and quick checking of torque wrenches. • Simple, intuitive operation. • Giant display with 17 mm large digits. • Traffic light function for evaluation of the measured value PLUS audible signal. • Calibrated measuring range in the clockwise direction of rotation - (measurements from 1 N m are possible with a display deviation of approx. ± 2%). • Fixed external hexagon socket ∙ size 10 mm including adapter Outside hexagon 10 = 3/8 inch → Inside square 10 = 3/8 inch und Outside hexagon 10 = 3/8 inch → Inside square 6.3 = 1/4 inch. • Switchable torque display in N·m ∙ dN·m ∙ cN·m ∙ kgfm ∙ kgfcm ∙ gfm ∙ lbf.ft ∙ lbf.in ∙ ft.lb ∙ in.lb ∙ ozfin ∙ inoz. • Configurable selection of desired units. • Fixing material (not included in the scope of delivery): hexagon socket screws ISO 4762 – M6 – 8.8. • Gross weight including plastic case and accessories approx. 2.9 kg. • Easy entry of up to 15 different target values and the respective permissible accuracy in the range of ± 1 % to ± 15%. • Accuracy ± 1% (maximum display deviation). • Digital readouts ∙ 3 measurement procedures • Automatic click point detection (first peak ∙ click). • Peak value measurement (final peak ∙ dial). • Tracking measurement / display value (track). • Triple signalling of the measurement result:• Digit display in 17 mm font size. • Traffic light function for assessing the torque value (yellow = too low ∙ green = OK ∙ red = too high). • Audible signal. • Robust aluminium housing for workshop use, surface powder-coated. • Large, high-contrast, luminous easy-to-read LCD display with backlighting. • Self-sufficient operation possible via power bank (5 V ∙ 1 A). • Maximum power consumption: 0.5 Wh ∙ energy efficiency level 6. • Rapid test function with auto reset, without target value and accuracy specification, without evaluation. • Compatible with HAZET test software torque testing 7901E-D, micro USB socket for power supply and data transmission. • Protection rating IP 40, splash-proof display and membrane keyboard. • 10 adjustable menu languages: German ∙ English ∙ French ∙ Spanish ∙ Italian ∙ Danish ∙ Finnish ∙ Swedish ∙ Norwegian ∙ Portuguese. • Included in delivery:• USB power supply 90-264 volts AC at 47–63 Hz Output voltage: 5 V ∙ 1000 mA ∙ USB 2.0 A socket Includes mains plug adapters for EU ∙ UK ∙ USA ∙ AUS. • Cable (2 m) USB 2.0 A plug – USB 2.0 micro B plug. • Calibration certificate and quick reference guide (detailed operating instructions online for download). • Stable mounting on workbench. • Drive: 3/8 inch (10 mm) hexagon, solid, 1/4 inch (6.3 mm) square, hollow, 3/8 inch (10 mm) square, hollow. • Dimensions / length: 175 mm x 64 mm x 72 mm. • Net weight: 1.15 kg.
