HAZET Hose reel ∙ open 9040OS-10 ∙ 400 mm x 186 mm x 426 mm

Automatischer Schlauchaufroller schafft Ordnung

HAZET-Werk

HAZET Hose reel ∙ open 9040OS-10 ∙ 400 mm x 186 mm x 426 mm

SKU	9900608884
GTIN	4000896252602
MPN	9040OS-10
Weight	16.1 kg
Width	0.45 m
Length	0.59 m
Height	0.21 m

257,12 €

Automatischer Schlauchaufroller schafft Ordnung in der Werkstatt – kein
Robuste Stahlausführung mit Rollenführung
Länge: 400mm
Maße: 400 mm x 186 mm x 426 mm
Druckluft-Schlauch

incl. VAT plus shipping

Delivery time: 3-5 Werktage

Stück

Description

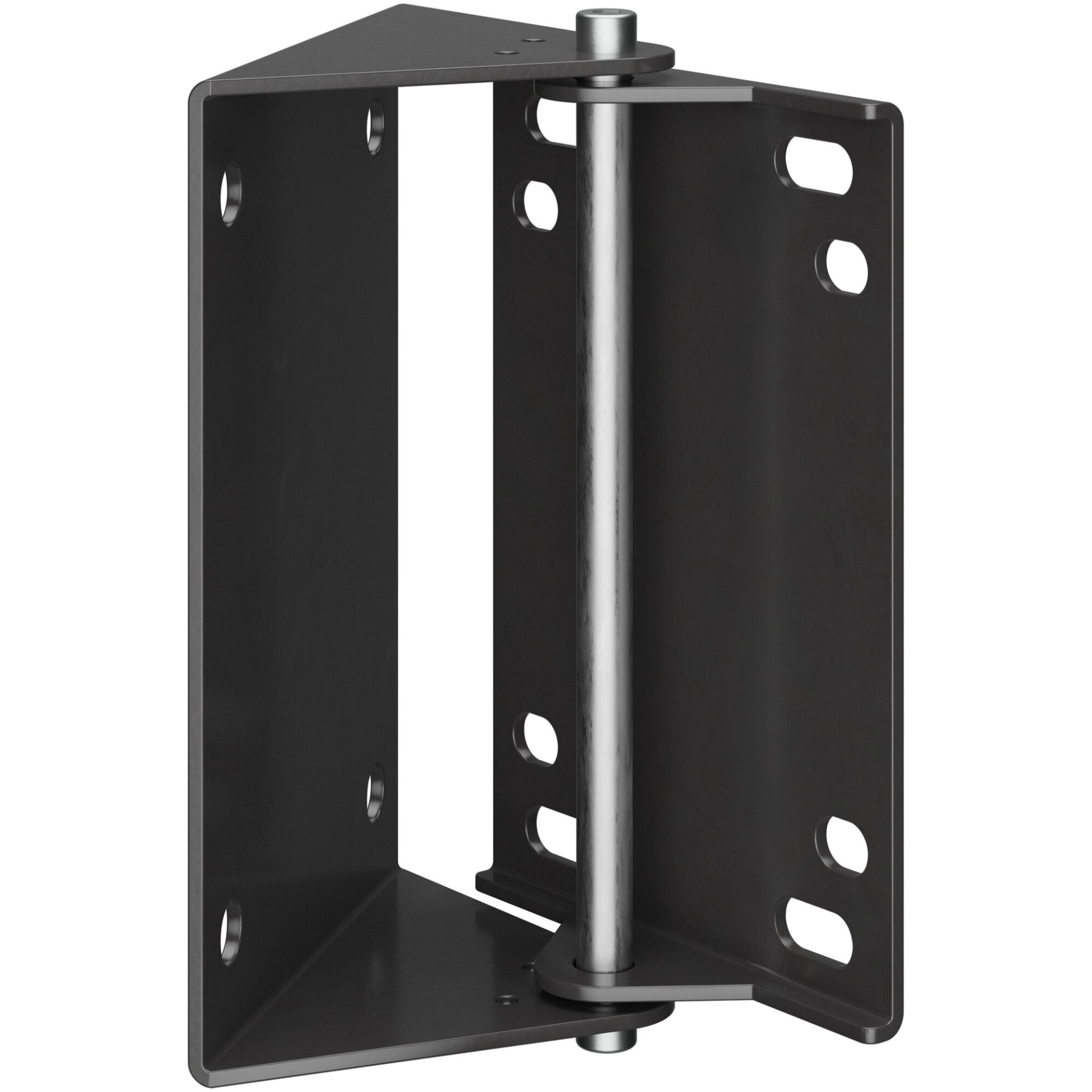

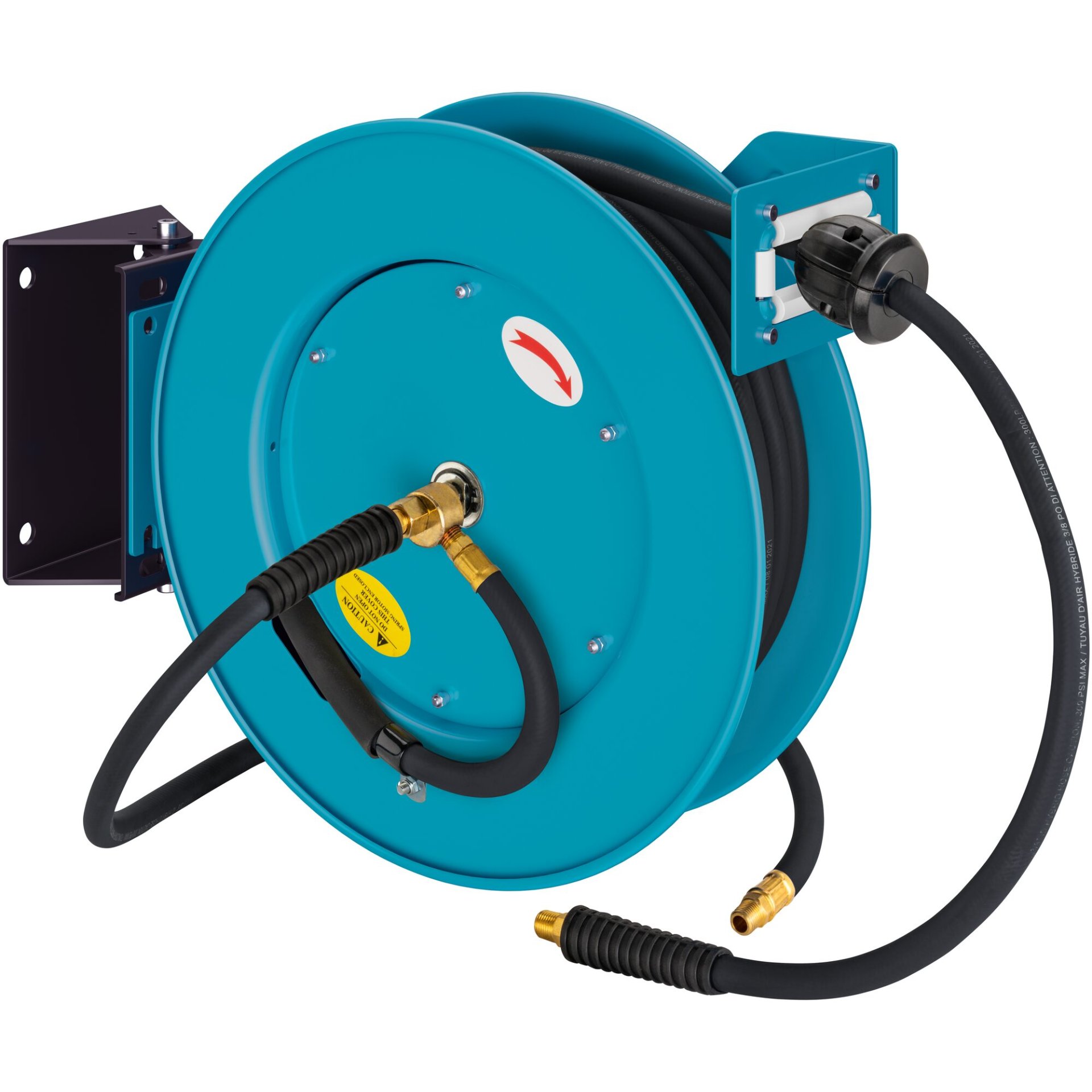

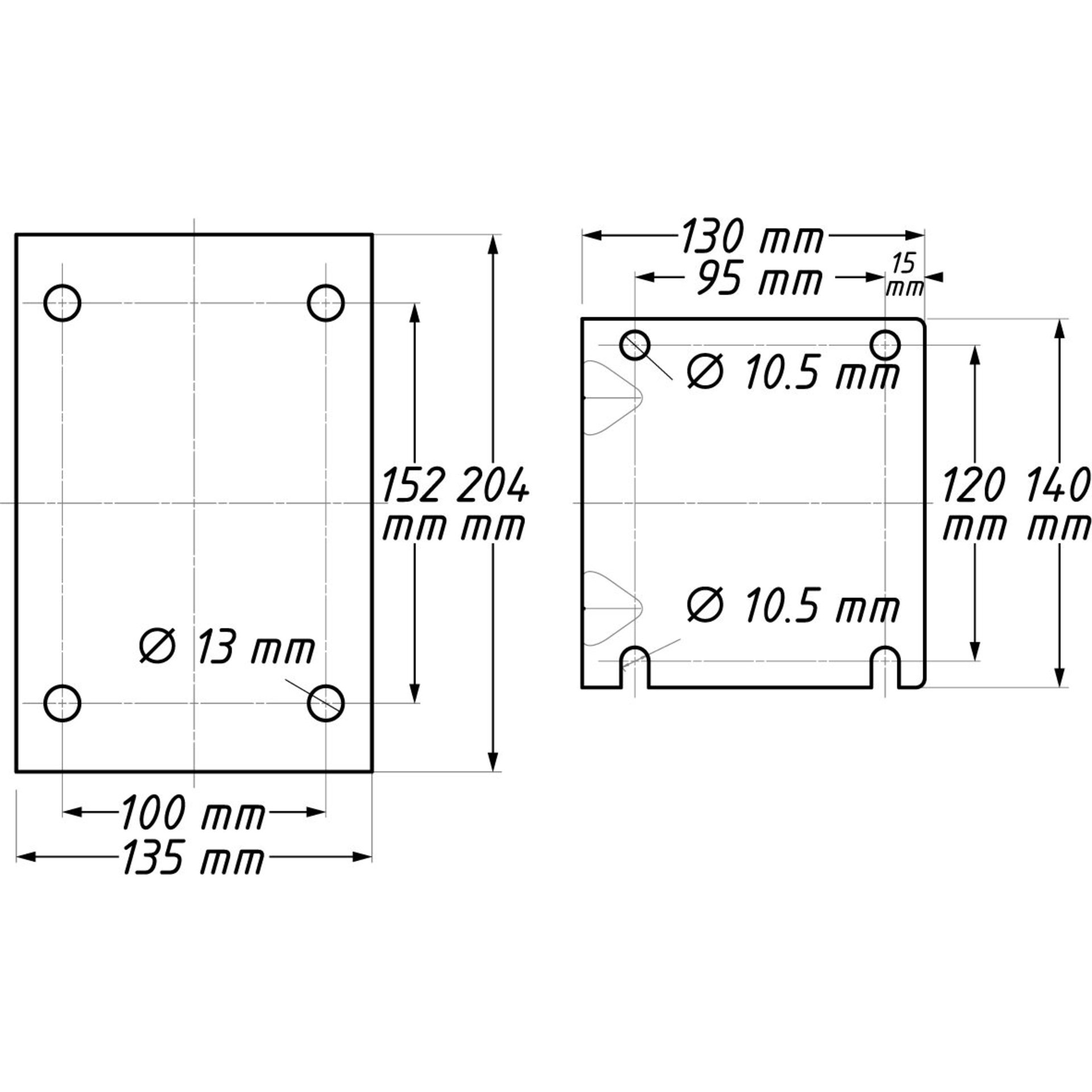

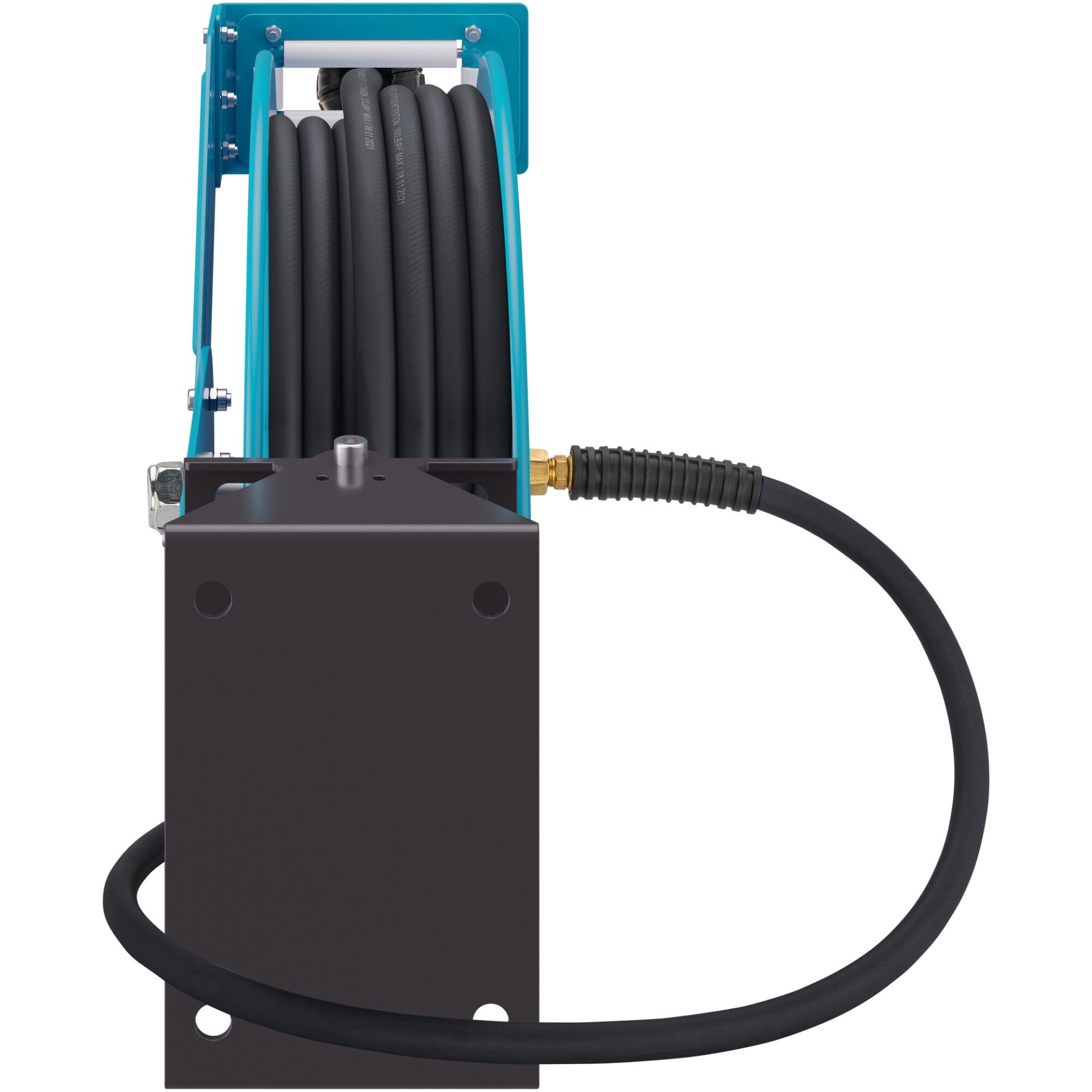

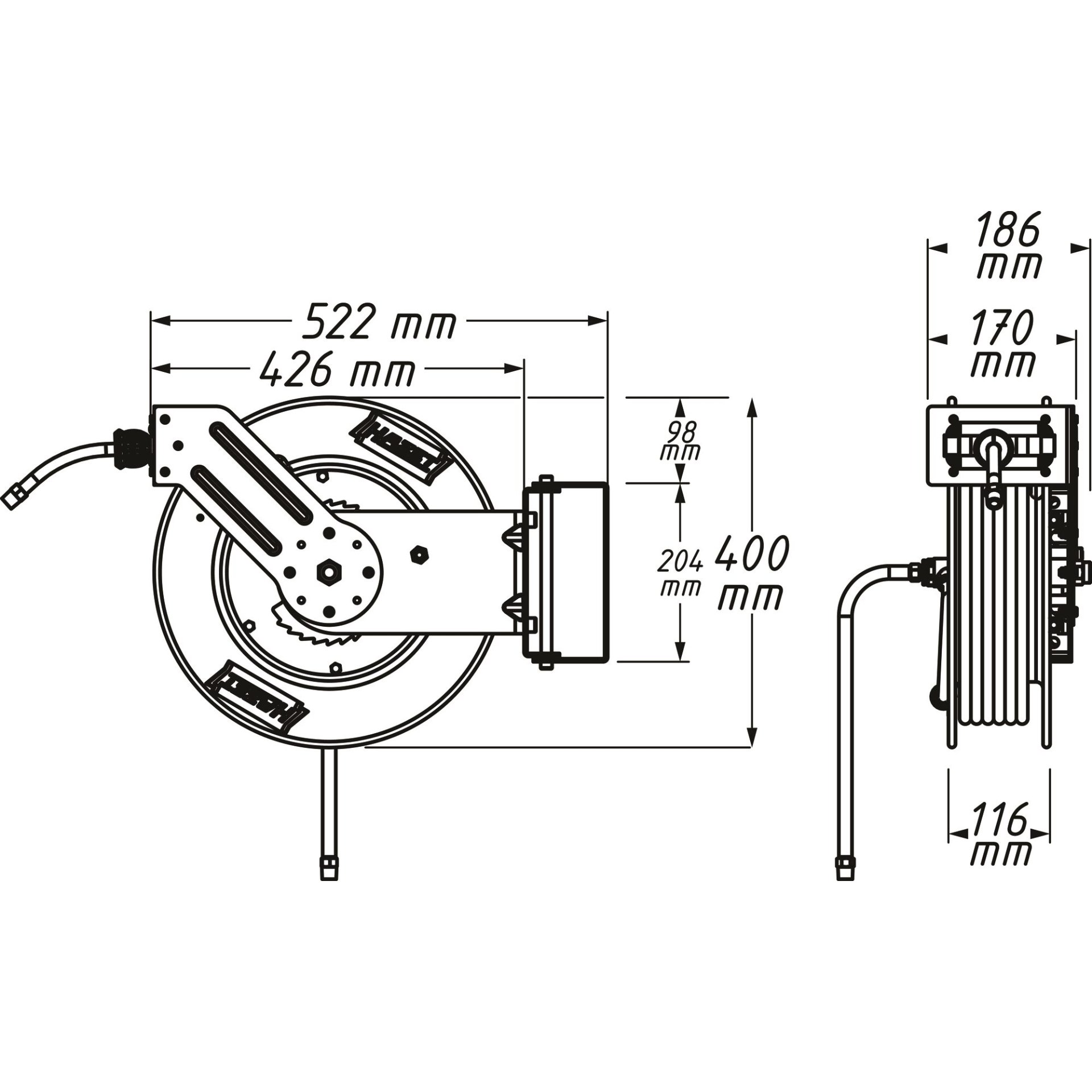

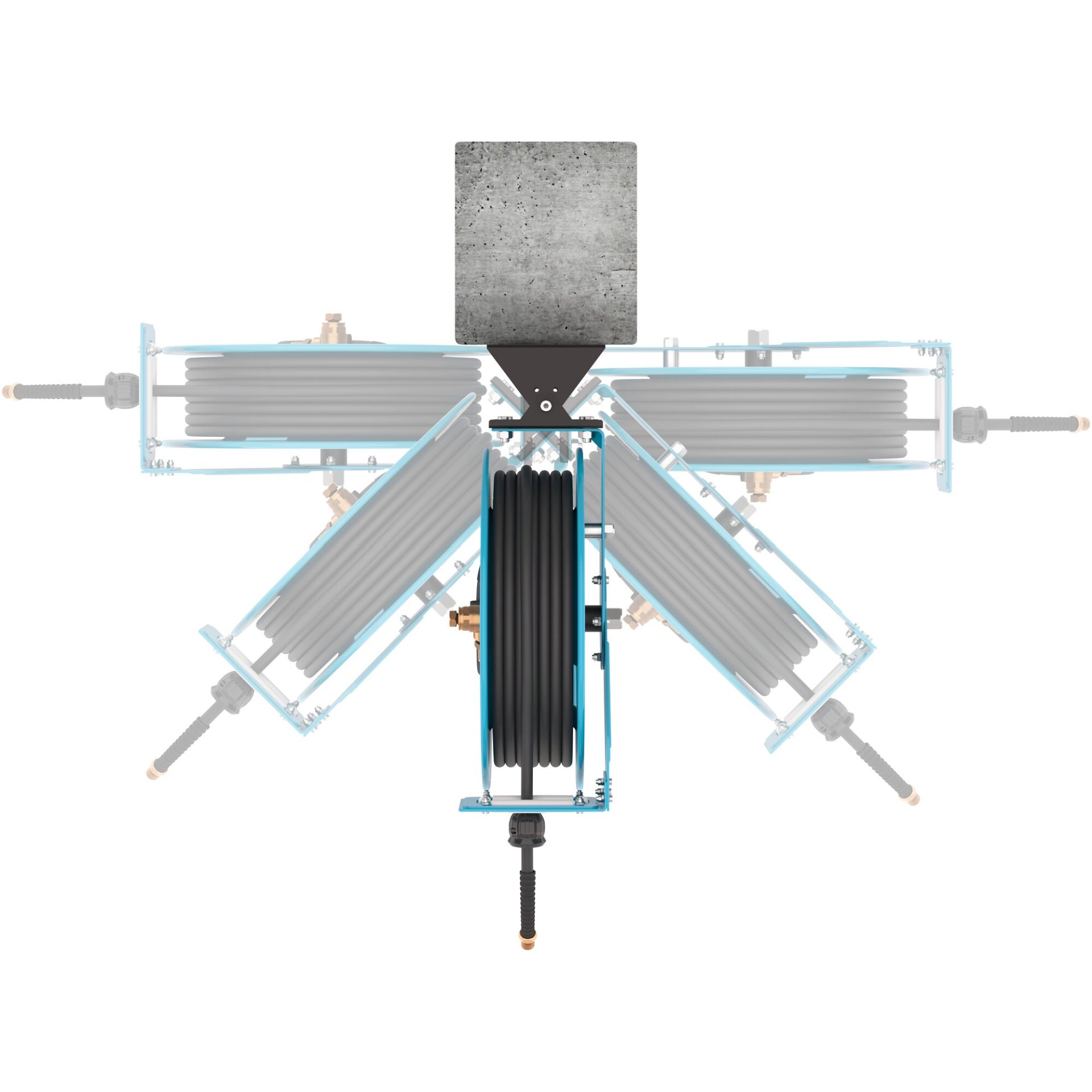

Application: - Automatic hose reel offers tidiness in the workshop – hose not left lying around, thus reducing the risk of accidents. • Robust steel design with ball-bearing guiding rails. • Inside diameter of the hose: 10 mm. • For compressed air. • German air connection nipple for air inlet (9000-015). • End stop. • Spring return with ratchet locking holders. • Hybrid polymer hose, black. • Integrated roller inlet. • Swivel base – Maximum swivel range: 180°. • Open design against accumulation of dirt. • Visual inspection of the hose. • Length of connection hose: 2 m. • Installation via metal bracket or swivel base (included). • Drill template on cardboard packaging for easy installation. • Dimensions: 400 x 186 x 522 mm (Including swivel base). • Can be used with HAZET safety clutch 9000-061. • Air connection inlet: Outside thread 16.41 mm (3/8″). • Air connection outlet: Outside thread 16.41 mm (3/8″). • Hose length: 20 m. • Max. working pressure [bar]: 12 bar. • Dimensions / length: 400 mm x 186 mm x 426 mm. • Net weight: 11.68 kg. • Temperature range: -40°C – 60°C.

Features

Features
Branche	Industrie
Länge	400 mm
Maße	400 mm x 186 mm x 426 mm
Netto-Gewicht (g)	11680 g
Netto-Gewicht (kg)	11.68 kg
Zubehör	9000-015
Bezeichnung Produktgruppe	Druckluft-Schlauch
Luftanschluss Auslass	Außengewinde 16,41 mm (3/8")
Luftanschluss Einlass	Außengewinde 16,41 mm (3/8")
Produktempfehlung	9000-061
Schlauch-Innendurchmesser	10 mm

Downloads

Manufacturer

HAZET-Werk, Hermann Zerver GmbH & Co. KG
Güldenwerther Bahnhofstr. 25-29
42857 Remscheid
02191/792-0
www.hazet.de
inland.handel@hazet.de
