Description

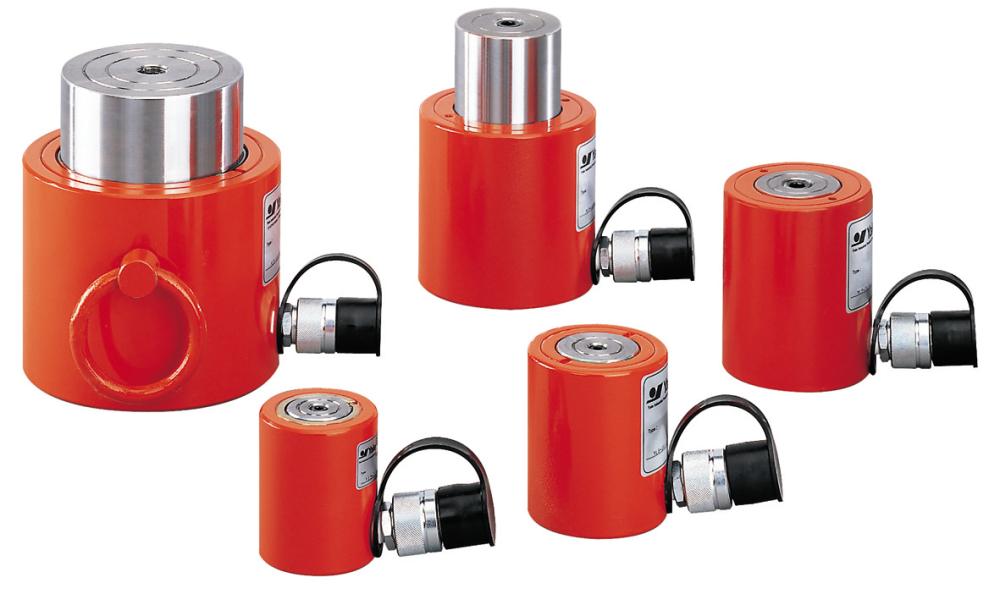

Die hydraulischen Flach- und Kurzhubzylinder sind einfach wirkend, mit Federrückzug.
• Betriebsdruck: 700 bar
• Niedrige Bauweise: besonders flach, für den Einsatz an schwer zugänglichen Stellen, z. B. in Stahlbau, Schwerindustrie, Kraftwerken, Bauwesen, Anlagenbau
• Führung: Bronzeführung der Kolbenstange
• Gehäuse und Kolben: Chrom-Molybdänstahl, vergütet
• Befestigungsgewinde: metrisch
• Lieferumfang: inklusive Kupplungsmuffe(n), Staubkappe und Druckstück, größere Zylinder mit Tragegriffen/Trageösen
• Auf Anfrage: Zylinder mit Druckkräften bis 1000 kN (100 t) lieferbar
Features
| Bauhöhe eingefahren | 91 mm |
|---|---|
| Druckkraft max. | 1000 kN |
| Gewicht ca. | 16,0 kg |
| Herstellerartikelnummer | N11300633 |
| Herstellername | COLUMBUS McKINNON |
| Hub | 15 mm |
| Kolbenstangen-Ø | 120 mm |
| Made in Germany |
|
| Markenname | Yale |
| Öldruck bei Nennkraft | 700 bar |
| Ölvolumen | 215 cm³ |
| WGNr. | 215 |
| Zylinderaußen-Ø | 170 mm |
| Zylindergröße Druckkraft | 100 t |
Manufacturer
Columbus McKinnon Hebetechnik GmbH
Wiener Str. 132a
2511 Pfaffstätten
0043-2252/22133-0
www.cmco-hebetechnik.at
zentrale@cmco.at
