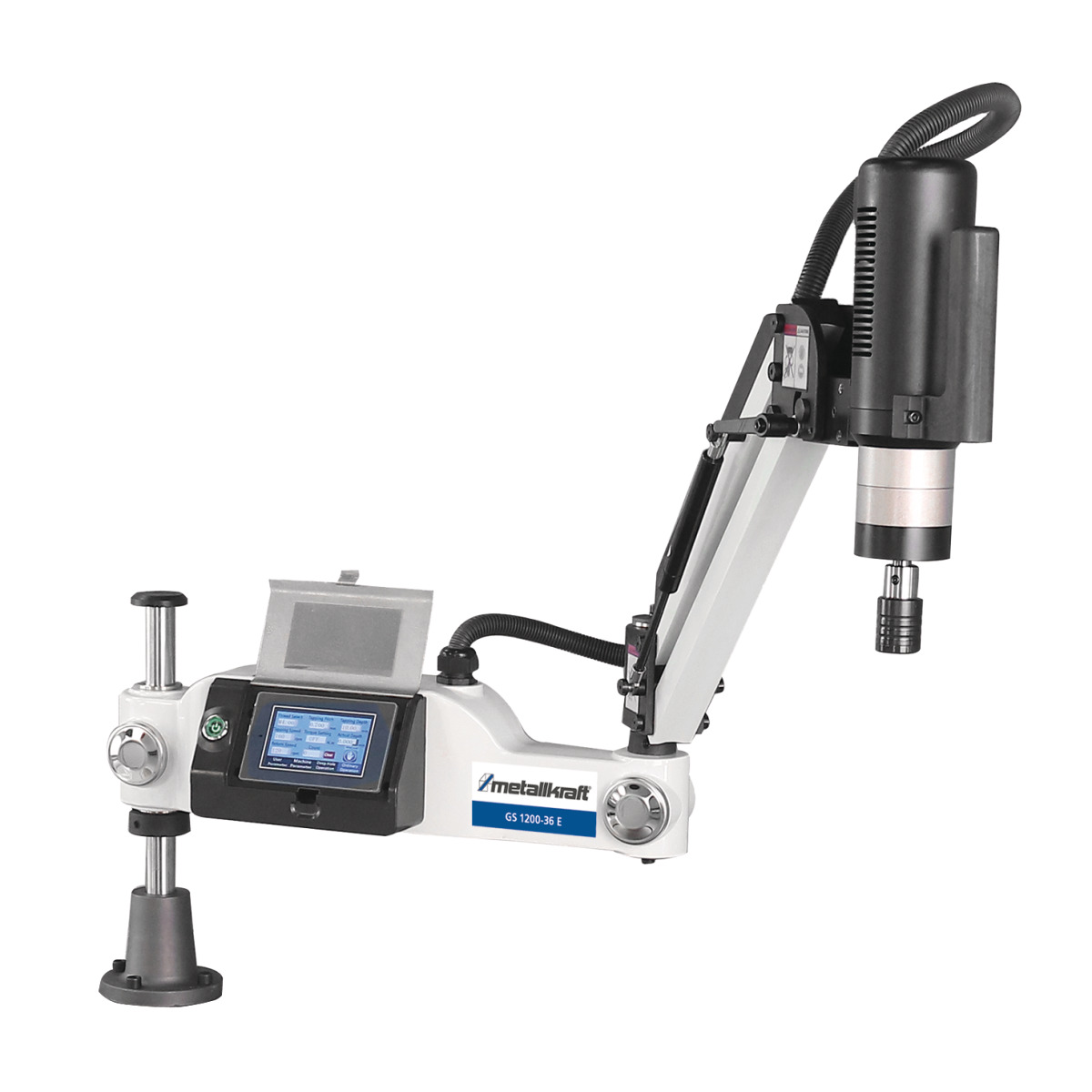

Description

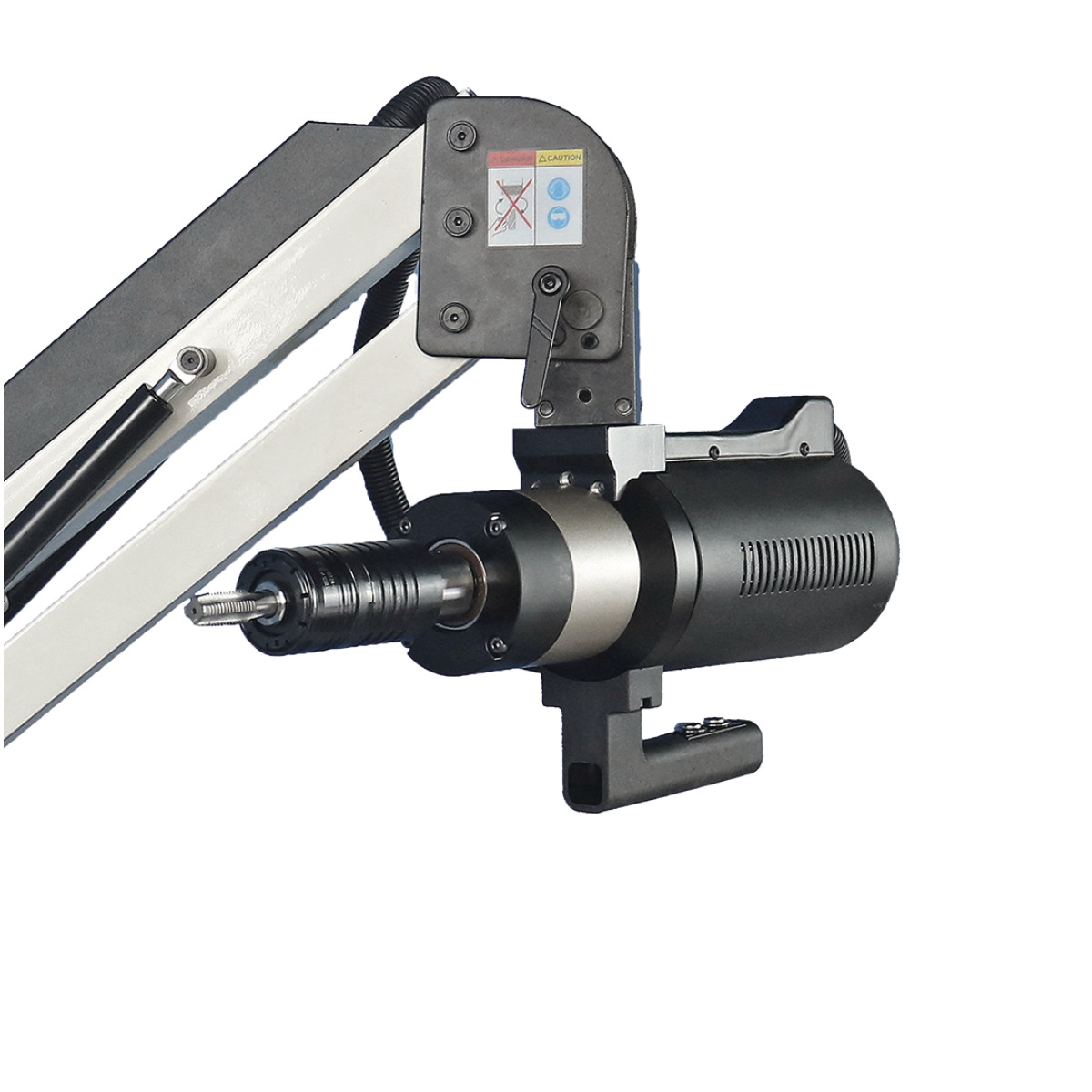

- Maschinenkopf von 0 bis 90 Grad schwenkbar
- Schnellwechseleinsatz mit Rutschkupplung für sicheres Gewindeschneiden ohne Bruchgefahr
- Rechts-Links-Lauf am Maschinenkopf wählbar

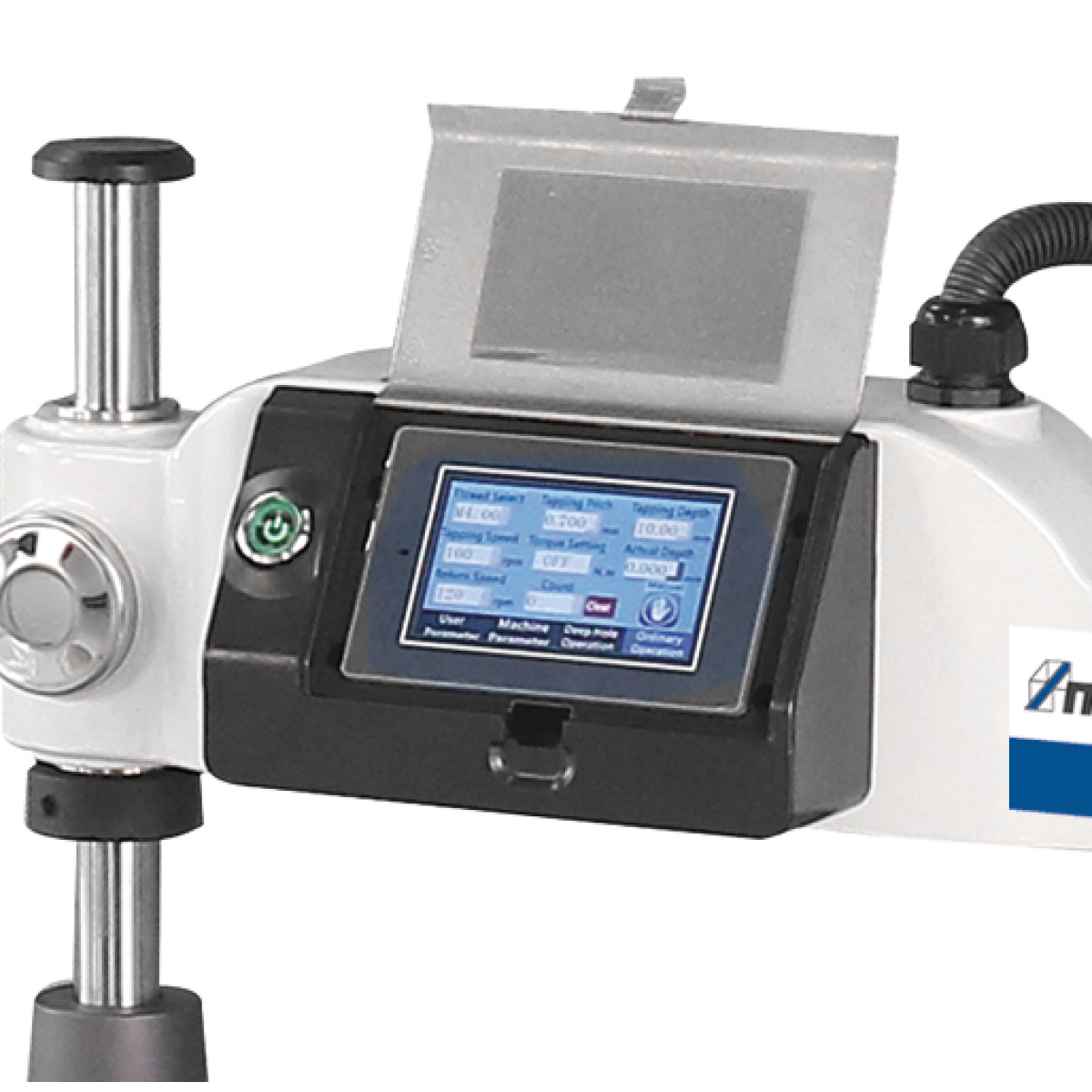

- Einstellung von Gewindegröße, Drehzahl, Steigung und Schneidtiefe über Touchscreen am Schwenkarm
- Manueller Modus: Nach Erreichen der eingestellten Schneidtiefe stoppt die Spindel automatisch, Vor- und Rücklauf muss manuell aktiviert werden.
- Automatischer Modus: Nach Erreichen der eingestellten Schneidtiefe wechselt die Maschine automatisch vom Vor- in den Rücklauf – Ideal für das Gewindeschneiden von mehreren Sacklöchern

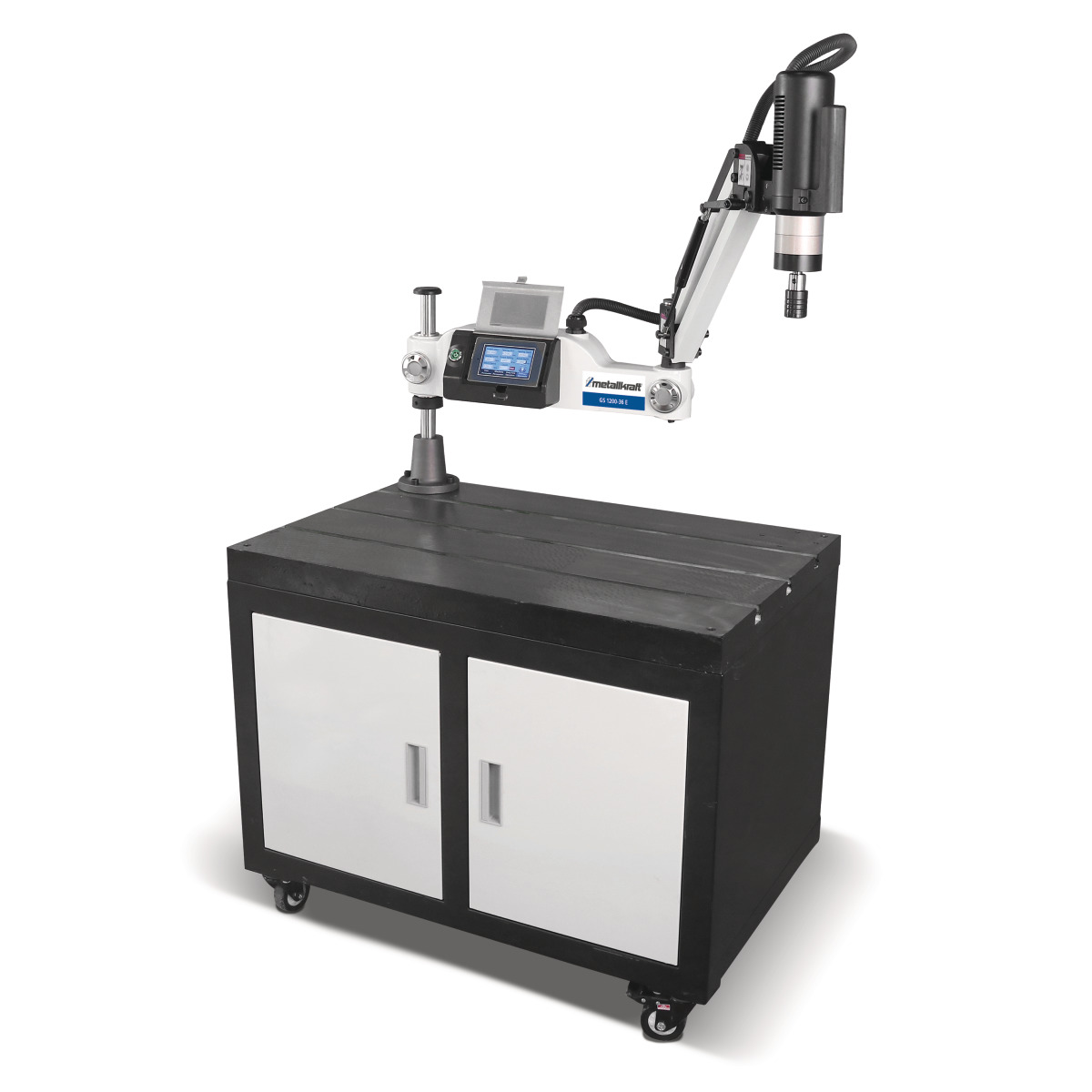

- Unterbau mit Aufspanntisch und Fahrwerk im Zubehör erhältlich
- je 1 Gewindebohrfutter GT24 M6, M8, M10, M12, M14, M16, M18, M20, M22-24, M27, M30, M33, M36
Features
| Anschlussspannung | 230 V |
|---|---|
| Antrieb | elektrisch |
| Auslegerradius | 1200 mm |
| Breite/Tiefe (Produkt) ca. | 100 mm |
| Drehzahl max. | 156 min¯¹ |
| Gewicht (netto) ca. | 42 kg |
| Gewicht (Netto) ca. | 42 kg |
| Gewindebohrungen bei 400 N/mm² | M6 – M36 |
| Höhe (Produkt) ca. | 700 mm |
| Länge (Produkt) ca. | 1400 mm |
| Leistung Antriebsmotor | 1,2 kW |
| Netzfrequenz | 50 Hz |
| Schalldruckpegel Lp | 73 dB(A) |
| Schneidrichtung | rechts/links |
| Winkelverstellung | 0 – 90 ° |
Ersatzteile
Zubehör
Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26
96103 Hallstadt
0951/96555-0
www.stuermer-maschinen.de
info@stuermer-maschinen.de
Safety regulations
General safety instructions
• All electrical connections must be made by an authorized electrician
• Machines may only be operated with functioning safety devices
• Only allow trained personnel to operate the machine
• Maintenance and repair work may only be carried out by trained personnel
• Never work under the influence of illnesses that impair concentration, medication, drugs or alcohol
• Machines must always be disconnected from the power supply before maintenance or repair work
• Wear tight-fitting clothing and remove all objects that could cause you to get caught in machines.
• Use original spare parts and accessories
• Keep body parts away from moving parts of the machines.
• In the event of a malfunction or unusual behavior, operation must be stopped immediately until the cause has been clarified and the error has been rectified.
• Avoid overloading machines. Always work within the permitted performance range (technical data)
• Always ensure that no one is in the danger areas of the machines.
• Before using the machines, make sure that the safety devices are working properly
• Read the operating instructions and familiarize yourself with the safety devices.
• Keep the work area clean and tidy to minimize sources of danger
• Do not make any changes to machines
• Wear hearing protection to protect your hearing
• Wear appropriate safety gloves when handling chemicals or sharp objects
• Wear appropriate safety shoes to protect your feet
• Wear appropriate safety clothing
• Always observe and follow all safety instructions that are attached to the product or included with the product.
