Description

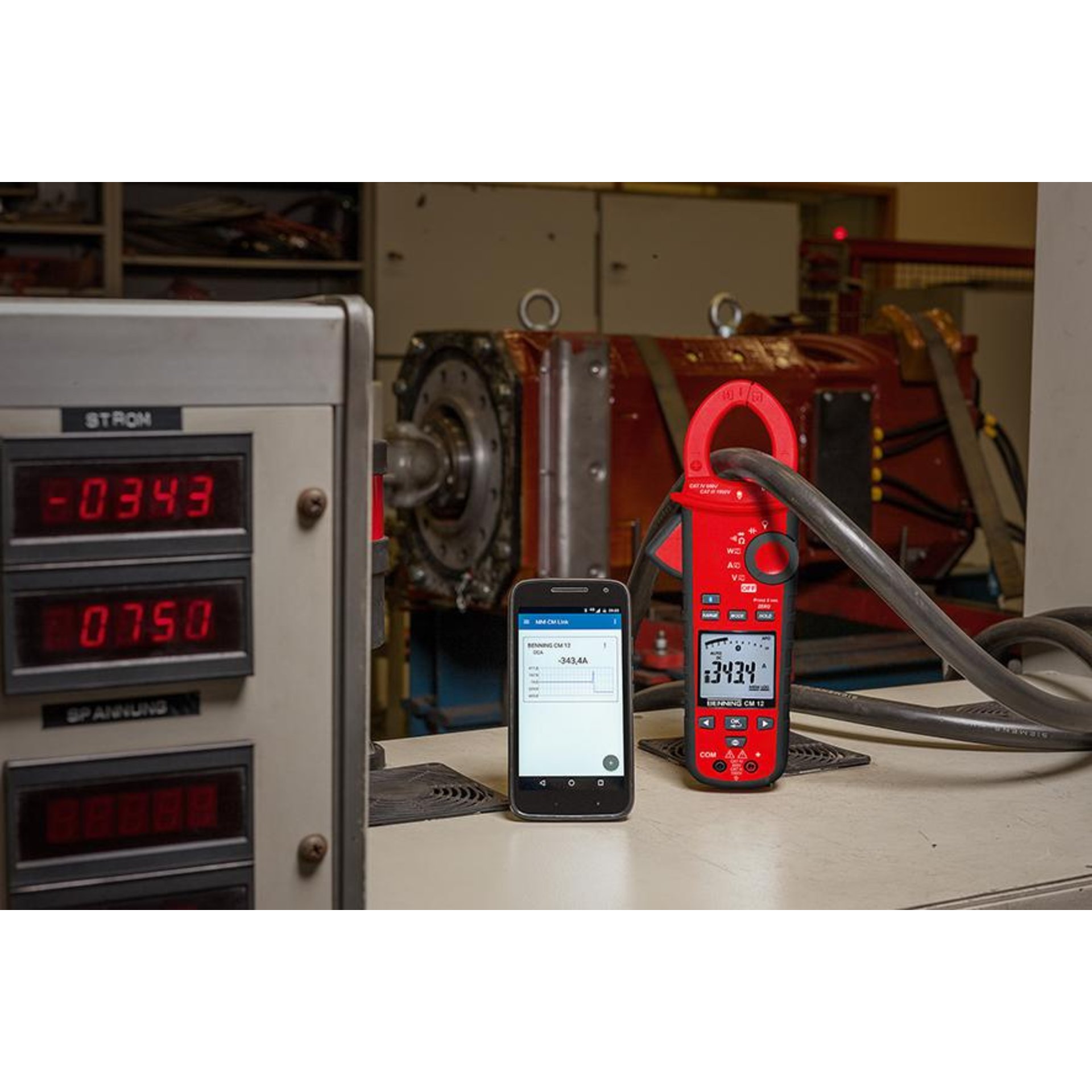

Ausführung: Gehäuse aus schlag- und bruchfestem Kunststoff mit Softgrip-Einlagen und automatischer Abschaltfunktion sowie Bluetooth® 4.0-Schnittstelle. Präzise durch Echt-Effektivwertmessverfahren TRUE RMS. Mit Voltsensor und Tiefpassfilter (HFR). Einschaltstrommessung (INRUSH) von Motoren und Beleuchtungsanlagen. Kostenlose iOS- und Android-App zur Datenanbindung an Smartphone/Tablet.
Anwendung: Zur sicheren Strommessung bei isolierten Kabeln, ohne die Isolierung zu entfernen oder zu beschädigen.
CM 12. Datenlogger mit 9999 Messwerten und einstellbarem Messintervall (1–600 s), Speicher mit 1000 Messwerten. Gleichzeitige Erfassung von Strom (A) und Spannung (V) zur Wirkleistungs- (W) und Leistungsfaktormessung, Oberwellenmessung zur Netzbeurteilung, Prüfung der Drehfeldrichtung, zweipolig. Lieferung inkl. Messleitungen, Schutztasche und Batterien.
Hersteller: Benning Elektrotechnik u. Elektronik GmbH & Co.KG, Münsterstr. 135-137, 46397 Bocholt, DE, +492871930, info@benning.de
Features
| Anzeige | LCD |
|---|---|
| Batteriebestückung | 6 x Micro AAA/LR03 |
| Durchgang/Diode | ja/ja |
| Frequenz | 0,01 Hz–10 kHz |
| Gleichspannung | 10 mV–1000 V |
| Gleichstrom | 10 mA–600 A |
| Kapazität | 1 nF–4 mF |
| Marke | BENNING |
| Markenname | Benning |
| Messkategorie | CAT IV 600 V |
| Messverfahren | TRUE RMS |
| Messwertspeicher | HOLD, PEAK, MAX/MIN,AVG |
| Modell | CM 12 |
| Schutzart | IP30 |
| Wechselspannung | 10 mV–1000 V |
| Wechselstrom | 10 mA–600 A |
| Widerstand | 0,1 Ohm–100 kOhm |
| Zangenöffnung | 33 mm |
Manufacturer
Benning Elektrotechnik u.Elektronik GmbH & Co. KG
Münsterstr 135-137
46397 Bocholt
02871/93-0
www.benning.de
info@benning.de
