Description

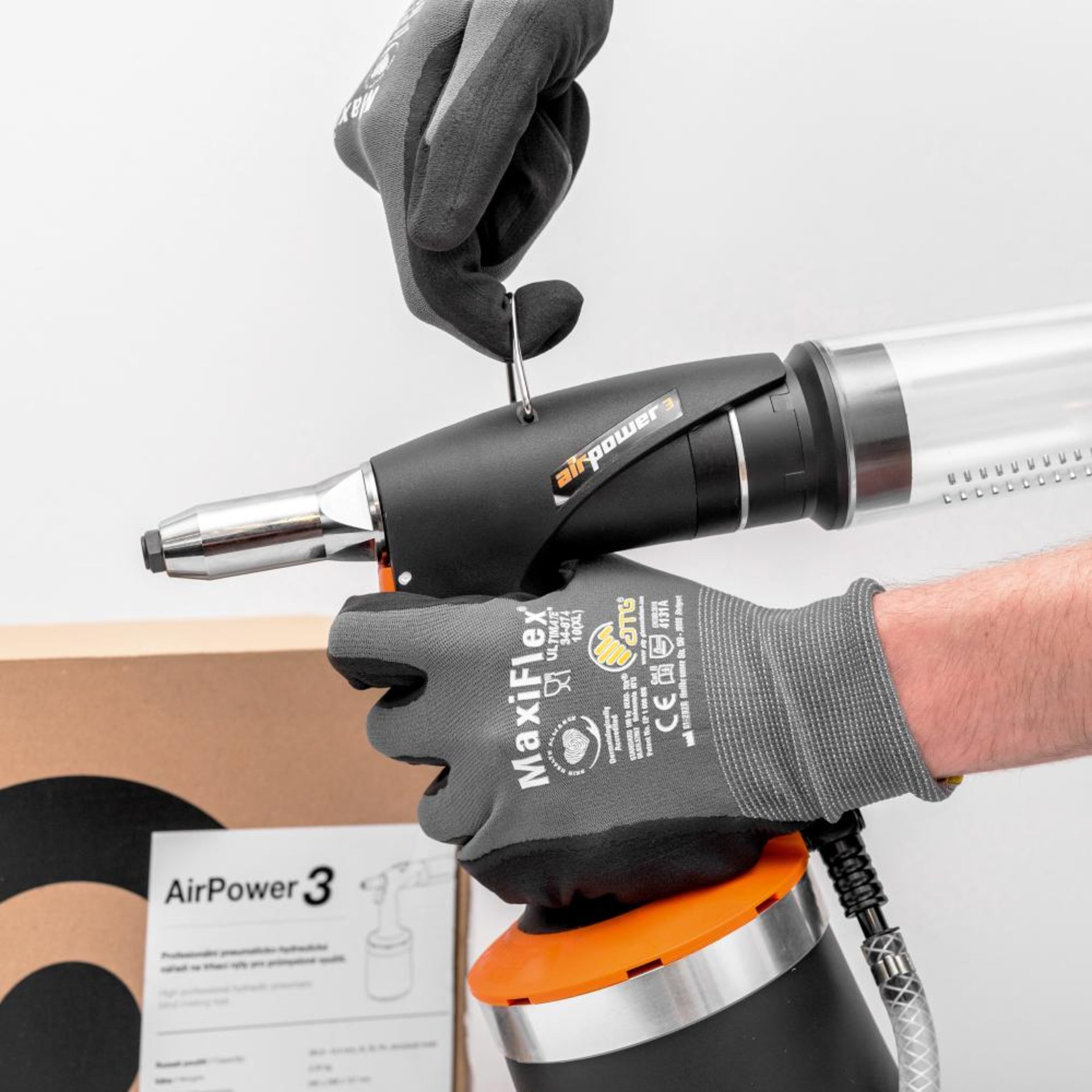

Ausführung: Mit integrierter Schutzvorrichtung gegen herausfliegende Dorne. Die Aufnahmen für die Wechsel-Mundstücke befinden sich im Geräteboden. Die für den Setzvorgang verwendete Druckluft wird auch zum Absaugen des Restdornes genutzt. Eine Beeinträchtigung durch den Schlauch wird durch den hinten liegenden 360° drehbaren Anschluss verhindert. Die Nietansaugung kann nur bei Anheben des Gerätes eingeschaltet werden. Der Aufhängebügel ist versenkbar am Kopf angebracht. Zudem verfügt das Gerät über einen abgestimmten Gerätehub für schnelle Arbeitsfolge, einen abnehmbaren Nietdorn-Auffangbehälter sowie einen handgerechten Griff.
Anwendung: Für Blindniete Ø 4,8–6,4 mm aller Werkstoffe, Ø 4,8–6,4 mm aus Stahl, Ø 4,8–6,4 mm aus Aluminium, Ø 4,8–6 mm GO-BULB II, Ø 4,8 mm GO-INOX II, Ø 4,8–6,4 mm GO-LOCK, Ø 4,8–6,4 mm M-LOCK, Ø 6,4 mm H-LOCK, Ø 4,8–6,4 mm PREMIUM-LOCK.

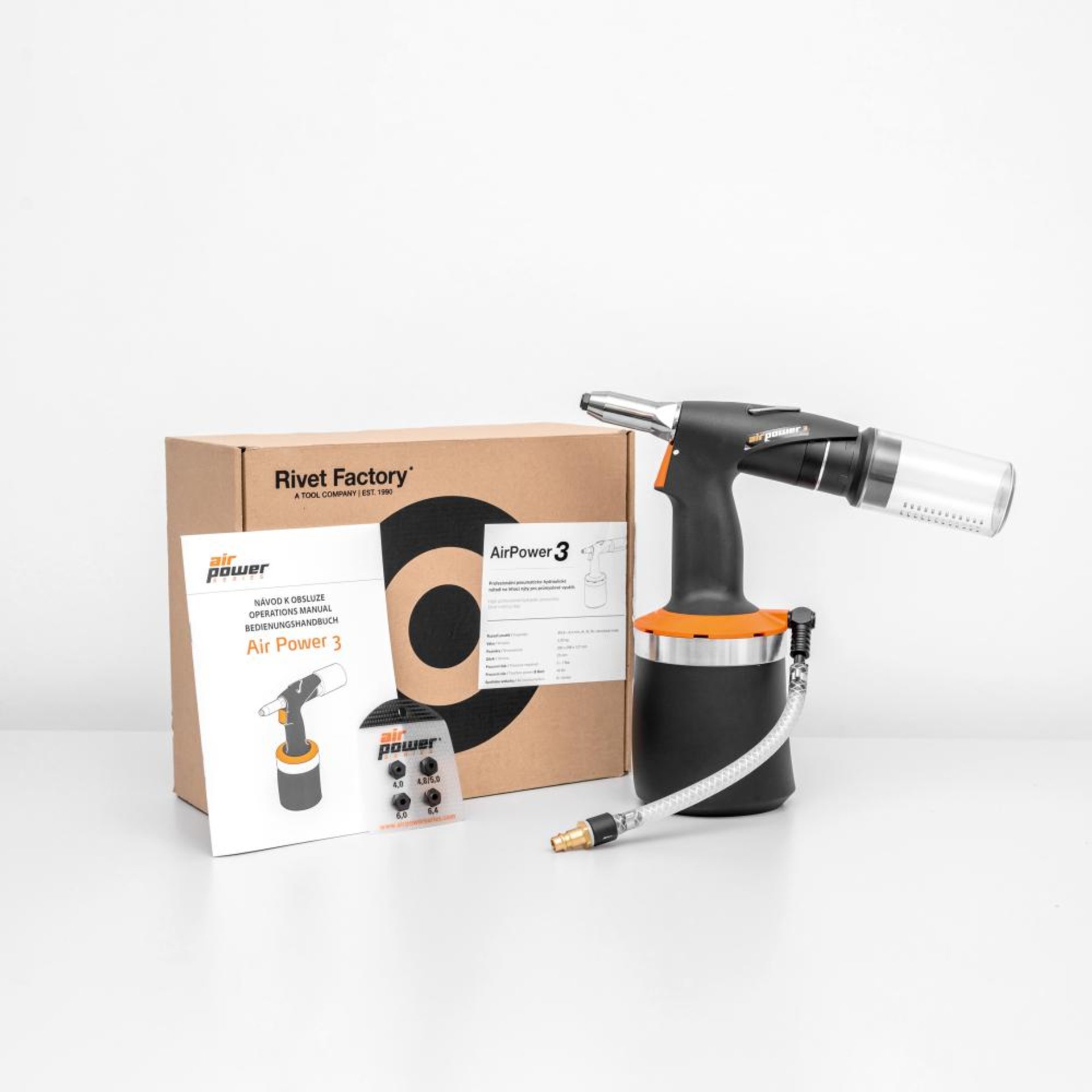

Lieferumfang: Blindnietpistole AIRPOWER 3, Ø 4; 4,8–5; 6; 6,4 mm GO-LOCK, Spannbacken 3-teilig, Auffangbehälter, Werkzeug SW 12.
Mundstück-Zuordnung:
Niet-Ø: 4,8 und 6,4; Niet-Werkstoffe: Alu; Stahl ; Edelstahl
Hersteller: Goebel GmbH, Mühlenstr., 40699 Erkrath, DE, +492112450000, info@goebel-group.com
Features
| Gerätehub | 28 mm |
|---|---|
| Luftverbrauch pro Niet | 5 l |
| Setzkraft bei 6 bar | 16500 N |
Manufacturer
Goebel GmbH - Verwaltung
Mühlenstraße 2-4
40699 Erkrath
Telefon: +49 (0) 211 24 50 00 0
Safety regulations
General safety instructions
• All electrical connections must be made by an authorized electrician
• Machines may only be operated with functioning safety devices
• Only allow trained personnel to operate the machine
• Maintenance and repair work may only be carried out by trained personnel
• Never work under the influence of illnesses that impair concentration, medication, drugs or alcohol
• Machines must always be disconnected from the power supply before maintenance or repair work
• Wear tight-fitting clothing and remove all objects that could cause you to get caught in machines.
• Use original spare parts and accessories
• Keep body parts away from moving parts of the machines.
• In the event of a malfunction or unusual behavior, operation must be stopped immediately until the cause has been clarified and the error has been rectified.
• Avoid overloading machines. Always work within the permitted performance range (technical data)
• Always ensure that no one is in the danger areas of the machines.
• Before using the machines, make sure that the safety devices are working properly
• Read the operating instructions and familiarize yourself with the safety devices.
• Keep the work area clean and tidy to minimize sources of danger
• Do not make any changes to machines
• Wear hearing protection to protect your hearing
• Wear appropriate safety gloves when handling chemicals or sharp objects
• Wear appropriate safety shoes to protect your feet
• Wear appropriate safety clothing
• Always observe and follow all safety instructions that are attached to the product or included with the product.
